(3) Rewinder motor driver (7010R only)

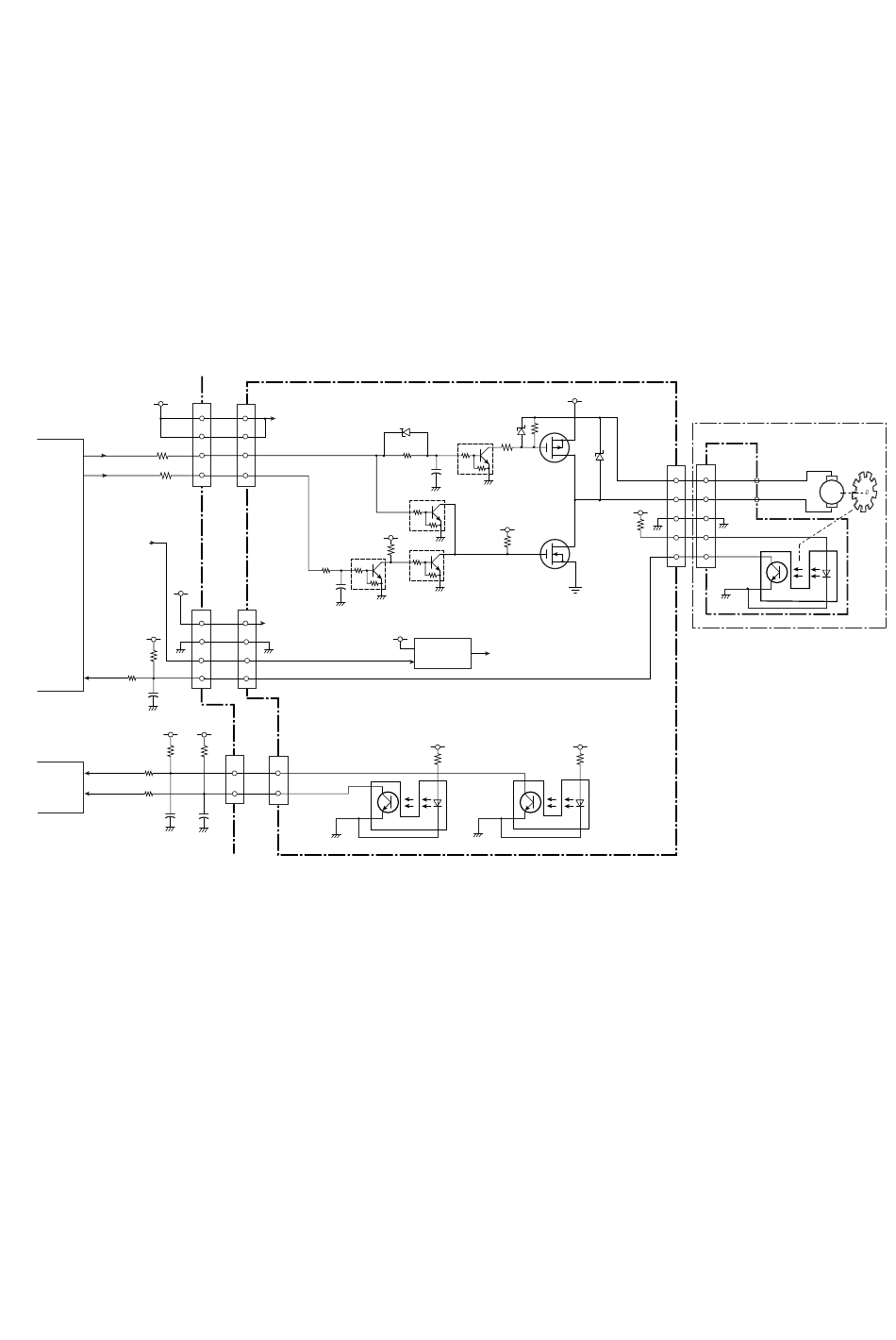

This is a driving circuit to drive the rewinder motor (DC motor). The following illustration shows
a simplified circuit.
Rewinder motor ON/OFF status is controlled by DCMTR1 and DCMTR0 signals sent from pins
35 and 40 of U1 (CPU).
Motor ON:
Motor OFF (free): DCMTR1=L and DCMTR0=L
Braking:
When DCMTR1 signal is "Low", Q502 turns OFF and Q501 turns OFF. When DCMTR0 signal
is "High", Q506 turns ON, Q505 turns OFF and, if Q503 is OFF (DCMTR1 signal is "Low"),
Q504 turns ON and the rewinder motor is turned.
+24.0V
J15
U1 CPU
R157
DCMTR1
PCS7
35
R156
DCMTR0
PCS4
40
MTREF
(+RW Control)
+5.0V
J16
+3.3V
R163
MTENC
J15
P72
176
R165 C99
+3.3V +3.3V
U14
R153
Custom IC
R154
R158
HPSENS0
SW6
84
R159
85
SW5
HPSENS1
C96
C97
[Main PCB]
Rewinder Full detection:
The form sensor (photo interrupters PS501 and PS502) on the SA, Rewinder PCB is used to
detect the diameter of wound liner (or the amount of liner) at the flange in the following four
stages. As the diameter increases, the Measure Flap Plate turns backward and engages with
PS501 and PS502.
1st stage:
2nd stage:
3rd stage:
4th stage (Full): PS501: OFF, PS502: OFF
The 1st to 3rd stages are used to control the rewinder motor speed as mentioned on the next
page. The 4th stage is the Full state.
DCMTR1=L and DCMTR0=H
