2-3. Operation Panel

2-3-2. Menu setup mode

You can set the menu according to your requirements.
To enter menu setup mode, press the [MENU] key while "On Line Ready" is displayed on the LCD.
For details, refer to the User's Manual.

2-3-3. Test mode

The following Test modes are available:
Operation
[FEED] + "Power ON"
[STOP] + "Power ON"
[MENU] + "Power ON"

(1) Self print mode

You can check the printing quality by printing the built-in self print pattern.
This function is convenient to obtain optimum printing while adjusting the media thickness with
the Media Thickness Adjustment screw and media width with the Media Width Adjustment
knob.
For label (prints 2 labels):
1. While pressing and holding the [FEED] key, turn on
the power.
2. Wait until the POWER LED turns on and the LCD
indicates "Self Print Mode" "Label Media", and then
release the [FEED] key.
The printer enters self print mode and the label is fed.
Self test printing is made for two labels, and then
printing stops.
3. To repeat self test printing, press the [FEED] key
again.
To exit from self print mode: Turn off the power.
For continuous media:
1. While pressing and holding the [FEED] key, turn on
the power.
2. Wait until the POWER LED turns on and the LCD
changes from "Self Print Mode" "Label Media" to "Cont.
Media", and then release the [FEED] key.
The printer enters self print mode and the label is fed
for self test printing. After printing it stops.
3. To repeat self test printing, press the [FEED] key again.
To exit from self print mode: Turn off the power.
Description
Enters self print mode.
Enters hex dump mode.
Enters menu list printing mode.
2-38

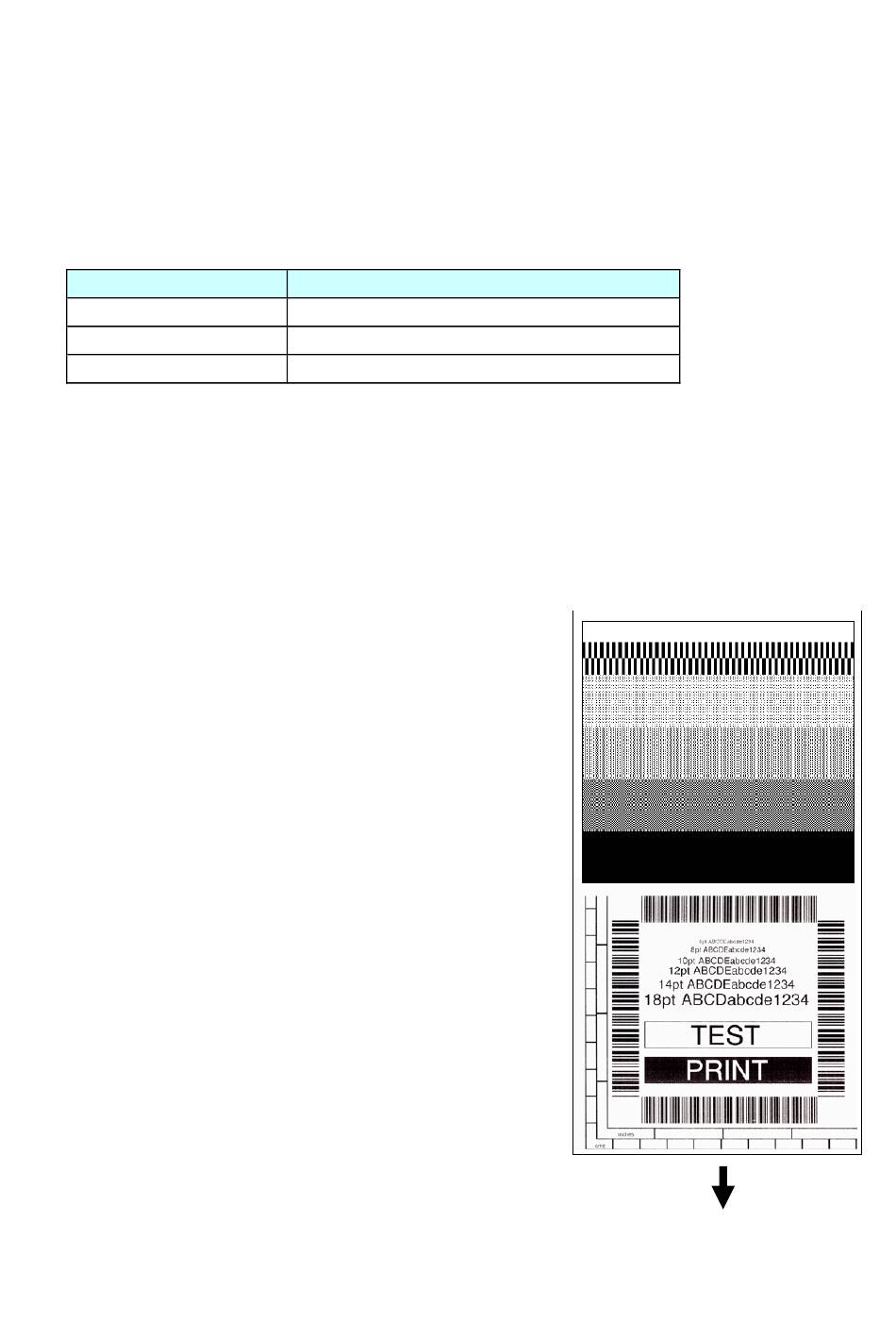

[Print pattern in self print mode]
Media feed direction
<Example of 7010/7010R>
