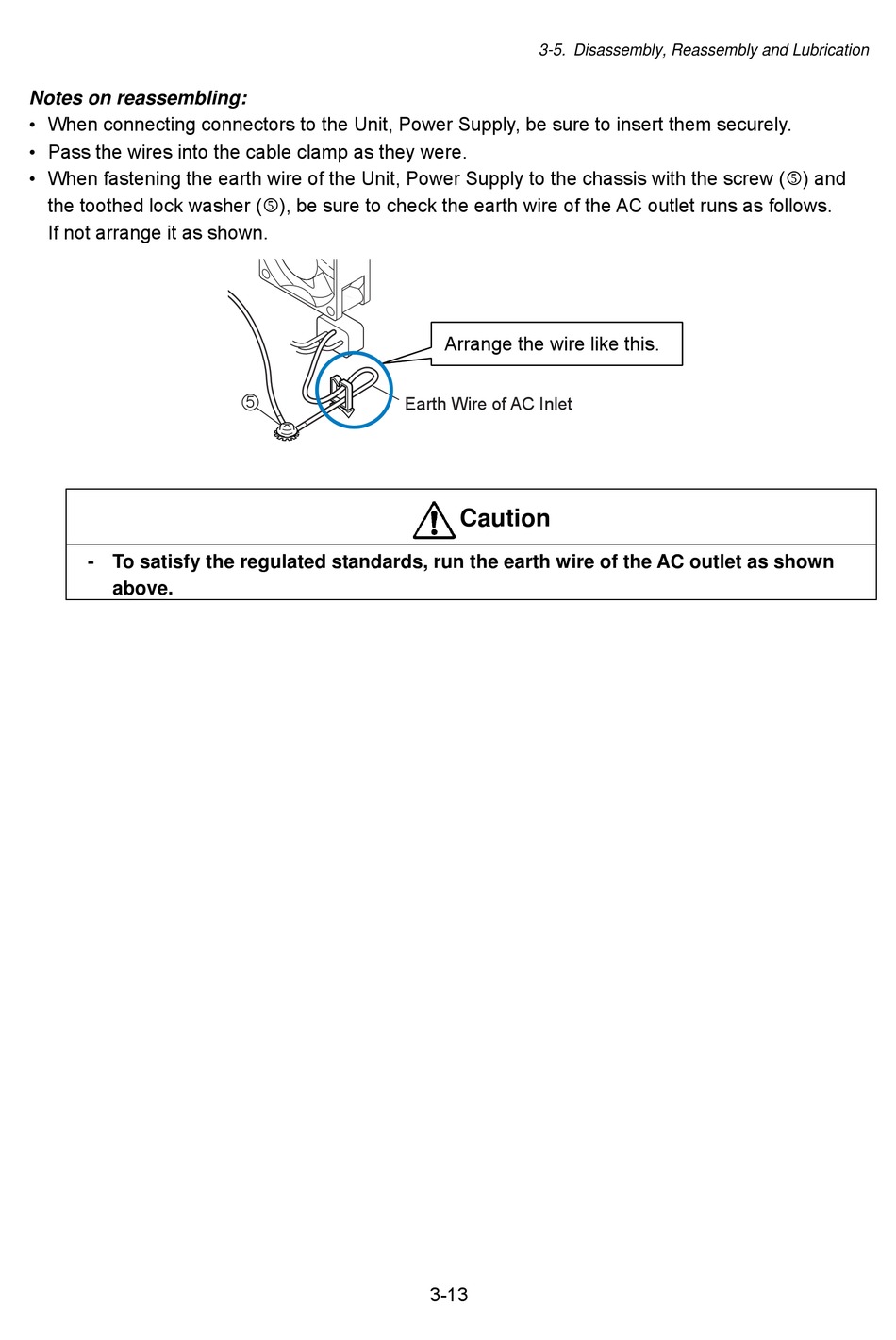

Tally Dascom 7010 Series Maintenance Manual page 87

Notes on reassembling:
• When connecting connectors to the Unit, Power Supply, be sure to insert them securely.
• Pass the wires into the cable clamp as they were.
• When fastening the earth wire of the Unit, Power Supply to the chassis with the screw (5) and
the toothed lock washer (5), be sure to check the earth wire of the AC outlet runs as follows.
If not arrange it as shown.
- To satisfy the regulated standards, run the earth wire of the AC outlet as shown
above.
5
Earth Wire of AC Inlet
3-5. Disassembly, Reassembly and Lubrication
Arrange the wire like this.
