2-1. Operation of Each Mechanism
(2) 7010R (Rewinder Part)

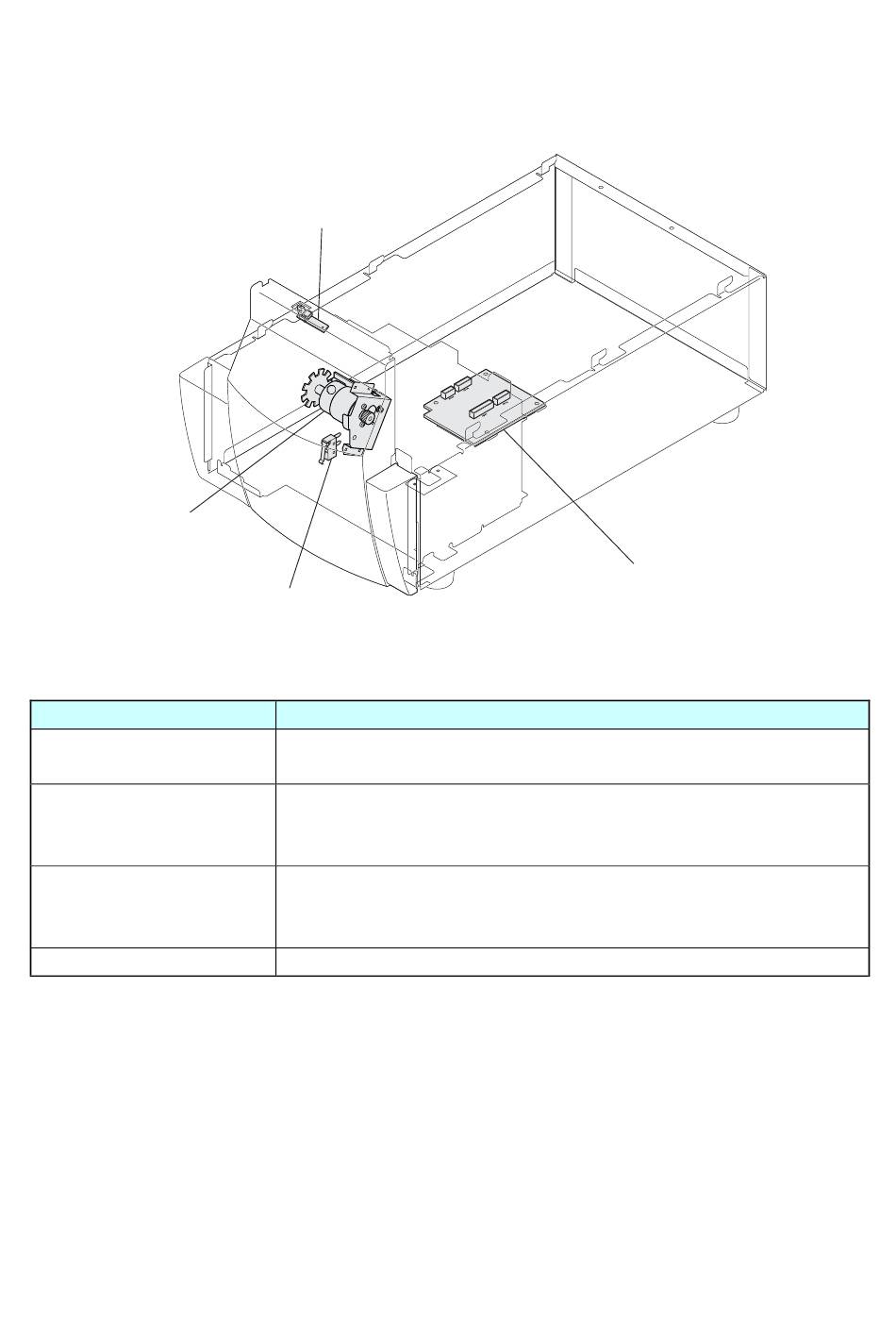

The following figure shows the locations of main electrical parts for 7010R (Rewinder part).
SA, Rewinder Motor
Part name
SA, Peel Sensor
SA, Rewinder Motor
SA, Interlock SW
(Rewinder Cover Open
Sensor)
SA, Rewinder PCB
SA, Peeler Sensor
SA, Interlock SW
This sensor is a photo reflector to detect the presence of peeled
label at the exit of the printer.
Rewinds the liner of the printed media. It consists of the rewinder
motor, motor control PCB and thermistor that detects the motor
temperature.
This is a mechanical switch to detect the open/close status of the
rewinder cover.
Controls the rewinder operation.
SA, Rewinder PCB
Description
2-6
