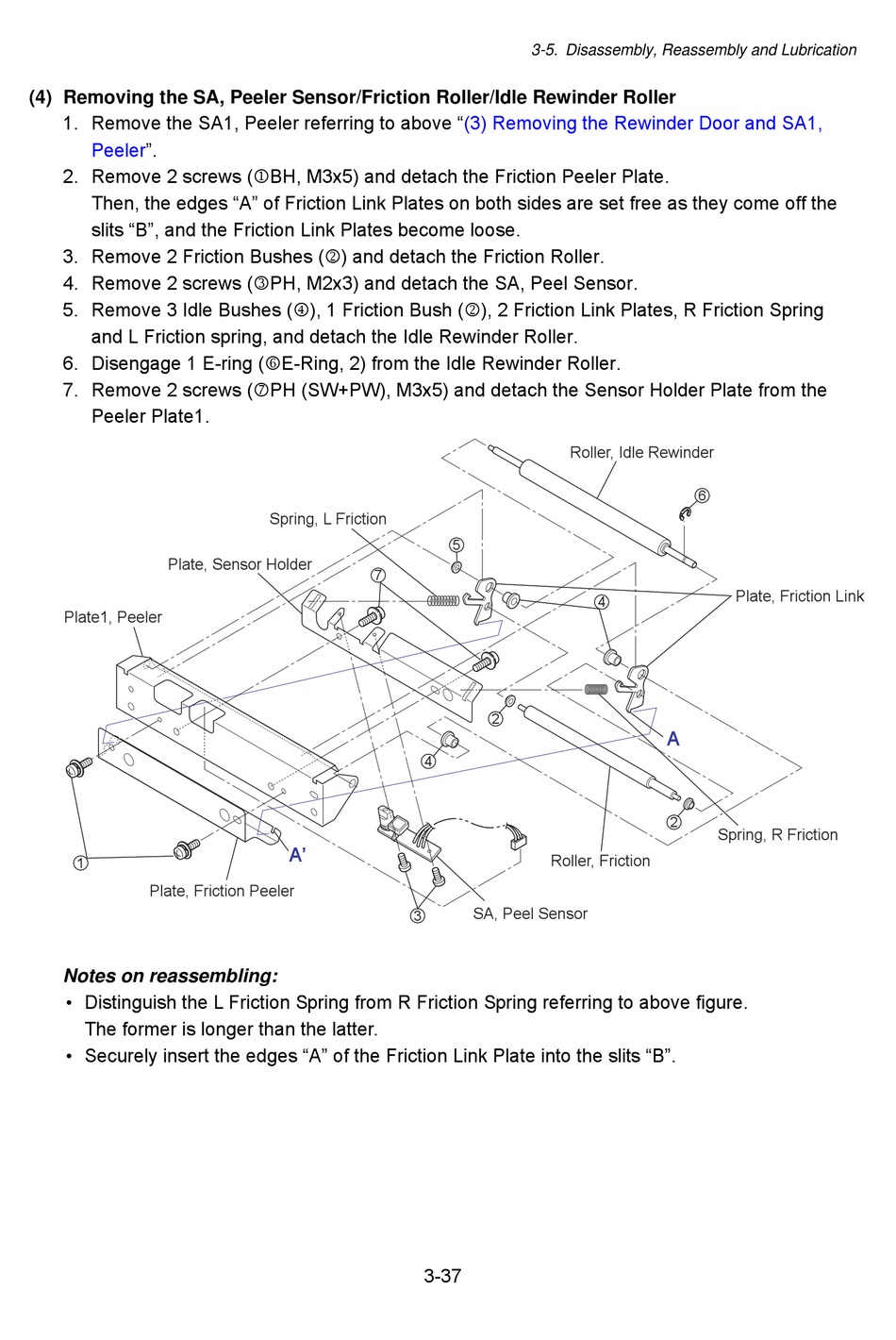

(4) Removing the SA, Peeler Sensor/Friction Roller/Idle Rewinder Roller
1. Remove the SA1, Peeler referring to above
Peeler".
2. Remove 2 screws (1BH, M3x5) and detach the Friction Peeler Plate.
Then, the edges "A" of Friction Link Plates on both sides are set free as they come off the
slits "B", and the Friction Link Plates become loose.
3. Remove 2 Friction Bushes (2) and detach the Friction Roller.
4. Remove 2 screws (3PH, M2x3) and detach the SA, Peel Sensor.
5. Remove 3 Idle Bushes (4), 1 Friction Bush (2), 2 Friction Link Plates, R Friction Spring
and L Friction spring, and detach the Idle Rewinder Roller.
6. Disengage 1 E-ring (6E-Ring, 2) from the Idle Rewinder Roller.
7. Remove 2 screws (7PH (SW+PW), M3x5) and detach the Sensor Holder Plate from the
Peeler Plate1.
Plate, Sensor Holder
Plate1, Peeler
1
Plate, Friction Peeler
Notes on reassembling:
• Distinguish the L Friction Spring from R Friction Spring referring to above figure.
The former is longer than the latter.
• Securely insert the edges "A" of the Friction Link Plate into the slits "B".
Spring, L Friction
7
4
A'
3
3-37
3-5. Disassembly, Reassembly and Lubrication
"(3) Removing the Rewinder Door and SA1,
Roller, Idle Rewinder
5
4
2
Roller, Friction
SA, Peel Sensor
6
Plate, Friction Link
A
2
Spring, R Friction
