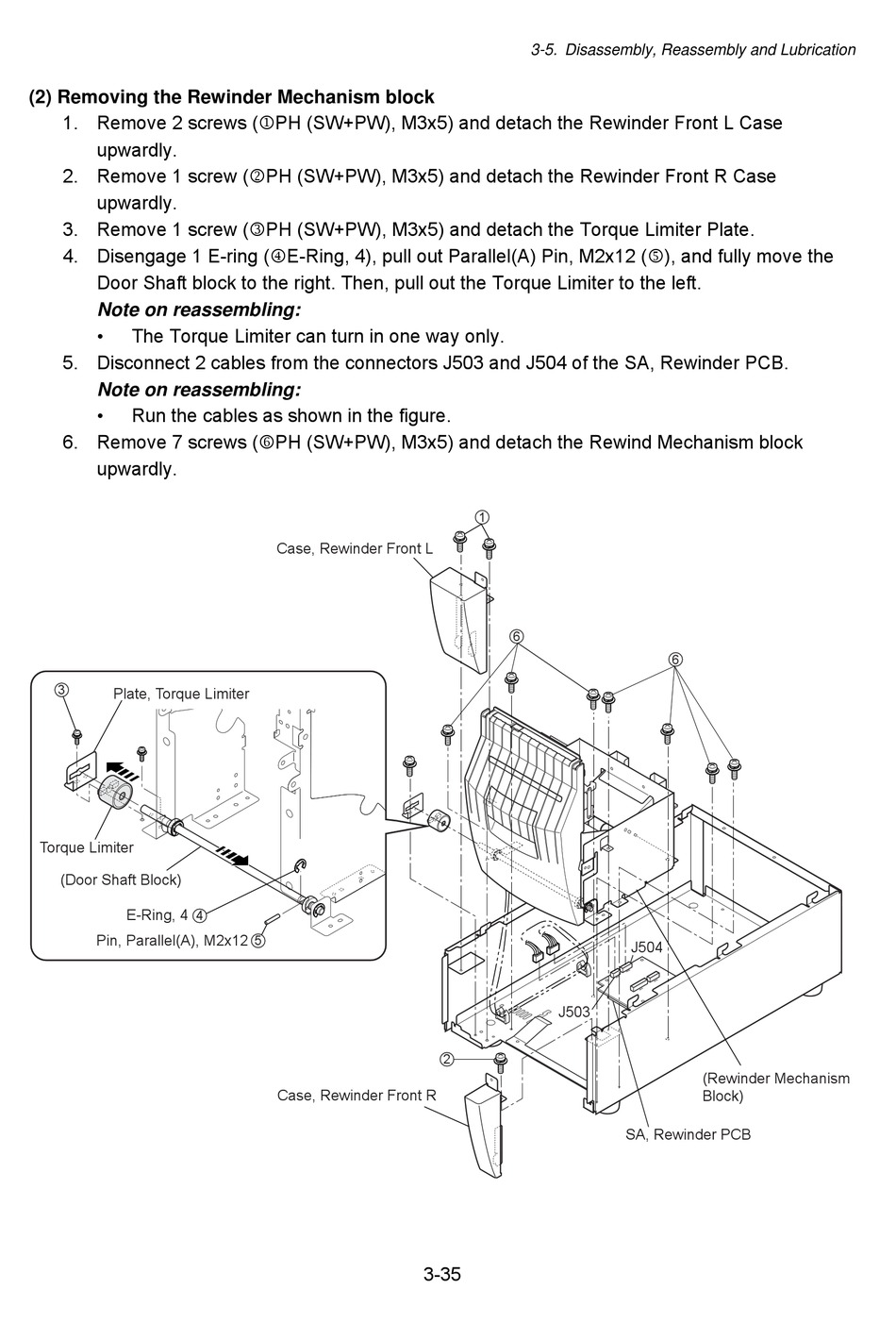

(2) Removing the Rewinder Mechanism block

1. Remove 2 screws (1PH (SW+PW), M3x5) and detach the Rewinder Front L Case
upwardly.
2. Remove 1 screw (2PH (SW+PW), M3x5) and detach the Rewinder Front R Case
upwardly.
3. Remove 1 screw (3PH (SW+PW), M3x5) and detach the Torque Limiter Plate.
4. Disengage 1 E-ring (4E-Ring, 4), pull out Parallel(A) Pin, M2x12 (5), and fully move the
Door Shaft block to the right. Then, pull out the Torque Limiter to the left.
Note on reassembling:
• The Torque Limiter can turn in one way only.
5. Disconnect 2 cables from the connectors J503 and J504 of the SA, Rewinder PCB.
Note on reassembling:
• Run the cables as shown in the figure.
6. Remove 7 screws (6PH (SW+PW), M3x5) and detach the Rewind Mechanism block
upwardly.
3
Plate, Torque Limiter
Torque Limiter
(Door Shaft Block)
E-Ring, 4
Pin, Parallel(A), M2x12
Case, Rewinder Front L
4
5
Case, Rewinder Front R
3-5. Disassembly, Reassembly and Lubrication
1
6
J503
2
3-35
6
J504
(Rewinder Mechanism
Block)
SA, Rewinder PCB
