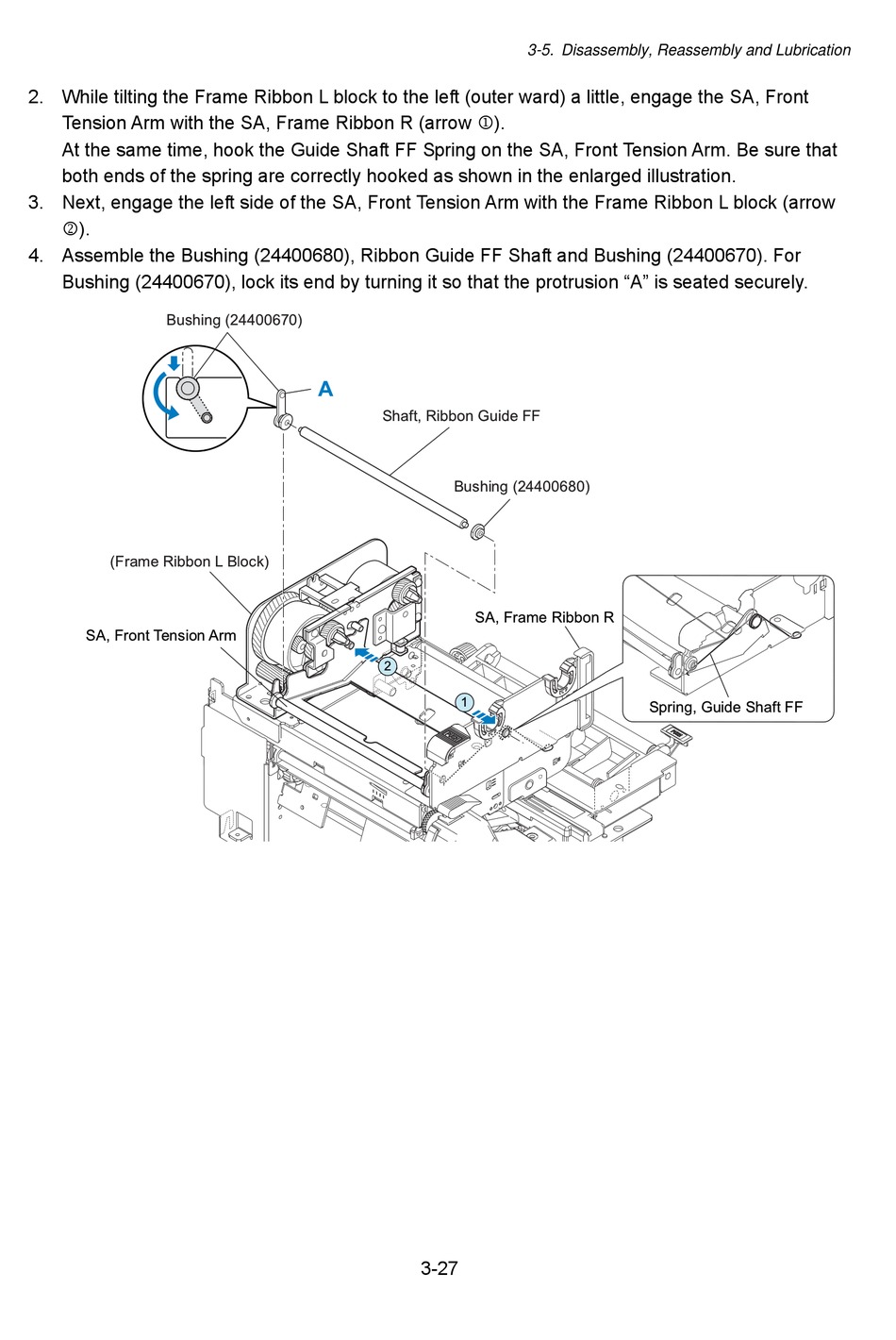

2. While tilting the Frame Ribbon L block to the left (outer ward) a little, engage the SA, Front
Tension Arm with the SA, Frame Ribbon R (arrow 1).
At the same time, hook the Guide Shaft FF Spring on the SA, Front Tension Arm. Be sure that
both ends of the spring are correctly hooked as shown in the enlarged illustration.
3. Next, engage the left side of the SA, Front Tension Arm with the Frame Ribbon L block (arrow
2).
4. Assemble the Bushing (24400680), Ribbon Guide FF Shaft and Bushing (24400670). For
Bushing (24400670), lock its end by turning it so that the protrusion "A" is seated securely.
Bushing (24400670)
(Frame Ribbon L Block)
SA, Front Tension Arm
3-5. Disassembly, Reassembly and Lubrication
Shaft, Ribbon Guide FF
Bushing (24400680)
SA, Frame Ribbon R
2
3-27
Spring, Guide Shaft FF
