3-5. Disassembly, Reassembly and Lubrication

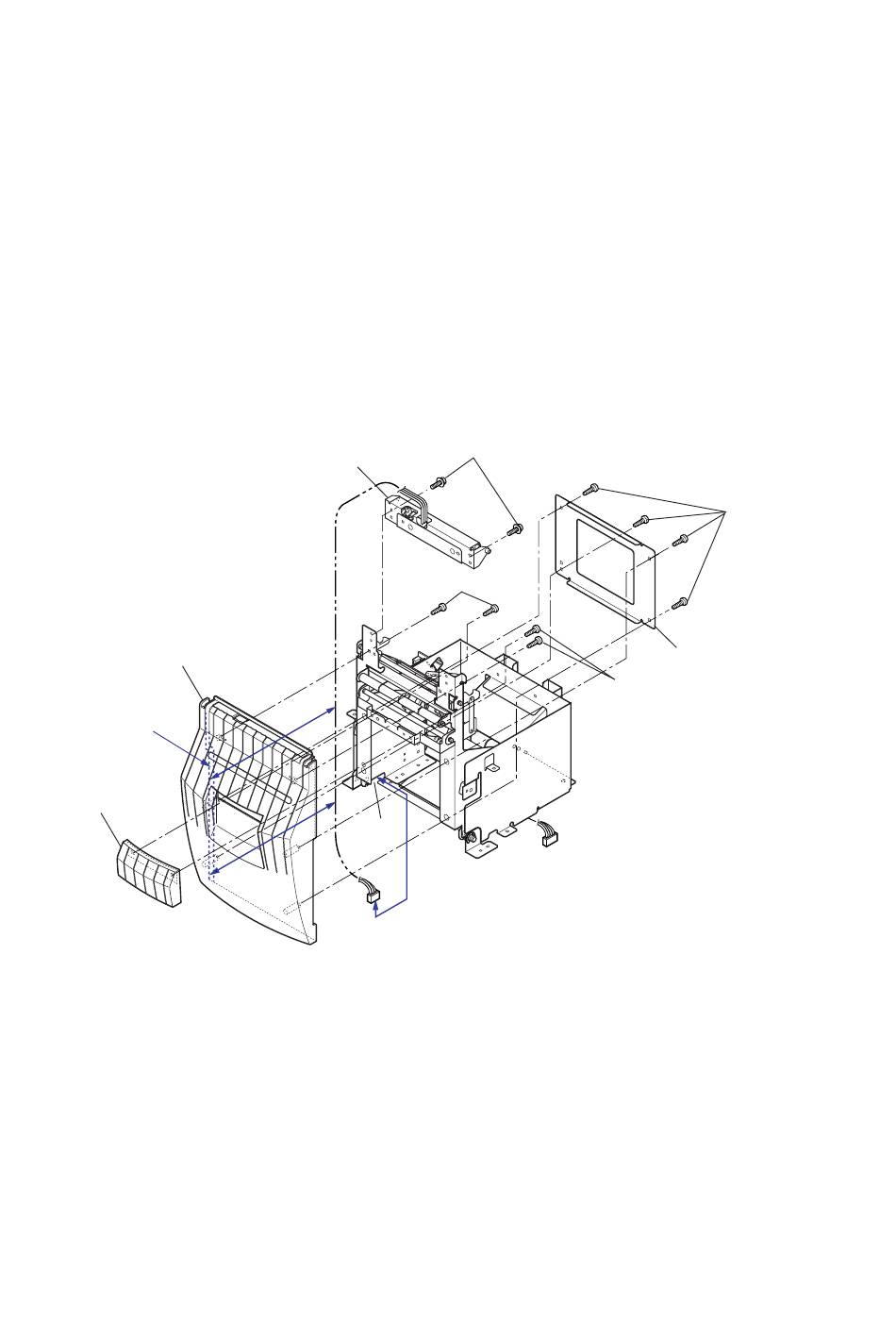

(3) Removing the Rewinder Door and SA1, Peeler

1. Remove the Rewinder Mechanism block referring to above
Mechanism block".
Note: To remove the Rewinder Door alone, it is not necessary to detach the Rewinder
Mechanism block. You can remove it after opening the Rewinder cover.
2. Remove 4 screws (PHT (#2), M3x6) and detach the Door Center Frame2.
3. Remove 4 screws (PHT (#2), M3x6) and detach the Handle and Rewinder Door.
Note on reassembling:
• When attaching the Rewinder Door, run the Peel sensor cable along the door frame as
shown in the figure (See the "Cable path").
4. Remove 2 screws (PH (SW+PW), M3x5) and detach the SA1, Peeler.
Note on reassembling:
• Pass the cable (J503) through the left opening "A" as shown in the figure.
Door, Rewinder
(Cable path)
Handle
PH (SW+PW), M3x5
SA1, Peeler
PHT (#2), M3x6
A
(Cable path)
(To J503)
3-36
"(2) Removing the Rewinder
Frame2, Door Center
PHT (#2), M3x6
(To J504)
PHT (#2), M3x6
