(9) Notes on assembling the springs
Note: The parts location Nos. (e.g. [2-2]) show the ones for 7010R. Refer to the Drawing No.
2 "Unit, Rewinder" for the Rewinder Part in Chapter 5 "Parts List".

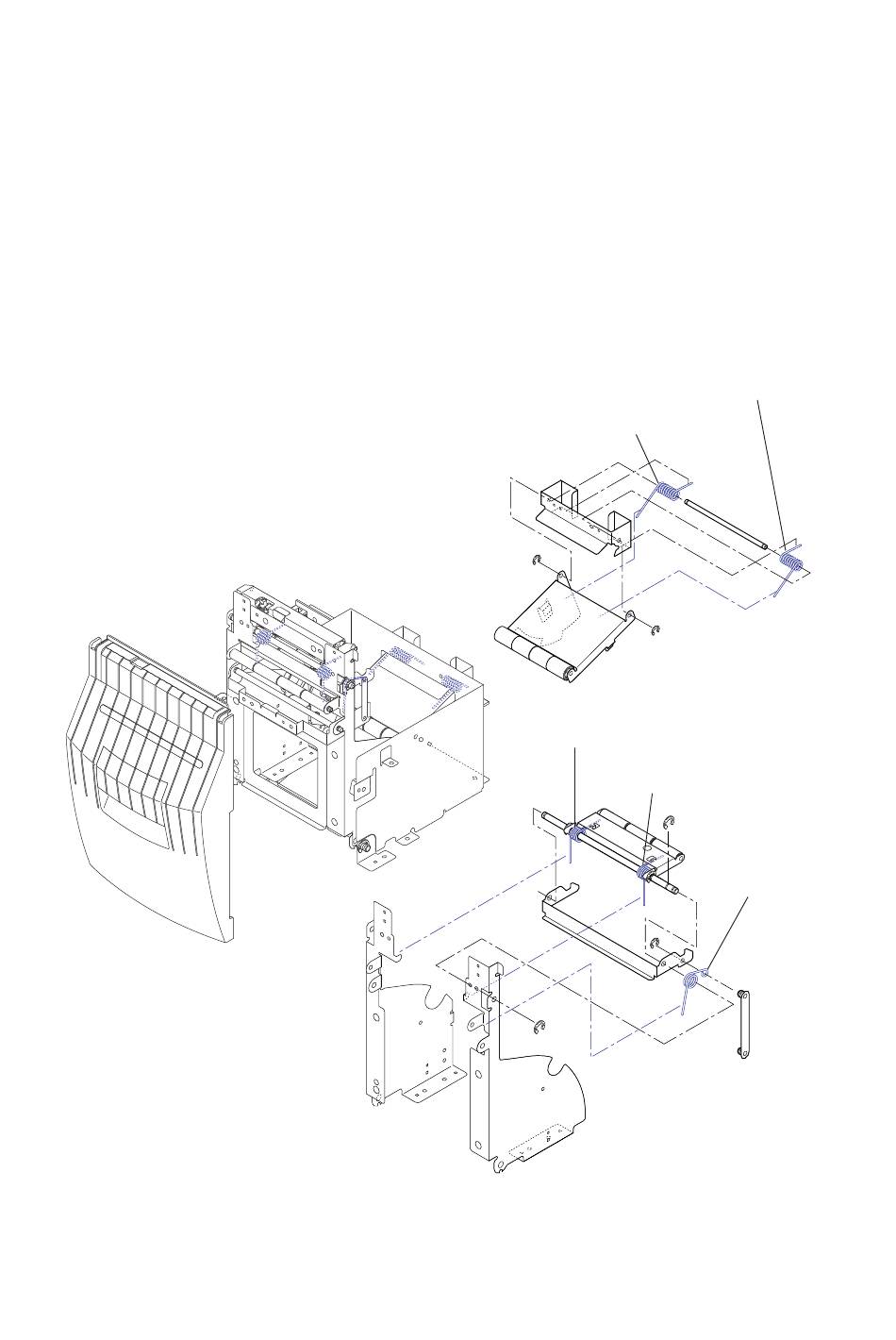

The following figure shows the places where the springs should be assembled.
Assemble each spring correctly referring to the figure.
•
Spring, Measure Sensor L [2-2]
•
Spring, Measure Sensor R [2-3]
•
Spring, Damper Rewinder L [2-23]
•
Spring, Damper Rewinder R [2-25]
•
Spring, Handle R [2-27]
[Location of each spring]
3-5. Disassembly, Reassembly and Lubrication
Spring, Measure Sensor L
Spring, Damper Rewinder L
3-41
Spring, Measure Sensor R
Spring, Damper Rewinder R
Spring, Handle R
