1-3. Printing Position Accuracy

1-3. Printing Position Accuracy
By default, the printing start position is 2.5 mm (0.10") from the left end of the media and 1 mm
(0.04") backward the leading edge of the label, U-shaped notch, or black mark.
2.5 mm (0.10") is the necessary value to avoid printing in the unprintable area as mentioned in 1-2
"Printable Area".

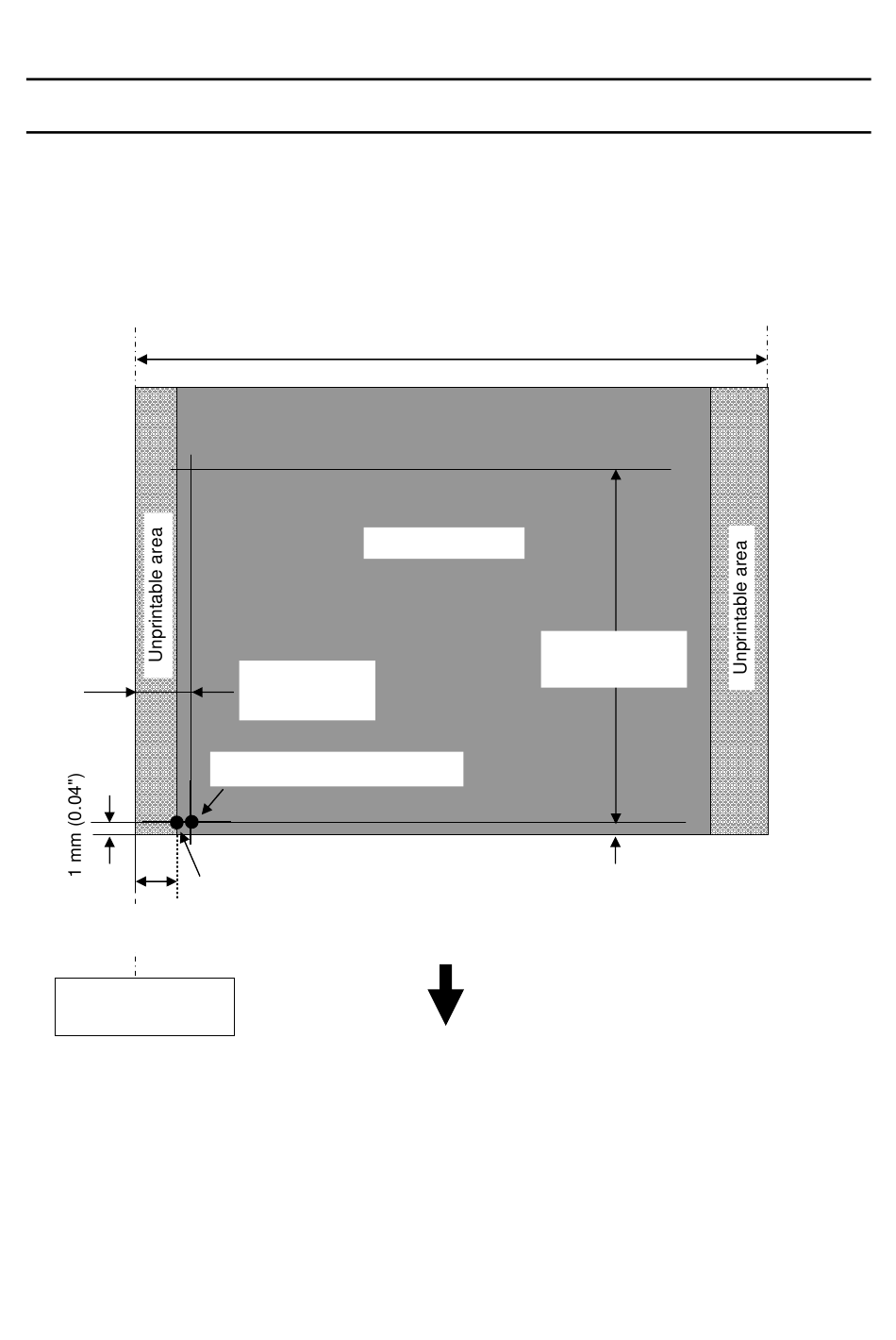

The printing start position will deviate from the ideal position as follows:
2.5 mm
(0.10")
Reference edge
(Paper guide)
*1: Actual printing start position. May deviates from the ideal one in the indicated range.
*2: Deviation of vertical positioning when printing position is set to 0.
*3: Deviation of horizontal positioning when printing position is set to 0.
*4: Deviation of vertical printing position when 100 mm is specified from the printing start
position.
Maximum media width: 118 mm (4.65")
2.5 ± 1 mm*
3
(0.10 ± 0.04")
Actual printing start position*
Ideal printing start position
Printable area
1
Direction of media feed
1-10
100 ± 2 mm*
4
(39.4 ± 0.08")
1 ± 2 mm*
2
(0.04 ± 0.08")
