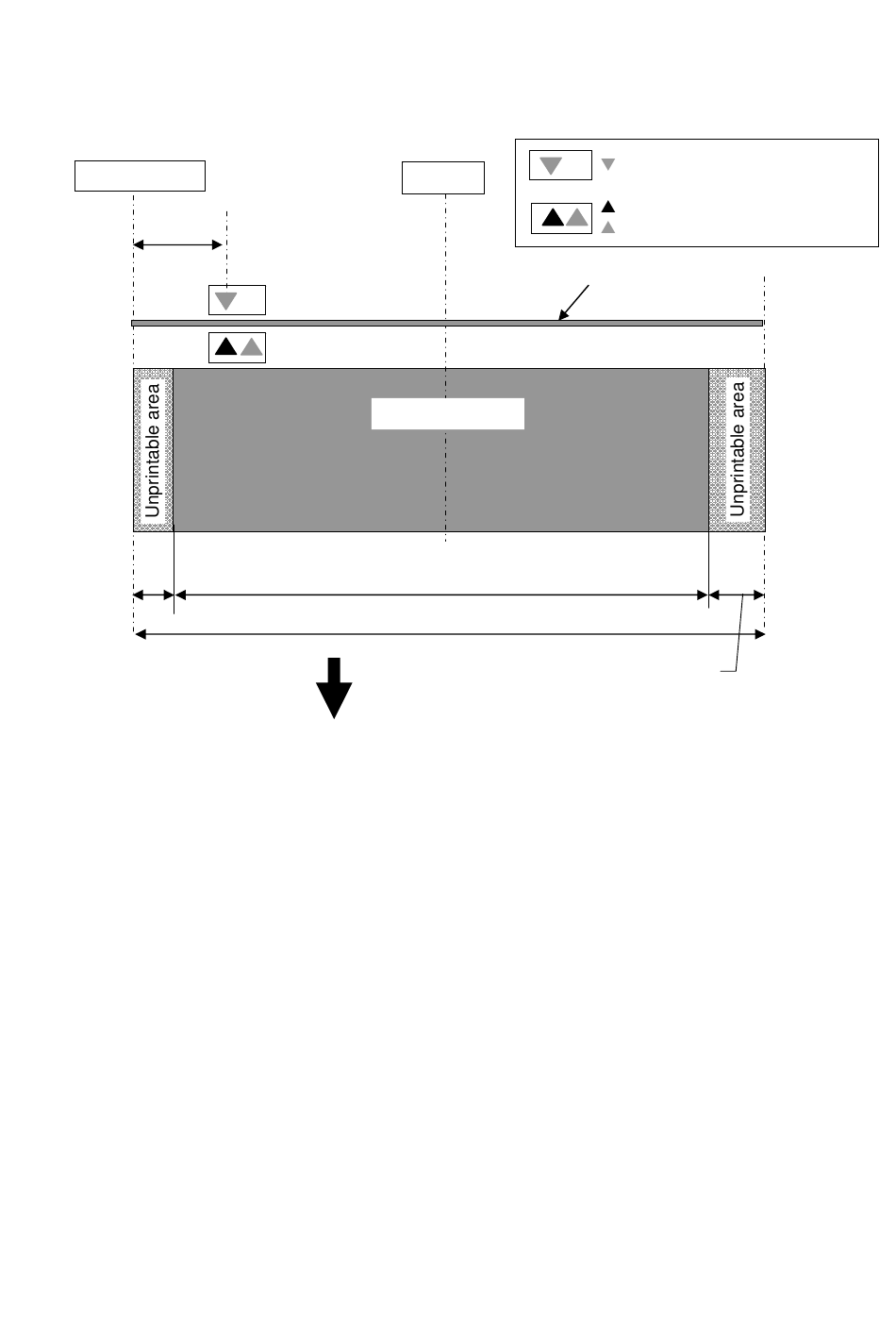

1-4. Adjustable Sensors/Front Fixed Sensor
Front fixed sensor:
It is basically the same as the adjustable sensor except that the front fixed sensor is not adjustable.
Media guide
2.5 mm
(0.10")
Direction of media feed
6.5 mm (0.2559")
Printable area
104.0 mm (4.1") (7010/7010R)
105.0 mm (4.1") (7010-300)
Maximum media width: 118 mm (4.65")
Center
Media
11.5 mm (0.45") (7010/7010R)
10.5 mm (0.41") (7010-300)
1-12
: Upper sensor (LED)
: Lower sensor (Phototransistor)
: Lower sensor (LED)
11.5 mm
(0.45")
