3-5. Disassembly, Reassembly and Lubrication

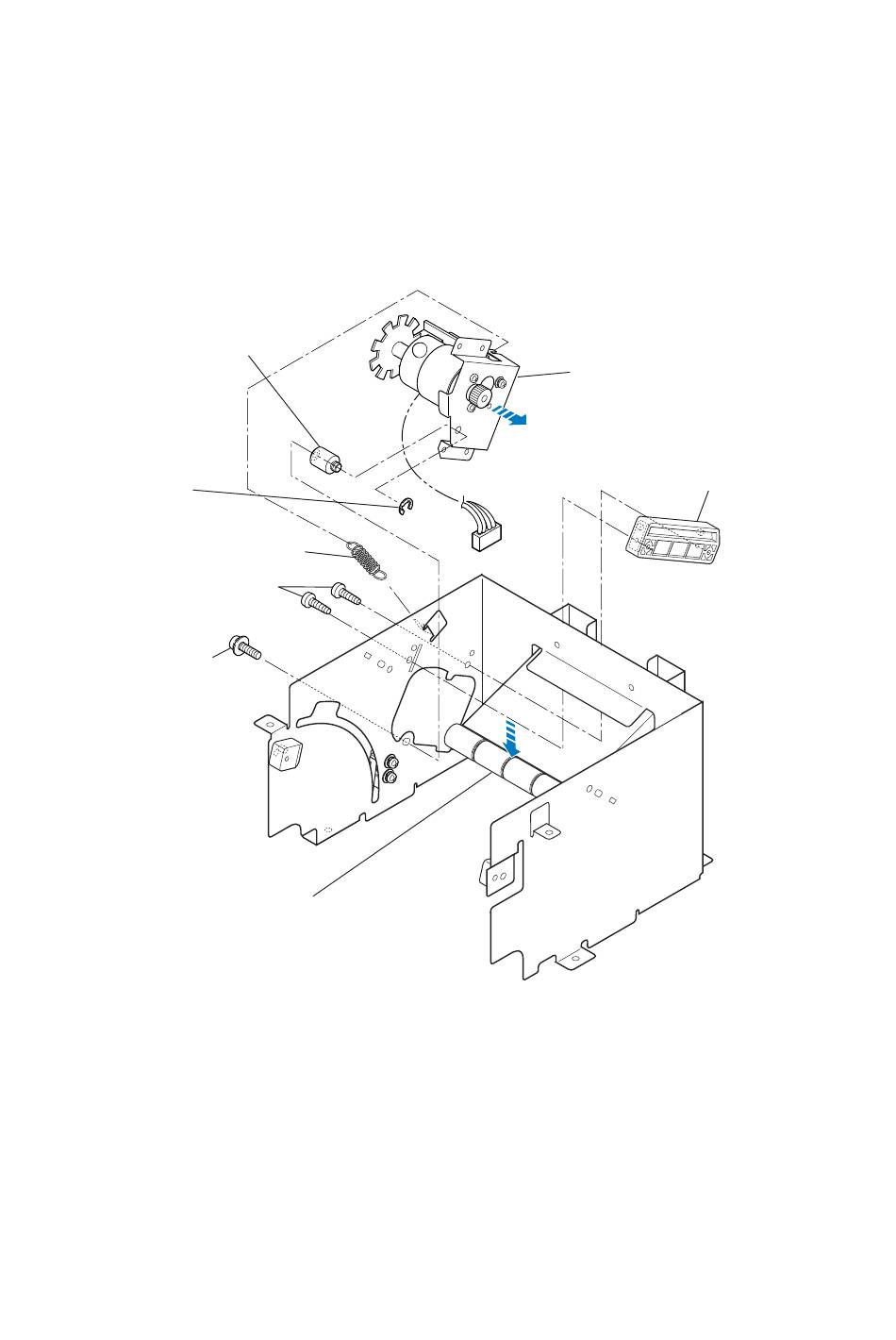

(5) Removing the SA, Rewinder Motor

1. Remove the Rewinder Mechanism block referring to
Mechanism block".
2. Remove 2 screws (PHT (#2), M3x6) and detach the Motor Plate Guide.
3. Unhook the Rewinder Motor Spring, disengage 1 E-ring (E-Ring, 3), remove 1 screw (PH
(SW+PW), M3x5), and detach the Rewinder Motor Plate Pivot.
4. While pushing down the Measure Flap block, remove the SA, Rewinder Motor to the right.
Pivot, Rewinder Motor Plate
E-Ring, 3
Spring, Rewinder Motor
PHT (#2), M3x6
PH (SW+PW), M3x5
Note on reassembling:
• After assembling the SA, Rewinder Motor on the frame, be sure that it can smoothly turn.
(The pivot is the supporting point of the SA, Rewinder Motor.)
(Measure Flap Block)
"(2) Removing the Rewinder
SA, Rewinder Motor
3-38
Guide, Motor Plate
