Tally Dascom 7010 Series Maintenance Manual page 100

3-5. Disassembly, Reassembly and Lubrication
Notes on reassembling:
When reassembling the Unit, Frame Ribbon L, follow the next steps.

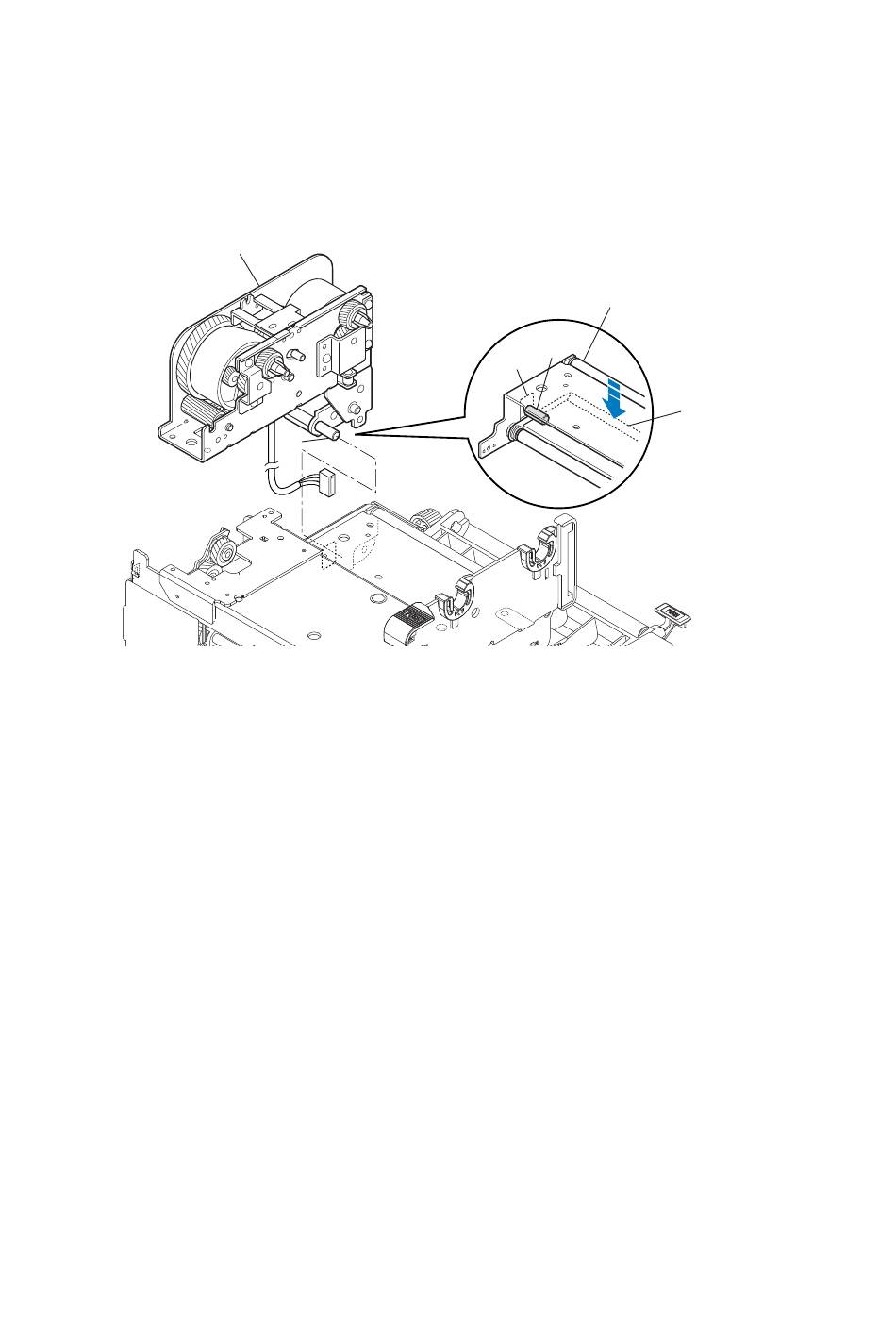

1. While pushing down the Ribbon Guide Roller C, insert the shaft "B" of the Frame Ribbon L
block into the hole "C" of the Unit, Frame Rear.
(Frame Ribbon L Block)
Unit, Frame Rear
B
C
Ribbon Guide Roller C
B
