Tally Dascom 7010 Series Maintenance Manual page 92

3-5. Disassembly, Reassembly and Lubrication
Notes on reassembling:
• Fit the holes in the chassis of the Unit, Mechanism to the protrusions of the SA, Case L to
securely seat the Unit, Mechanism onto the SA, Case L.
• Securely fasten the earth wire with the screw (8PH (SW+PW), M3x5).
• Install the Power Switch as shown in the figure (set its "l (ON)" side to the right).
• When assembling the SA, Front Center, assemble it so that its claws "A" shown in the figure are
securely inserted into the slits "B" on the SA, Case L.

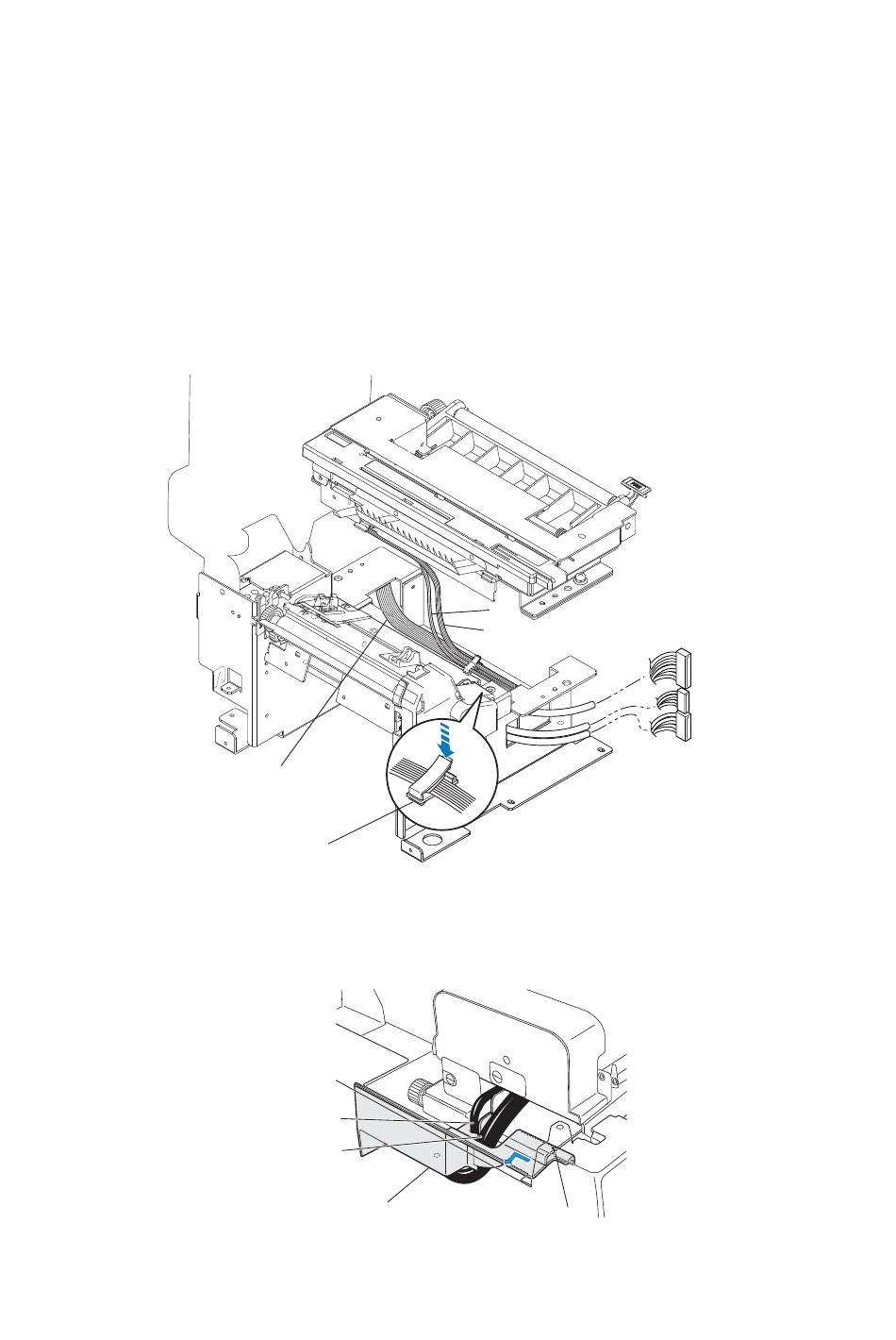

• See the following wiring route for Unit, Mechanism and pass the cables (J4 to J9, J21 and J22)
through the Main Cable Clamp.
Other Connectors
(J4, J5, J6, J8, J9, J21)
Clamp, Main Cable
• When assembling the Cable Cover, first insert its right side while aligning the slit "C" and then fit
the Cable Cover by shifting in the direction of the arrow
Also, be sure that the cables are correctly routed in the Cable Cover as shown below.
able of Unit, Frame Ribbon L
able of Unit, Frame U
[Wiring route for Unit, Mechanism]
able over
3-18
J7
J22
J3
J16
J15
