16.9 PSC Input Mode 1: Stop signal, Jump to Opposite Dead-Time and Wait
DT0 OT0
PSCOUTn0
PSCOUTn1
PSC Input A
PSC Input B
DT0 OT0
PSCOUTn0
PSCOUTn1
PSC Input A
PSC Input B
4317I–AVR–01/08

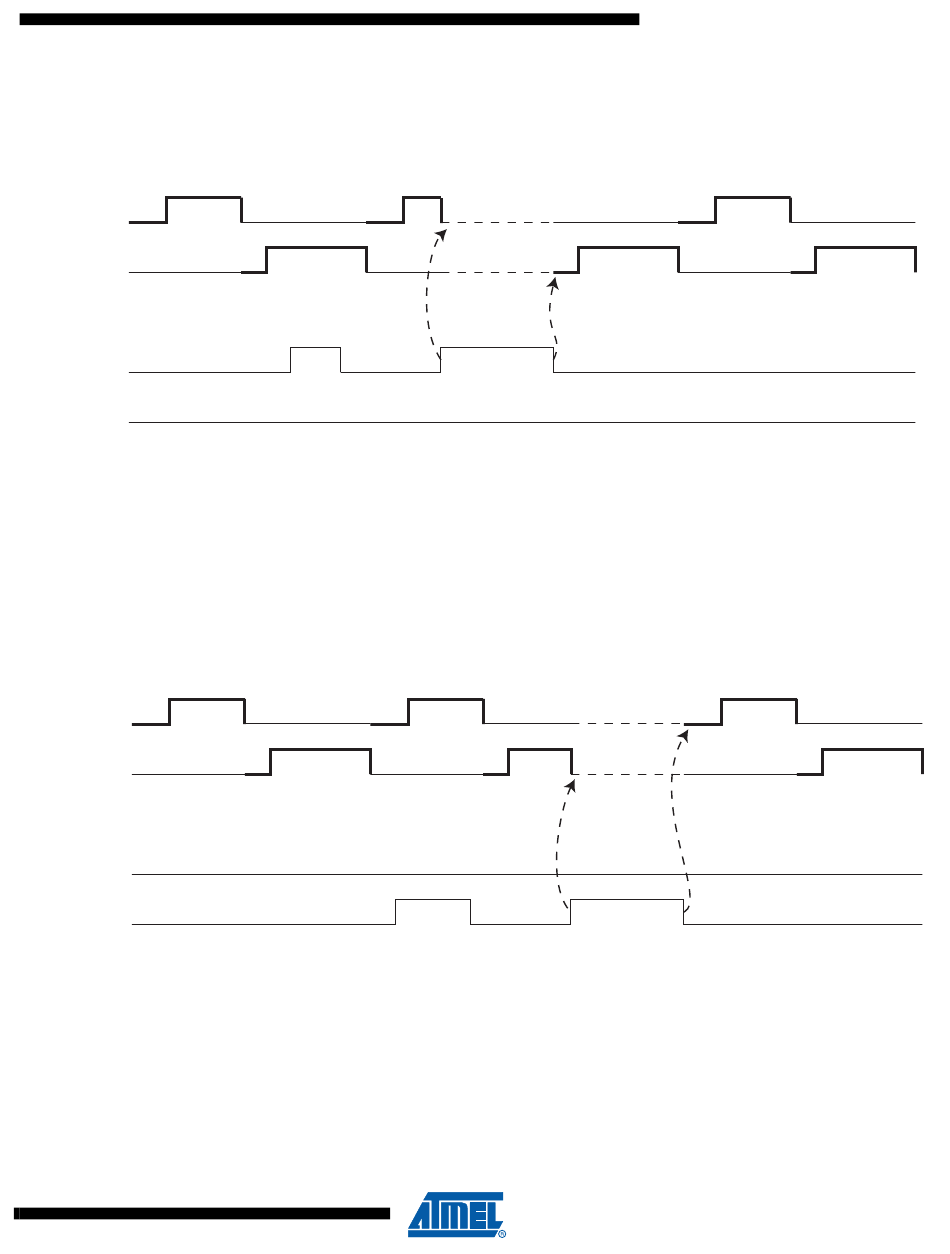

Figure 16-20. PSCn behaviour versus PSCn Input A in Fault Mode 1
DT1 DT0
OT1
PSC Input A is taken into account during DT0 and OT0 only. It has no effect during DT1 and
OT1.
When PSC Input A event occurs, PSC releases PSCOUTn0, waits for PSC Input A inactive state
and then jumps and executes DT1 plus OT1.
Figure 16-21. PSCn behaviour versus PSCn Input B in Fault Mode 1
DT1 DT0
OT1
PSC Input B is take into account during DT1 and OT1 only. It has no effect during DT0 and OT0.
When PSC Input B event occurs, PSC releases PSCOUTn1, waits for PSC Input B inactive state
and then jumps and executes DT0 plus OT0.
OT0 DT1
OT0 DT1
OT1
AT90PWM2/3/2B/3B
DT0 OT0
OT1
DT0 OT0
DT1
OT1
DT1
OT1
