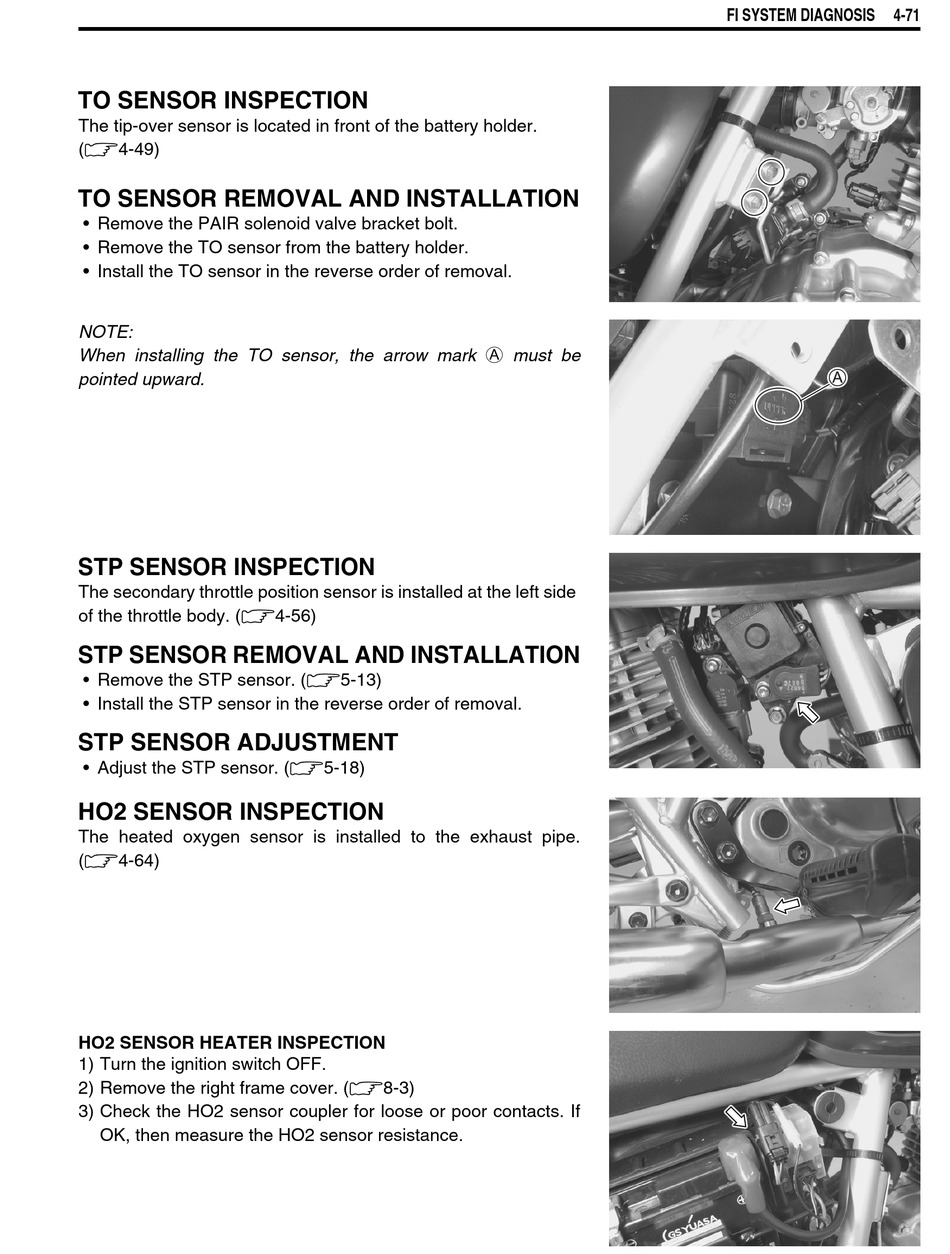

TO SENSOR INSPECTION

The tip-over sensor is located in front of the battery holder.
(4-49)

TO SENSOR REMOVAL AND INSTALLATION

• Remove the PAIR solenoid valve bracket bolt.
• Remove the TO sensor from the battery holder.
• Install the TO sensor in the reverse order of removal.
NOTE:
When installing the TO sensor, the arrow mark A must be
pointed upward.

STP SENSOR INSPECTION

The secondary throttle position sensor is installed at the left side
of the throttle body. (4-56)

STP SENSOR REMOVAL AND INSTALLATION

• Remove the STP sensor. (5-13)
• Install the STP sensor in the reverse order of removal.

STP SENSOR ADJUSTMENT

• Adjust the STP sensor. (5-18)

HO2 SENSOR INSPECTION

The heated oxygen sensor is installed to the exhaust pipe.
(4-64)
HO2 SENSOR HEATER INSPECTION
1) Turn the ignition switch OFF.
2) Remove the right frame cover. (8-3)
3) Check the HO2 sensor coupler for loose or poor contacts. If
OK, then measure the HO2 sensor resistance.
FI SYSTEM DIAGNOSIS 4-71
