8.10
8.10.1
H
Topping up
Maintenance manual
GMK 4100L-1

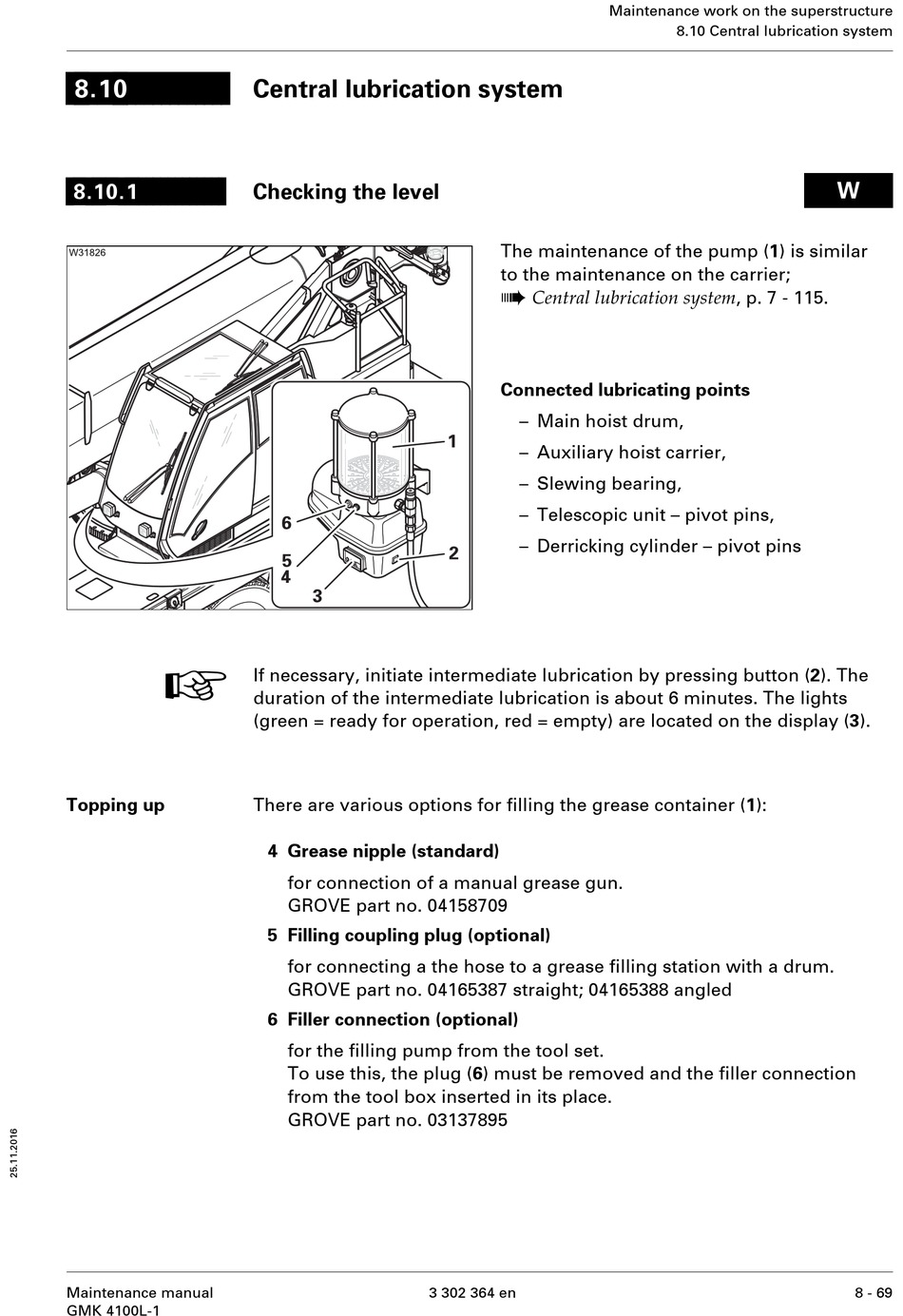

Central lubrication system

Checking the level

If necessary, initiate intermediate lubrication by pressing button (2). The
duration of the intermediate lubrication is about 6 minutes. The lights
(green = ready for operation, red = empty) are located on the display (3).
There are various options for filling the grease container (1):
4 Grease nipple (standard)
for connection of a manual grease gun.
GROVE part no. 04158709
5 Filling coupling plug (optional)
for connecting a the hose to a grease filling station with a drum.
GROVE part no. 04165387 straight; 04165388 angled
6 Filler connection (optional)
for the filling pump from the tool set.
To use this, the plug (6) must be removed and the filler connection
from the tool box inserted in its place.
GROVE part no. 03137895
The maintenance of the pump (1) is similar
to the maintenance on the carrier;
à
Central lubrication system , p. 7 - 115.
Connected lubricating points
– Main hoist drum,
– Auxiliary hoist carrier,
– Slewing bearing,
– Telescopic unit – pivot pins,
– Derricking cylinder – pivot pins
3 302 364 en
Maintenance work on the superstructure
8.10 Central lubrication system
W
8 - 69
