Maintenance work on the carrier
7.12 Suspension
7.12.3
G
S
7 - 86

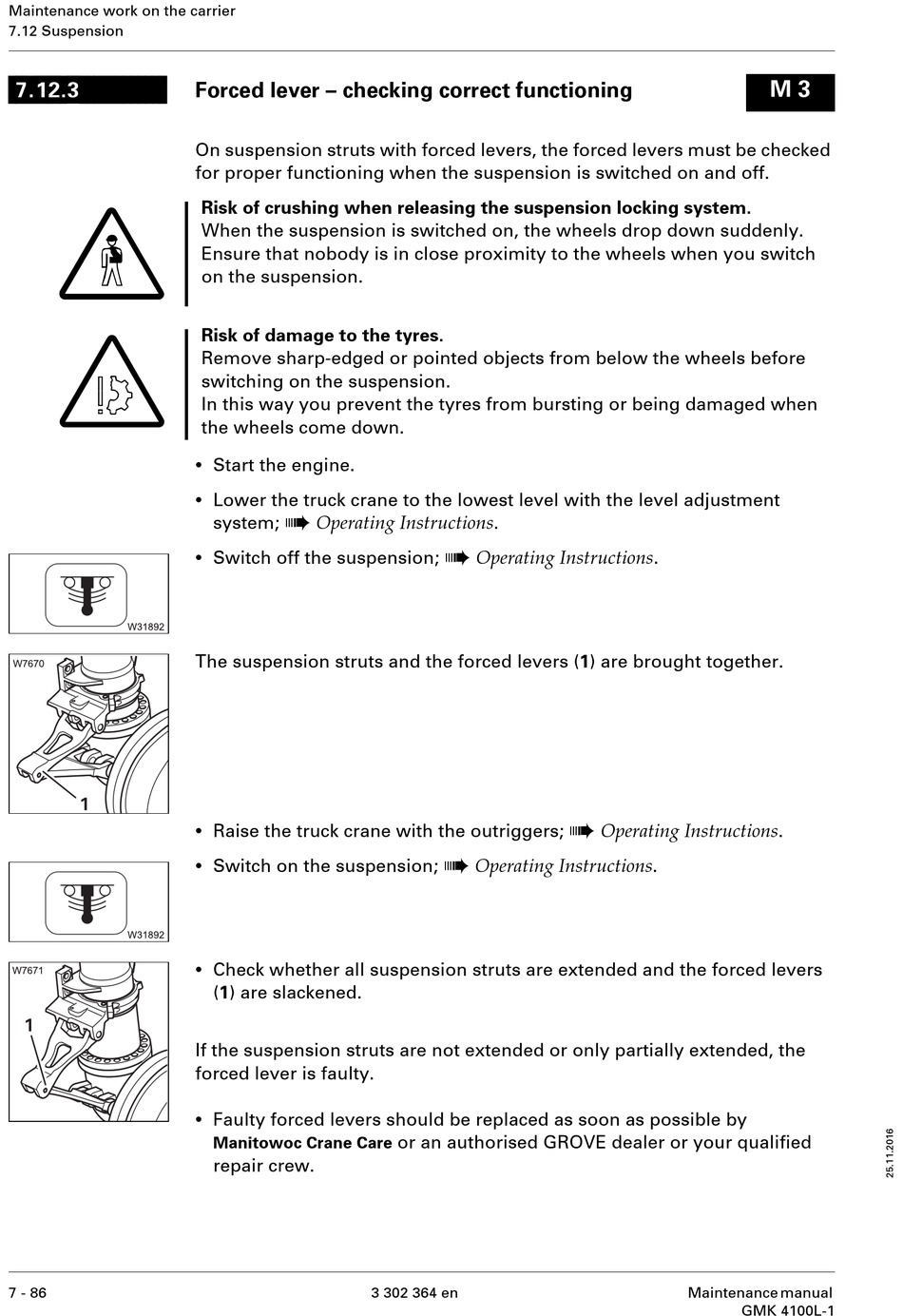

Forced lever – checking correct functioning
On suspension struts with forced levers, the forced levers must be checked
for proper functioning when the suspension is switched on and off.
Risk of crushing when releasing the suspension locking system.
When the suspension is switched on, the wheels drop down suddenly.
Ensure that nobody is in close proximity to the wheels when you switch
on the suspension.
Risk of damage to the tyres.
Remove sharp-edged or pointed objects from below the wheels before
switching on the suspension.
In this way you prevent the tyres from bursting or being damaged when
the wheels come down.
•
Start the engine.
•
Lower the truck crane to the lowest level with the level adjustment
à
system; Operating Instructions .
•
Switch off the suspension;
The suspension struts and the forced levers (1) are brought together.
•
Raise the truck crane with the outriggers;
•
Switch on the suspension;
•
Check whether all suspension struts are extended and the forced levers
(1) are slackened.
If the suspension struts are not extended or only partially extended, the
forced lever is faulty.
•
Faulty forced levers should be replaced as soon as possible by
Manitowoc Crane Care
repair crew.
à
Operating Instructions .
à
Operating Instructions .
or an authorised GROVE dealer or your qualified
3 302 364 en
à
Operating Instructions .
Maintenance manual
M 3
GMK 4100L-1
