Suspension

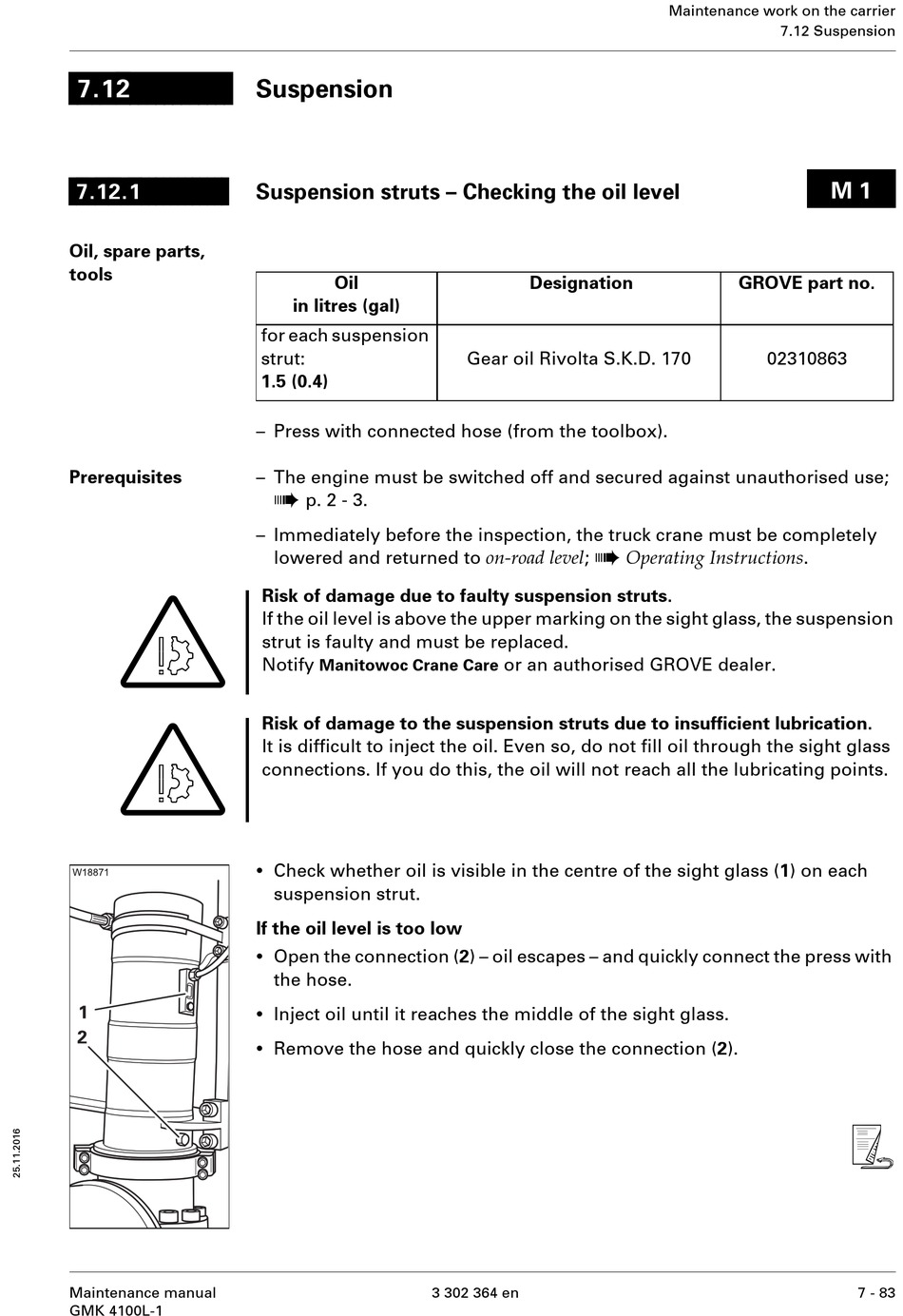

Suspension struts – Checking the oil level
Oil
in litres (gal)
for each suspension
strut:
1.5 (0.4)
– Press with connected hose (from the toolbox).
– The engine must be switched off and secured against unauthorised use;
à
p. 2 - 3.
– Immediately before the inspection, the truck crane must be completely
lowered and returned to on-road level ;
Risk of damage due to faulty suspension struts.
If the oil level is above the upper marking on the sight glass, the suspension
strut is faulty and must be replaced.
Notify
Manitowoc Crane Care
Risk of damage to the suspension struts due to insufficient lubrication.
It is difficult to inject the oil. Even so, do not fill oil through the sight glass
connections. If you do this, the oil will not reach all the lubricating points.
•
Check whether oil is visible in the centre of the sight glass (1) on each
suspension strut.
If the oil level is too low
•
Open the connection (2) – oil escapes – and quickly connect the press with
the hose.
•
Inject oil until it reaches the middle of the sight glass.
•
Remove the hose and quickly close the connection (2).
Designation
Gear oil Rivolta S.K.D. 170
à
or an authorised GROVE dealer.
