Maintenance work on the superstructure
8.5 Slewing bearing
8.5.5
Grease, spare
parts, tools
Prerequisites
Lubricating
8 - 30

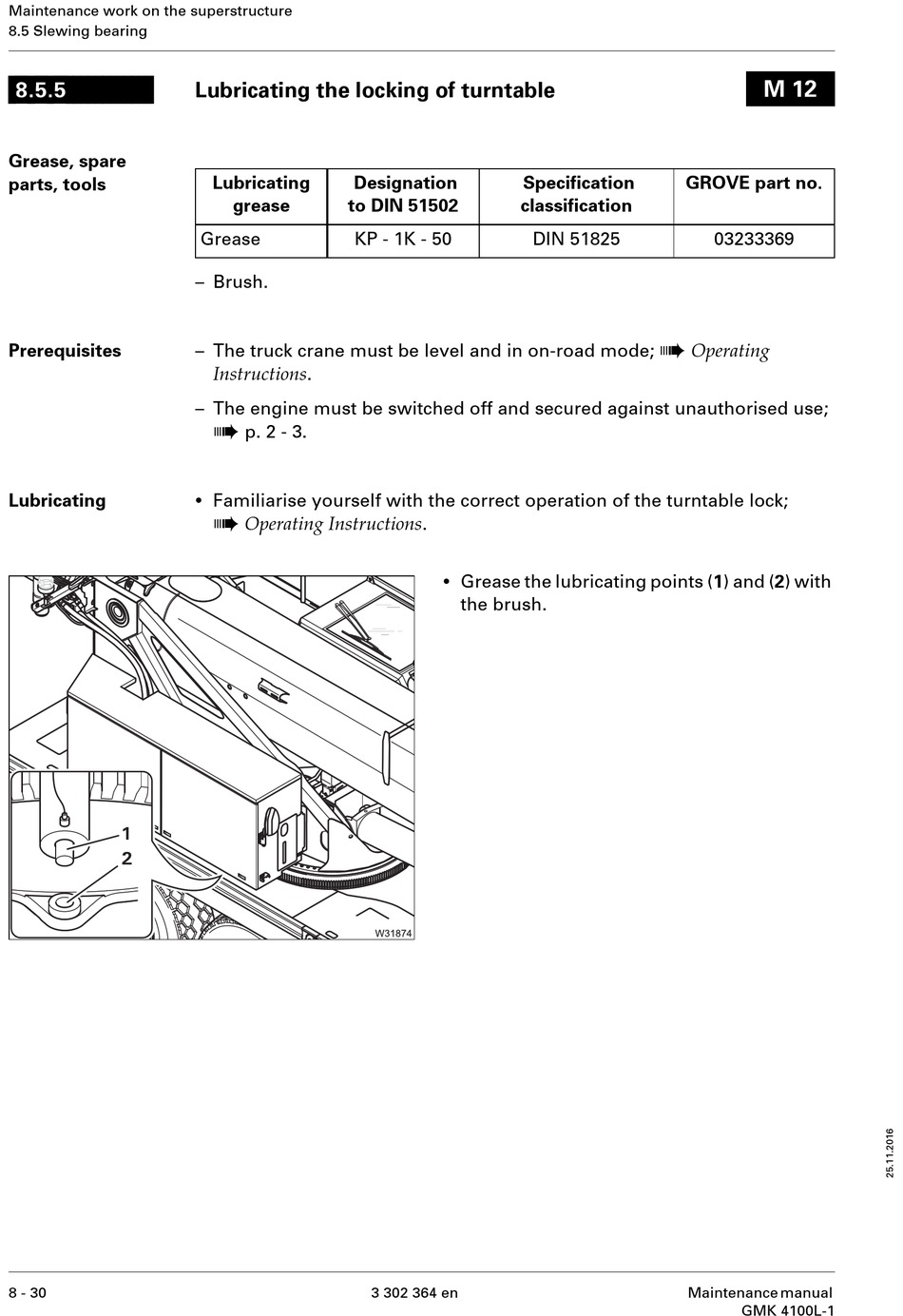

Lubricating the locking of turntable

Lubricating Designation
grease to DIN 51502
Grease KP - 1K - 50
– Brush.
– The truck crane must be level and in on-road mode;
Instructions .
– The engine must be switched off and secured against unauthorised use;
à
p. 2 - 3.
•
Familiarise yourself with the correct operation of the turntable lock;
à
Operating Instructions .
Specification
classification
DIN 51825
•
Grease the lubricating points (1) and (2) with
the brush.
3 302 364 en
M 12
GROVE part no.
03233369
à
Operating
Maintenance manual
GMK 4100L-1
