1.6
Basic rule
Switches and
buttons
Maintenance manual
GMK 4100L-1

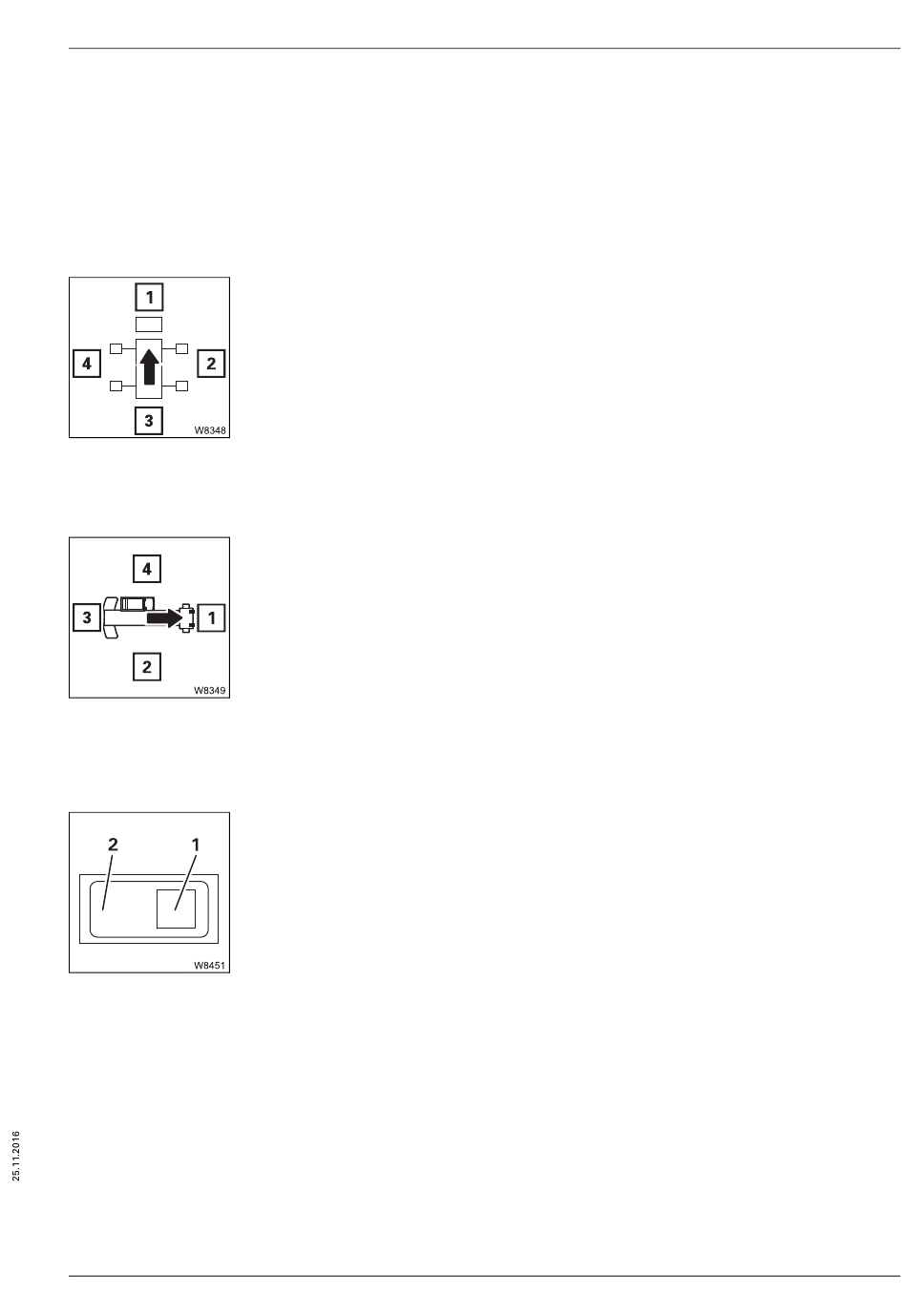

Definition of direction references

Direction information always depends on whether the carrier or
the superstructure is being operated.
On the carrier
The driver's cab is always at the front, which means that:
1: front
3: rear
Forwards always means with the driver's cab leading,
Backwards always means with the rear lights on the carrier leading.
On the superstructure
The main boom head is always at the front, which means that:
1: front
3: rear
For switches and buttons, the terms down and up are used.
Regardless of the fitting position (vertical, horizontal, diagonal, transverse
or turned), the following always applies:
Down: If (1) press – next to the symbol
Up: If (2) press – opposite the symbol
2: right
4: left
2: right
4: left
3 302 364 en
General instructions
1.6 Definition of direction references
1 - 5
