Manitowoc Grove GMK 4100L-1 Maintenance Manual page 132

Maintenance work on the carrier
7.6 Transmission
Topping up the oil
Checks after the
oil change
7 - 44
•
Fill the oil up to the lower edge of the
opening.
•

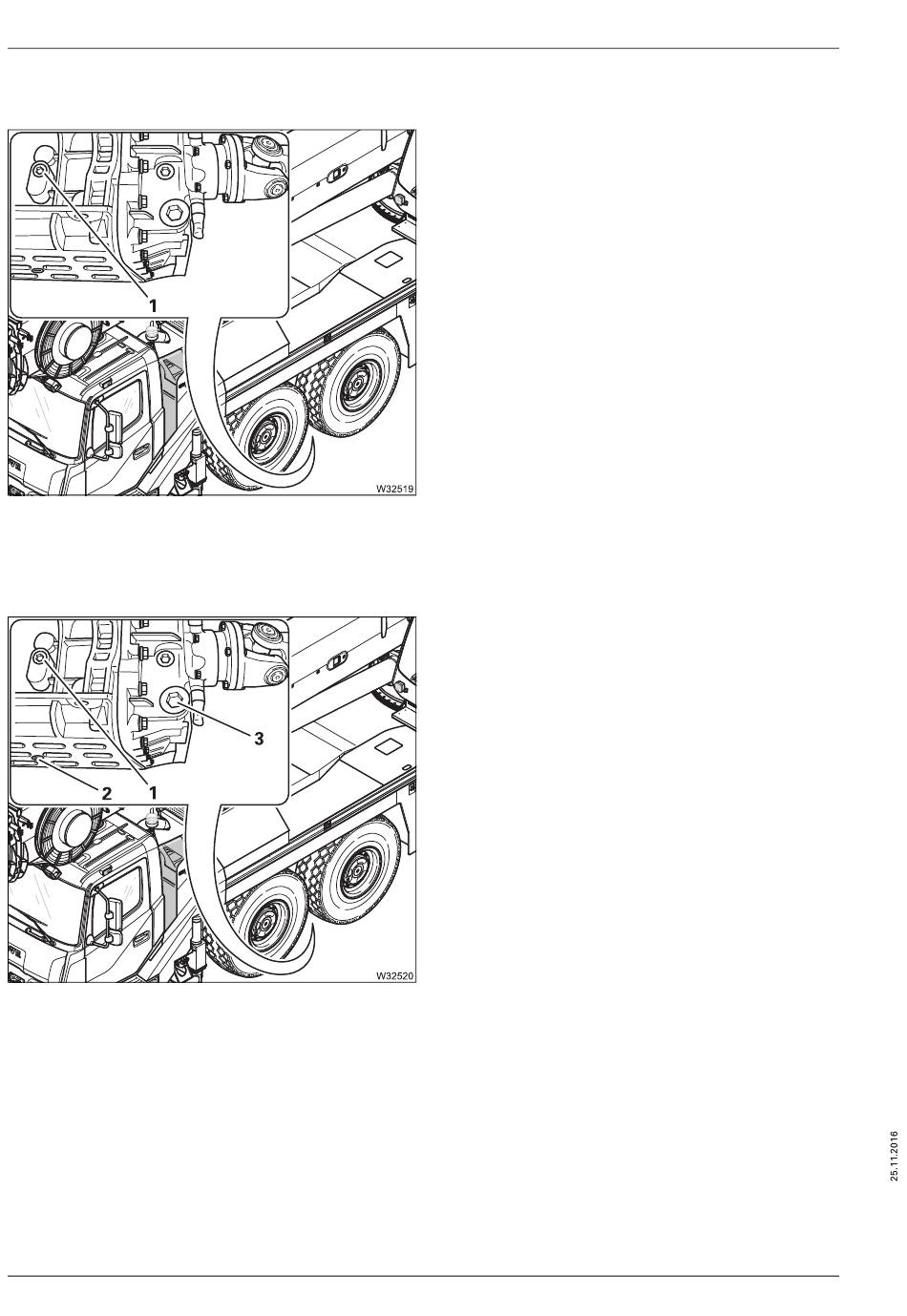

Replace the gasket and tighten the drain
plug (1) – torque 25 Nm (18.4 lbf ft).
After changing oil, check for leakage:
•
Start the engine and let it idle in neutral N
•
Check the screw plugs (1) to (3) for leakage
•
Check the hoses and connections on the oil
cooler.
3 302 364 en Maintenance manual
GMK 4100L-1
