1
1.1
GMK4100L-1,
GMK5150,
GMK5150L
Correction sheet for maintenance manual
GMK4100L-1/5150/5150L
Transmission – shorter maintenance intervals

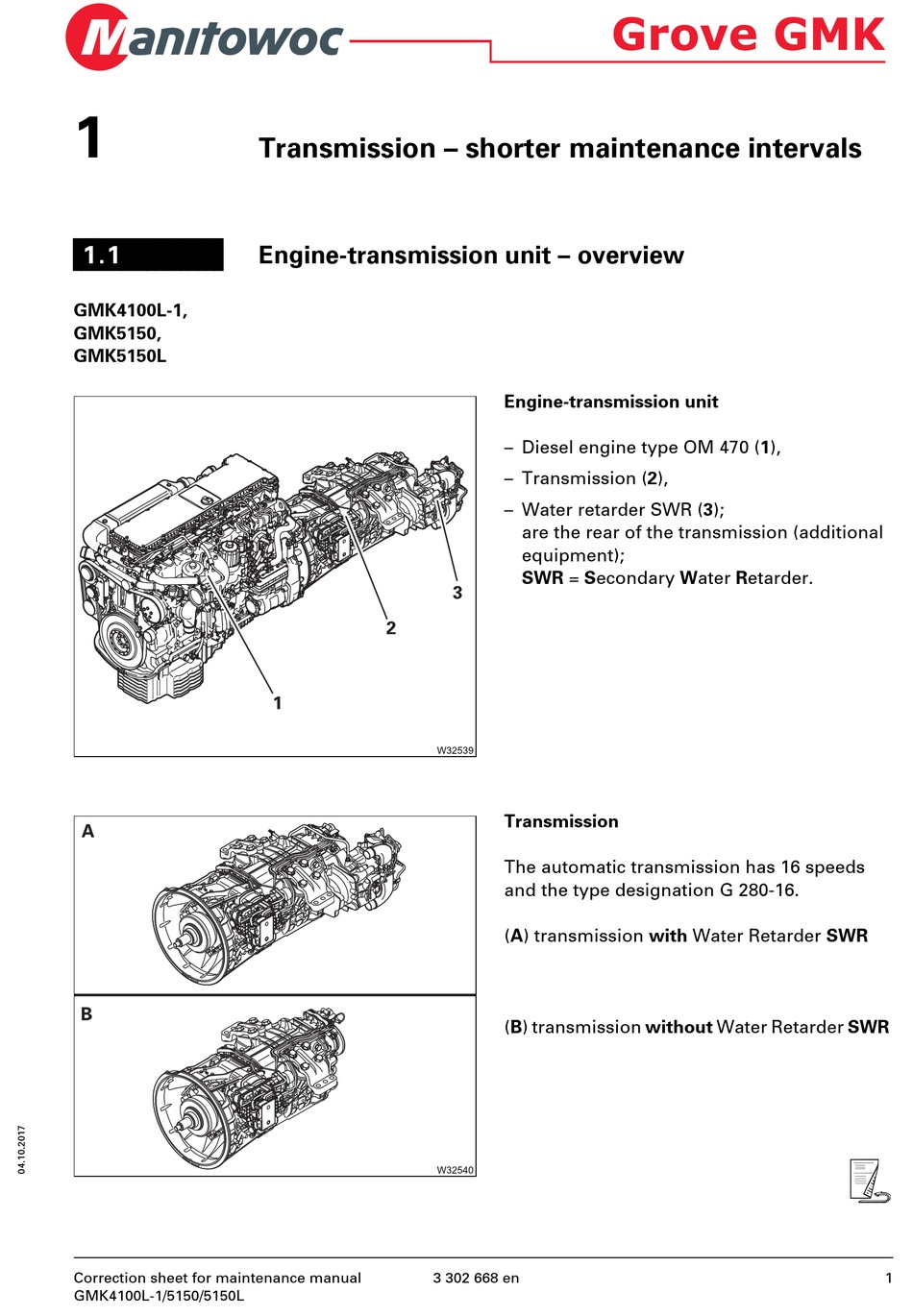

Engine-transmission unit – overview
Engine-transmission unit
– Diesel engine type OM 470 (1),
– Transmission (2),
– Water retarder SWR (3);
are the rear of the transmission (additional
equipment);
SWR = Secondary Water Retarder.
Transmission
The automatic transmission has 16 speeds
and the type designation G 280-16.
(A) transmission with Water Retarder SWR
(B) transmission without Water Retarder SWR
3 302 668 en
s
1
