Spraying
G
Maintenance manual
GMK 4100L-1
Risk of injury to the eyes.
While working with the spray extension you could be hit by the spray jet or
spray droplets. Wear protective goggles, protective clothing and gloves.
•
Let the corrosion protection dry for one hour.
•
Check that a transparent waxy protective film has covered the entire
surface.
•
Make sure that you do not spray running
surfaces. There is a risk of slipping.
•

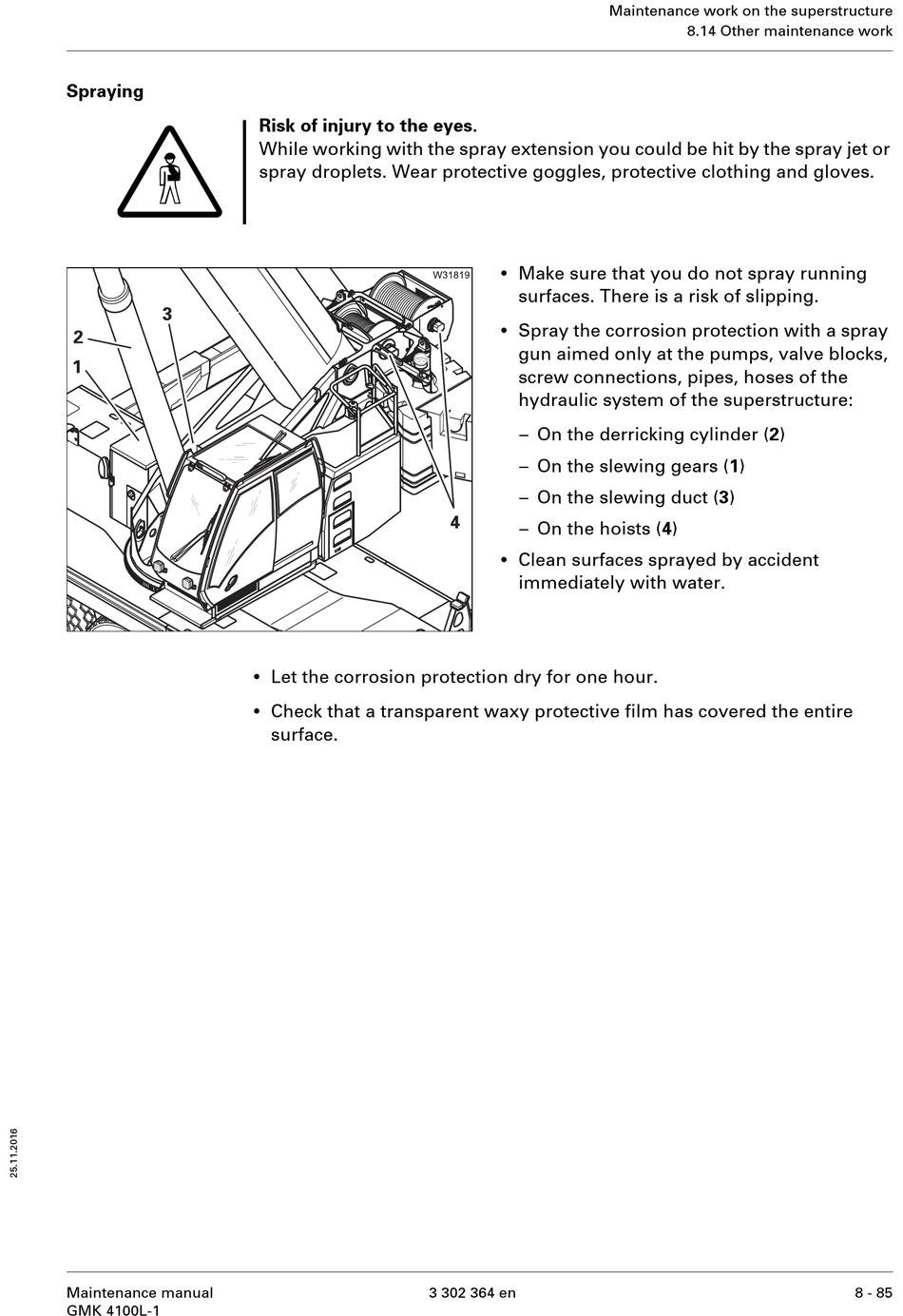

Spray the corrosion protection with a spray
gun aimed only at the pumps, valve blocks,
screw connections, pipes, hoses of the
hydraulic system of the superstructure:
– On the derricking cylinder (2)
– On the slewing gears (1)
– On the slewing duct (3)
– On the hoists (4)
•
Clean surfaces sprayed by accident
immediately with water.
3 302 364 en
Maintenance work on the superstructure
8.14 Other maintenance work
8 - 85
