7.15.8
Spare parts
and tools
Prerequisites
Maintenance manual
GMK 4100L-1

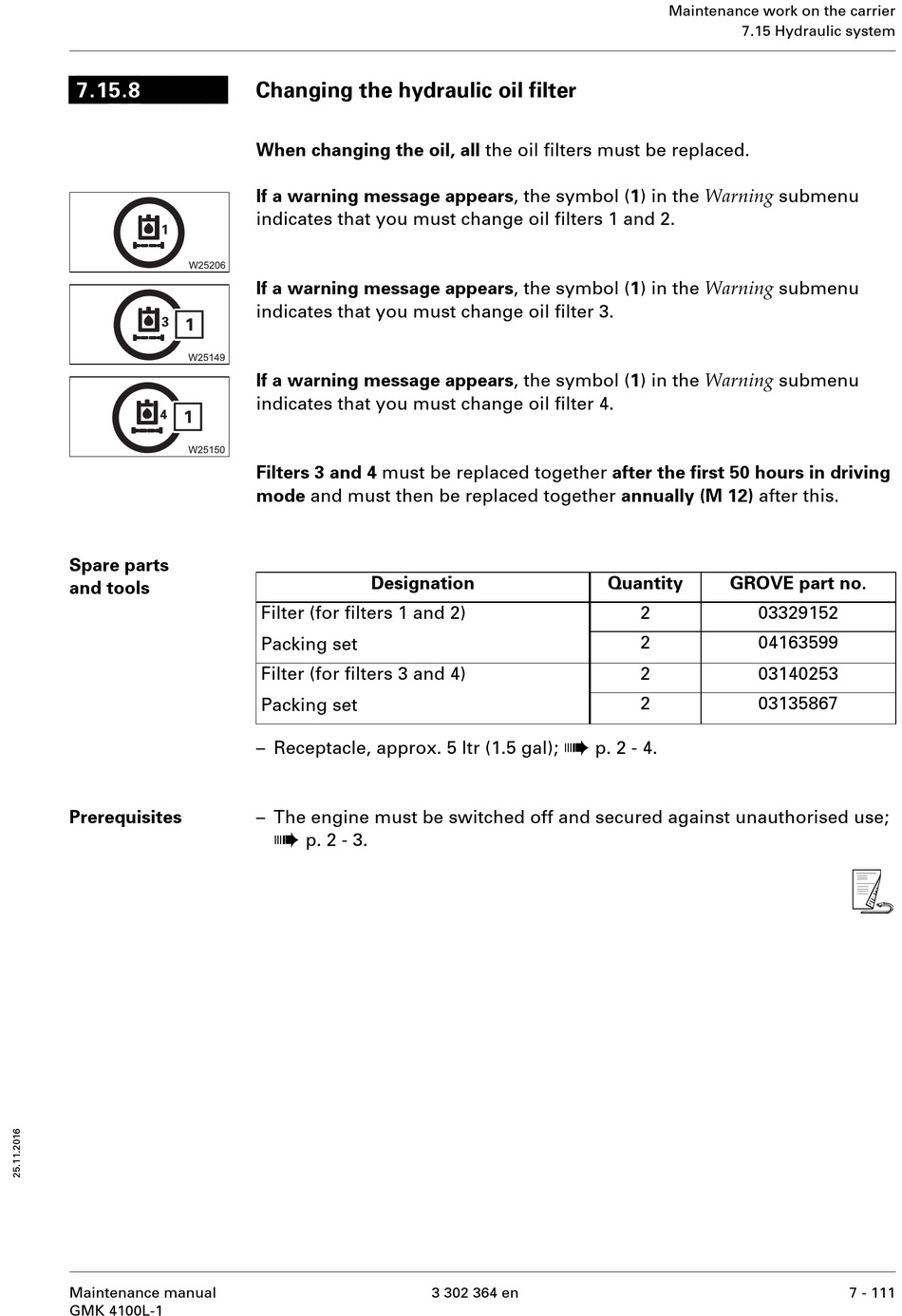

Changing the hydraulic oil filter

When changing the oil, all the oil filters must be replaced.
If a warning message appears, the symbol (1) in the Warning submenu
indicates that you must change oil filters 1 and 2.
If a warning message appears, the symbol (1) in the Warning submenu
indicates that you must change oil filter 3.
If a warning message appears, the symbol (1) in the Warning submenu
indicates that you must change oil filter 4.
Filters 3 and 4 must be replaced together after the first 50 hours in driving
mode and must then be replaced together annually (M 12) after this.
Designation
Filter (for filters 1 and 2)
Packing set
Filter (for filters 3 and 4)
Packing set
– Receptacle, approx. 5 ltr (1.5 gal);
– The engine must be switched off and secured against unauthorised use;
à
p. 2 - 3.
à
p. 2 - 4.
3 302 364 en
Maintenance work on the carrier
7.15 Hydraulic system
Quantity GROVE part no.
2 03329152
2 04163599
2 03140253
2 03135867
s
7 - 111
