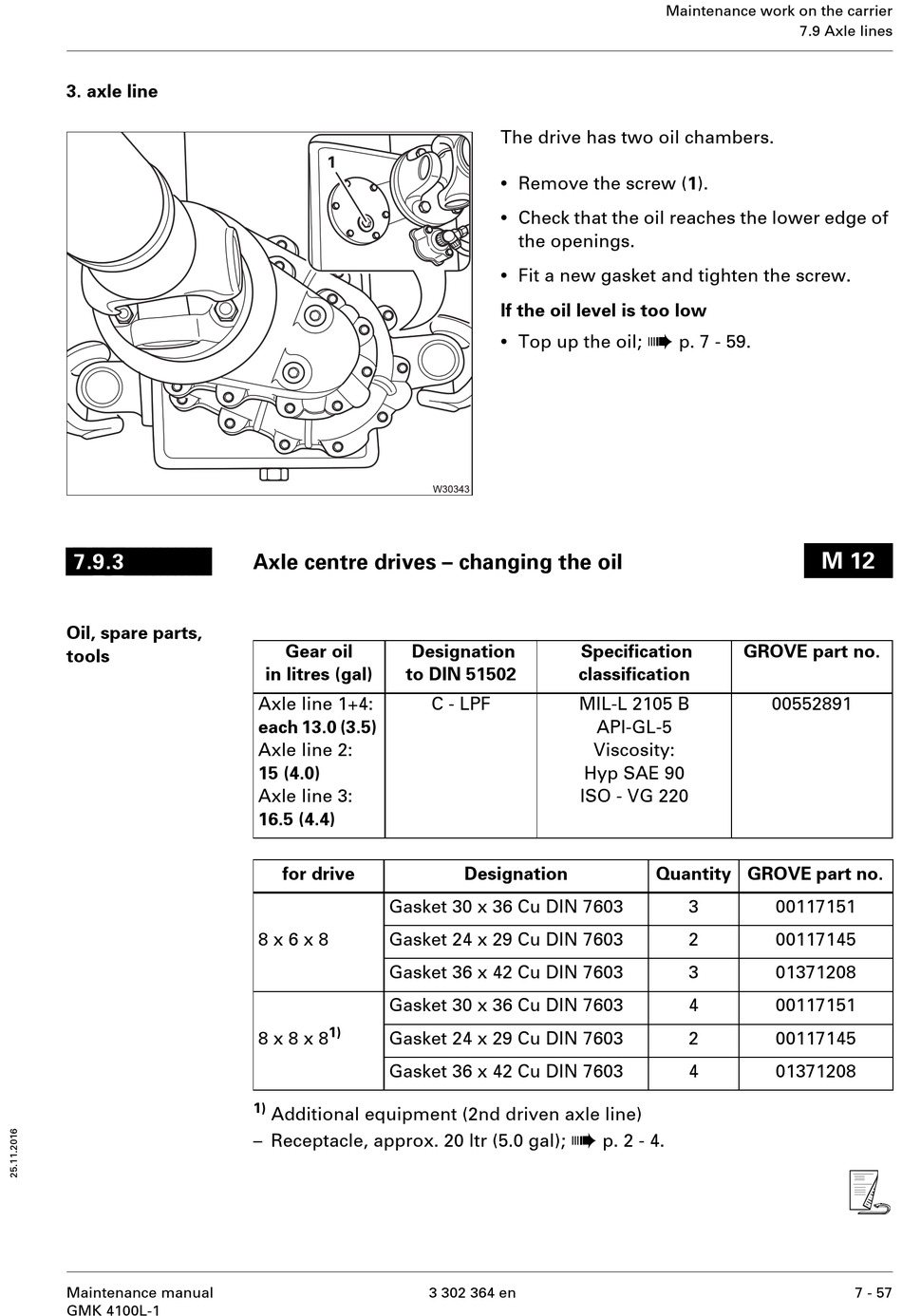

3. axle line
7.9.3
Oil, spare parts,
tools
Maintenance manual
GMK 4100L-1
Axle centre drives – changing the oil
Gear oil Designation
in litres (gal) to DIN 51502
Axle line 1+4:
each 13.0 (3.5)
Axle line 2:
15 (4.0)
Axle line 3:
16.5 (4.4)
for drive
Gasket 30 x 36 Cu DIN 7603
8 x 6 x 8 Gasket 24 x 29 Cu DIN 7603
Gasket 36 x 42 Cu DIN 7603
Gasket 30 x 36 Cu DIN 7603
1)
8 x 8 x 8 Gasket 24 x 29 Cu DIN 7603
Gasket 36 x 42 Cu DIN 7603
1)
Additional equipment (2nd driven axle line)
– Receptacle, approx. 20 ltr (5.0 gal);
The drive has two oil chambers.
•
Remove the screw (1).
•
Check that the oil reaches the lower edge of
the openings.
•
Fit a new gasket and tighten the screw.
If the oil level is too low
•
Top up the oil;
Specification
classification
C - LPF MIL-L 2105 B
API-GL-5
Viscosity:
Hyp SAE 90
ISO - VG 220
Designation
à
3 302 364 en
Maintenance work on the carrier
à
p. 7 - 59.
GROVE part no.
00552891
Quantity GROVE part no.
3
2
3
4
2
4
p. 2 - 4.
7.9 Axle lines
M 12
00117151
00117145
01371208
00117151
00117145
01371208
s
7 - 57
