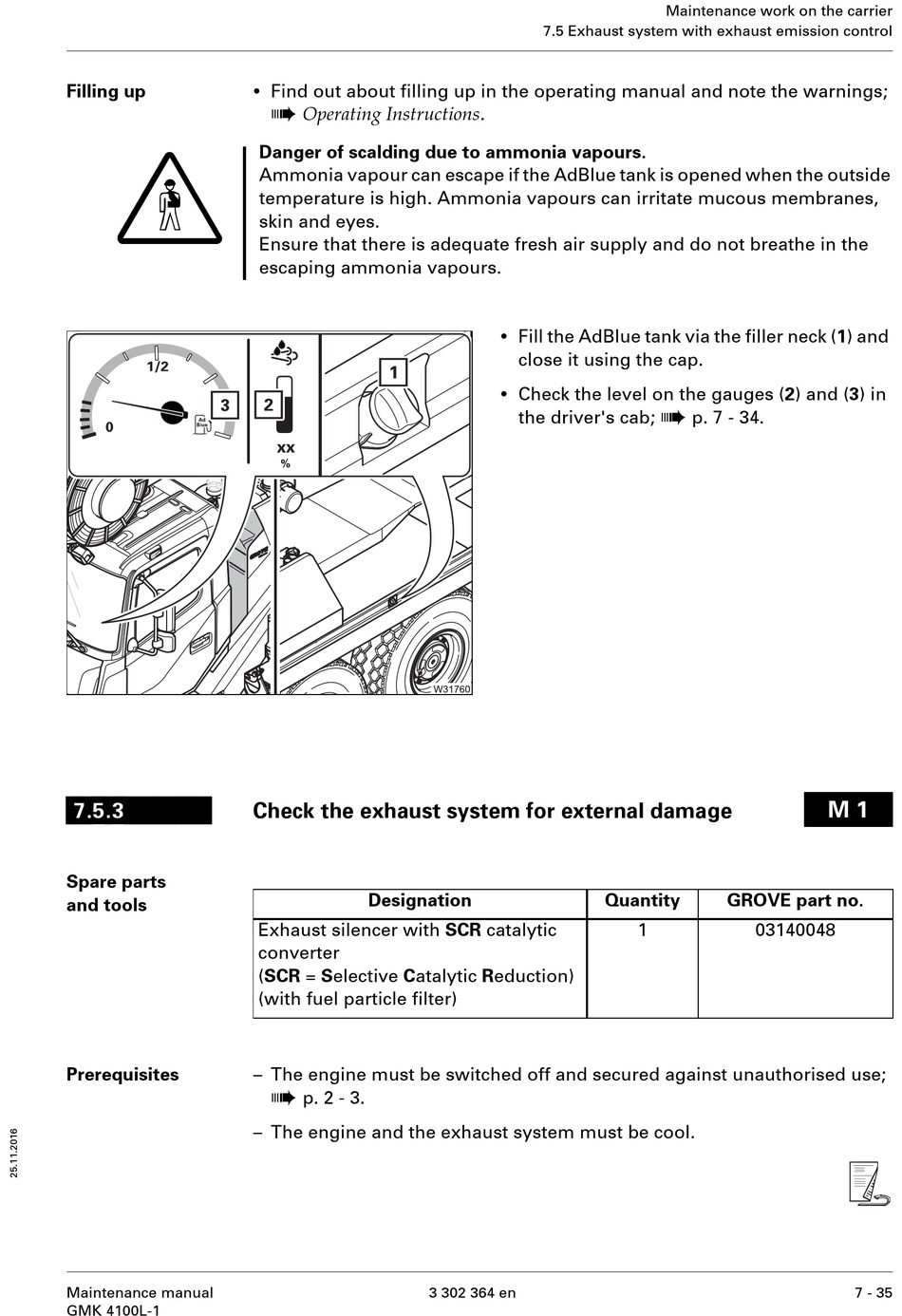

Check The Exhaust System For External Damage - Manitowoc Grove GMK 4100L-1 Maintenance Manual

Filling up
G
7.5.3
Spare parts
and tools
Prerequisites
Maintenance manual
GMK 4100L-1
•
Find out about filling up in the operating manual and note the warnings;
à
Operating Instructions .
Danger of scalding due to ammonia vapours.
Ammonia vapour can escape if the AdBlue tank is opened when the outside
temperature is high. Ammonia vapours can irritate mucous membranes,
skin and eyes.
Ensure that there is adequate fresh air supply and do not breathe in the
escaping ammonia vapours.

Check the exhaust system for external damage

Designation
Exhaust silencer with SCR catalytic
converter
(SCR = Selective Catalytic Reduction)
(with fuel particle filter)
– The engine must be switched off and secured against unauthorised use;
à
p. 2 - 3.
– The engine and the exhaust system must be cool.
7.5 Exhaust system with exhaust emission control
•
Fill the AdBlue tank via the filler neck (1) and
close it using the cap.
•
Check the level on the gauges (2) and (3) in
the driver's cab;
3 302 364 en
Maintenance work on the carrier
à
p. 7 - 34.
Quantity GROVE part no.
1 03140048
M 1
s
7 - 35
