Triggering Intermediate Lubrication - Manitowoc Grove GMK 4100L-1 Maintenance Manual

Maintenance work on the carrier
7.16 Central lubrication system
7.16.3
7 - 118

Triggering intermediate lubrication

Intermediate lubrication should be activated:
– after high pressure cleaning,
– to check the lubrication system at all lubricating points.
•
Switch on the ignition.
•

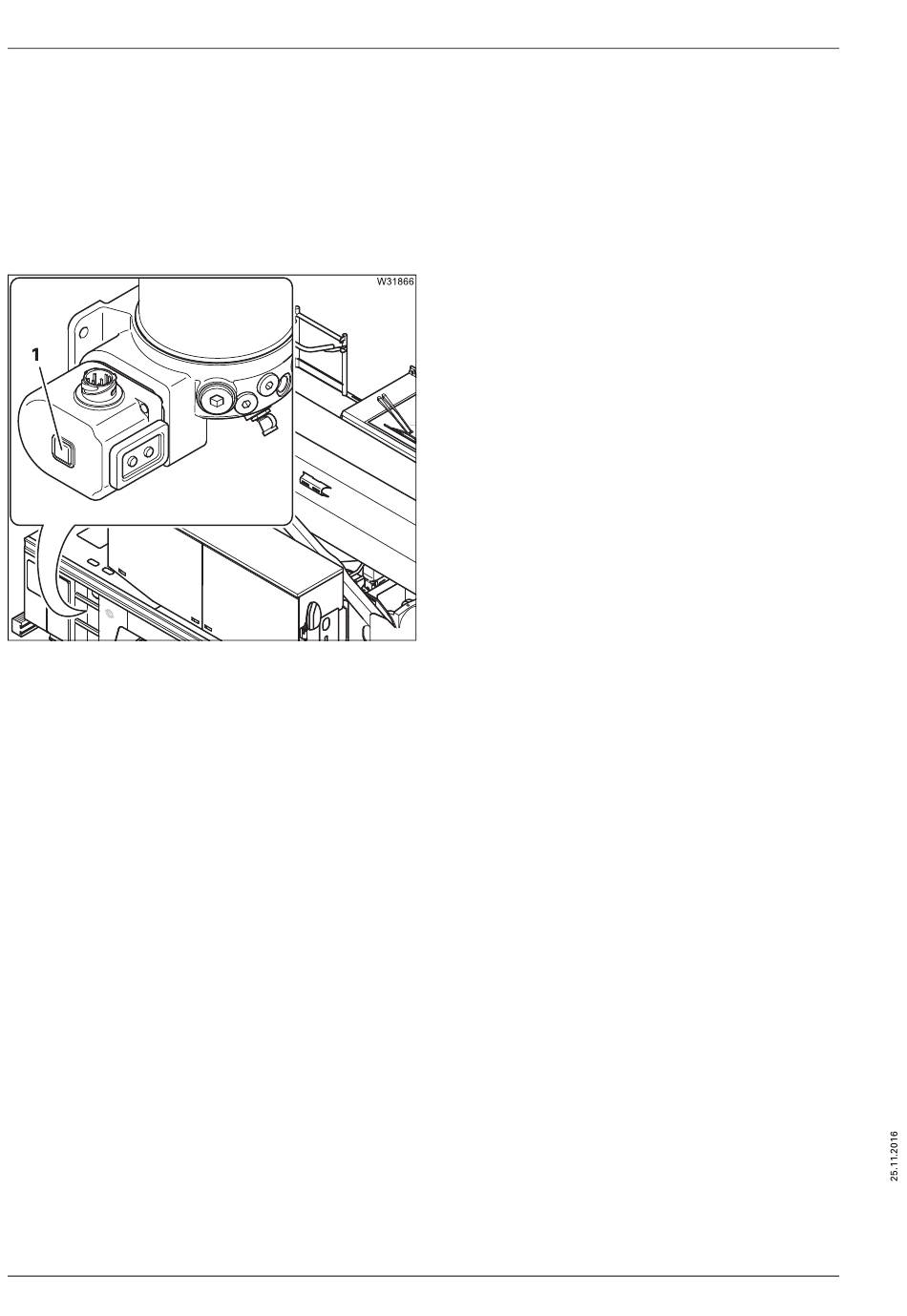

Press the button (1) once.
An intermediate lubrication cycle will be
triggered which lasts approximately 2 minutes.
Check that grease is escaping at all lubricating
points (steering arms on the 1st, 2nd, 3rd and
4th axle lines).
•
Switch off the ignition and remove any
excess grease.
3 302 364 en Maintenance manual
GMK 4100L-1
