Manitowoc Grove GMK 4100L-1 Maintenance Manual page 144

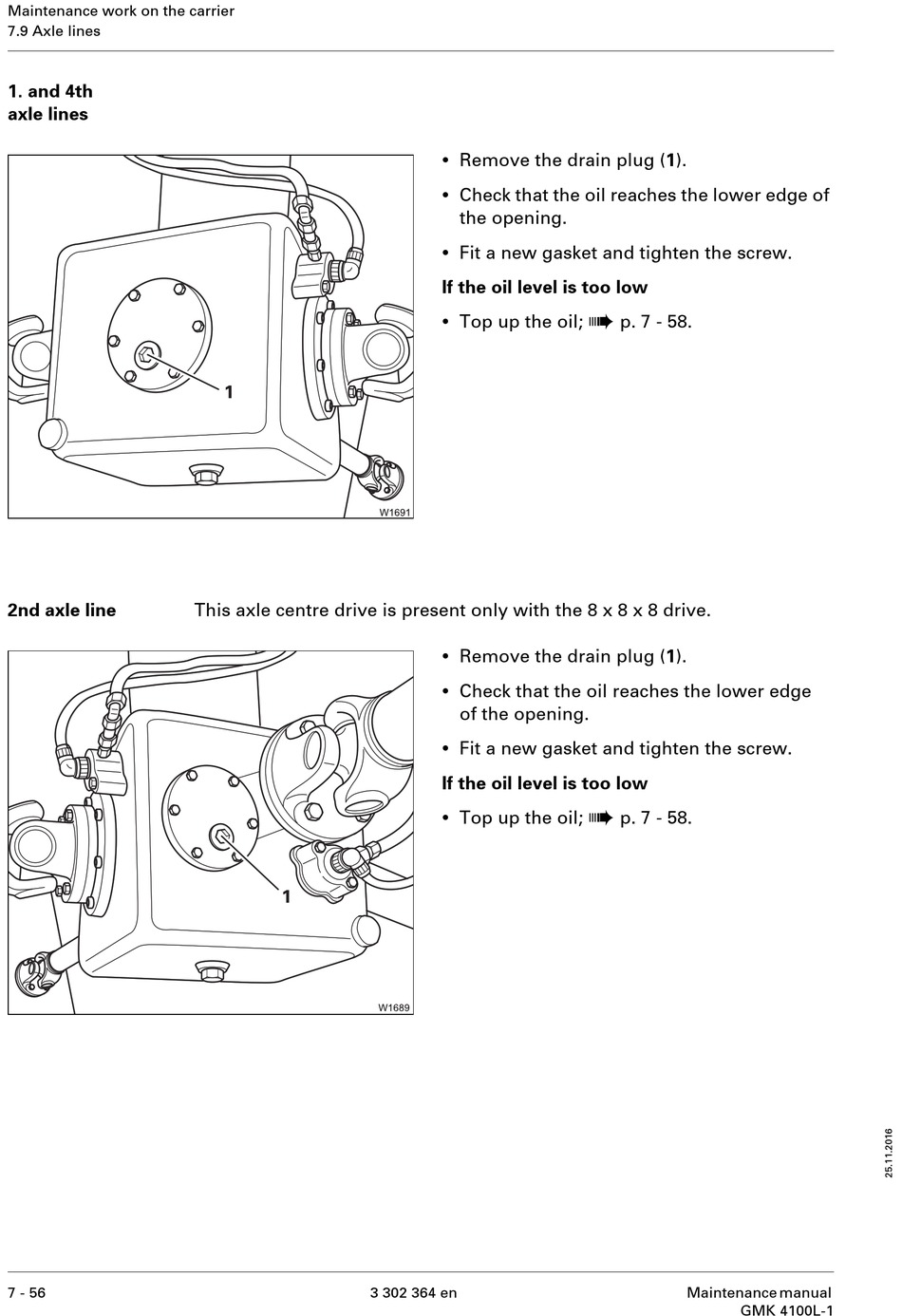

Maintenance work on the carrier
7.9 Axle lines
1. and 4th
axle lines
2nd axle line
7 - 56
This axle centre drive is present only with the 8 x 8 x 8 drive.
•
Remove the drain plug (1).
•
Check that the oil reaches the lower edge of
the opening.
•
Fit a new gasket and tighten the screw.
If the oil level is too low
•
Top up the oil;
•
Remove the drain plug (1).
•
Check that the oil reaches the lower edge
of the opening.
•
Fit a new gasket and tighten the screw.
If the oil level is too low
•
Top up the oil;
3 302 364 en
à
p. 7 - 58.
à
p. 7 - 58.
Maintenance manual
GMK 4100L-1
