Manitowoc Grove GMK 4100L-1 Maintenance Manual page 201

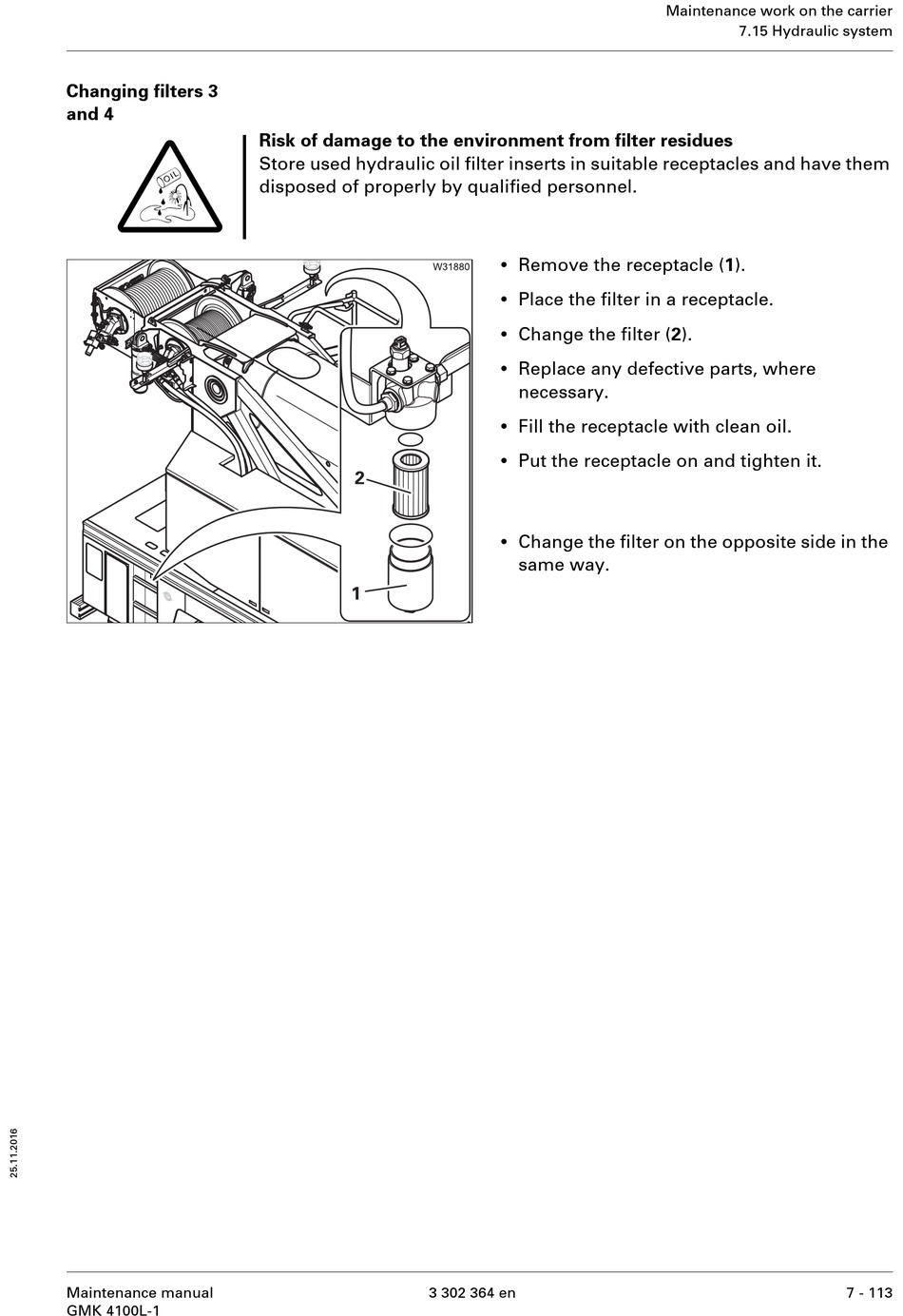

Changing filters 3
and 4
O
Maintenance manual
GMK 4100L-1
Risk of damage to the environment from filter residues
Store used hydraulic oil filter inserts in suitable receptacles and have them
disposed of properly by qualified personnel.
3 302 364 en
Maintenance work on the carrier
•
Remove the receptacle (1).
•
Place the filter in a receptacle.
•
Change the filter (2).
•
Replace any defective parts, where
necessary.
•
Fill the receptacle with clean oil.
•
Put the receptacle on and tighten it.
•
Change the filter on the opposite side in the
same way.
7.15 Hydraulic system
7 - 113
