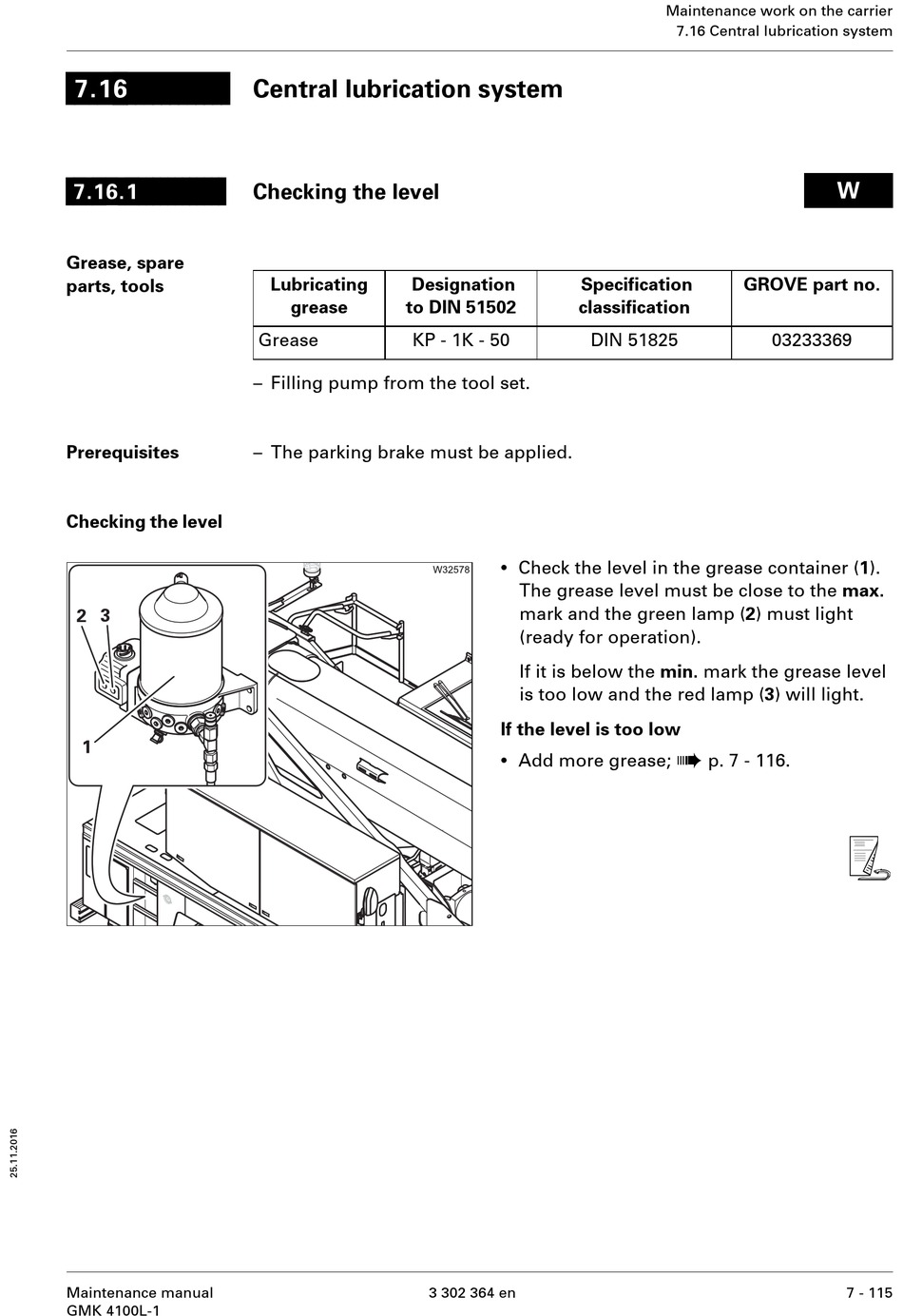

Central Lubrication System; Checking The Level - Manitowoc Grove GMK 4100L-1 Maintenance Manual

7.16
7.16.1
Grease, spare
parts, tools
Prerequisites

Checking the level

Maintenance manual
GMK 4100L-1

Central lubrication system

Checking the level
Lubricating Designation
grease to DIN 51502
Grease KP - 1K - 50
– Filling pump from the tool set.
– The parking brake must be applied.
Specification
classification
DIN 51825
•
Check the level in the grease container (1).
The grease level must be close to the max.
mark and the green lamp (2) must light
(ready for operation).
If it is below the min. mark the grease level
is too low and the red lamp (3) will light.
If the level is too low
•
Add more grease;
3 302 364 en
Maintenance work on the carrier
7.16 Central lubrication system
GROVE part no.
03233369
à
p. 7 - 116.
W
s
7 - 115
