7.16
7.16.1
Grease, spare
parts, tools
Prerequisites

Checking the level

Maintenance manual
GMK5250L

Central lubrication system

Checking the level
Lubricating Designation to
grease DIN 51502
Grease KP - 1K - 50
– Filling pump from the tool set.
– The parking brake must be engaged.
Specification
Classification
DIN 51825
•

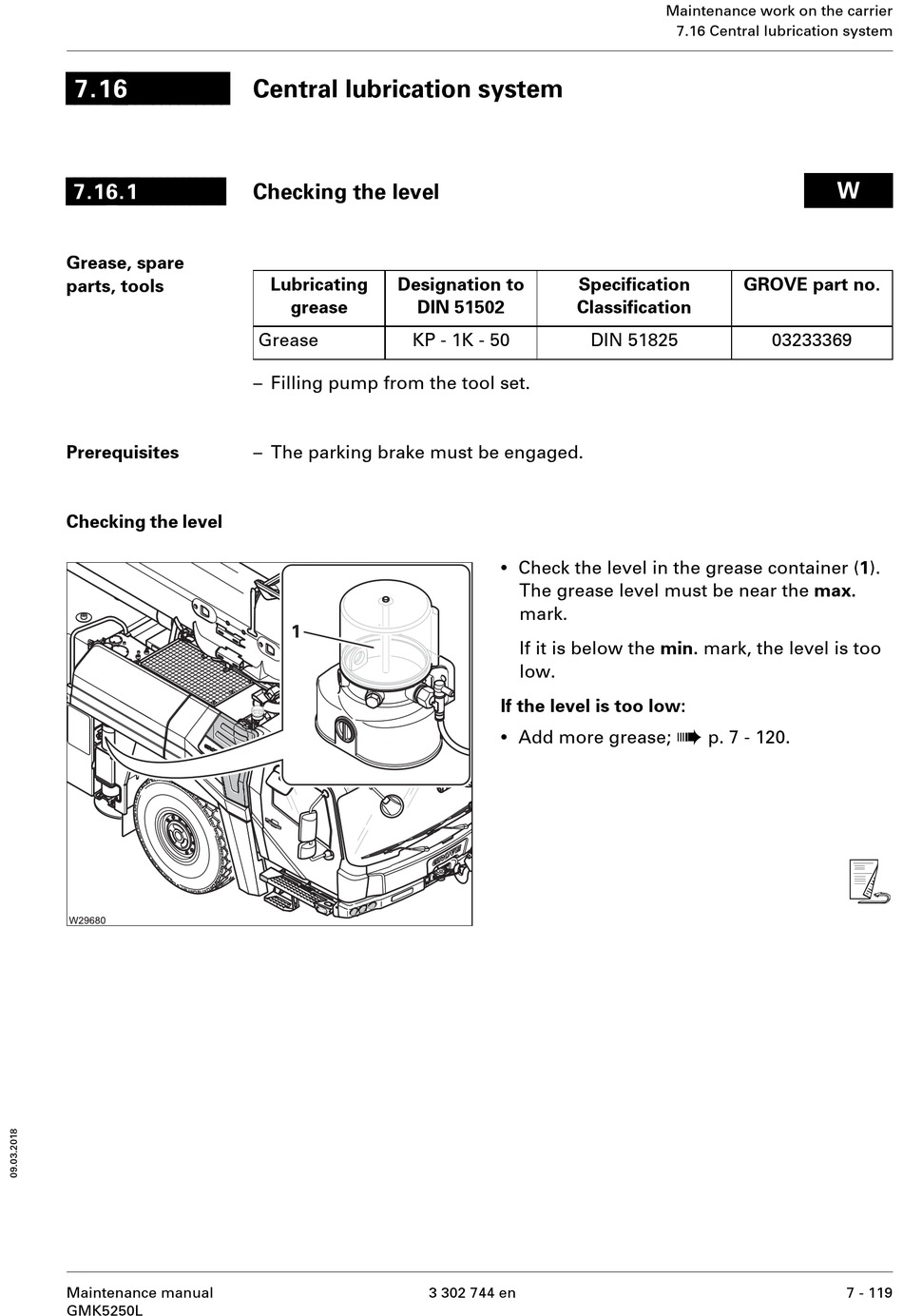

Check the level in the grease container (1).
The grease level must be near the max.
mark.
If it is below the min. mark, the level is too
low.
If the level is too low:
•
Add more grease;
3 302 744 en
Maintenance work on the carrier
7.16 Central lubrication system
GROVE part no.
03233369
à
p. 7 - 120.
W
s
7 - 119
