Maintenance work on the carrier
7.4 Fuel system
7.4.1
Spare parts
and tools
Prerequisites
Draining off water
O
7 - 28

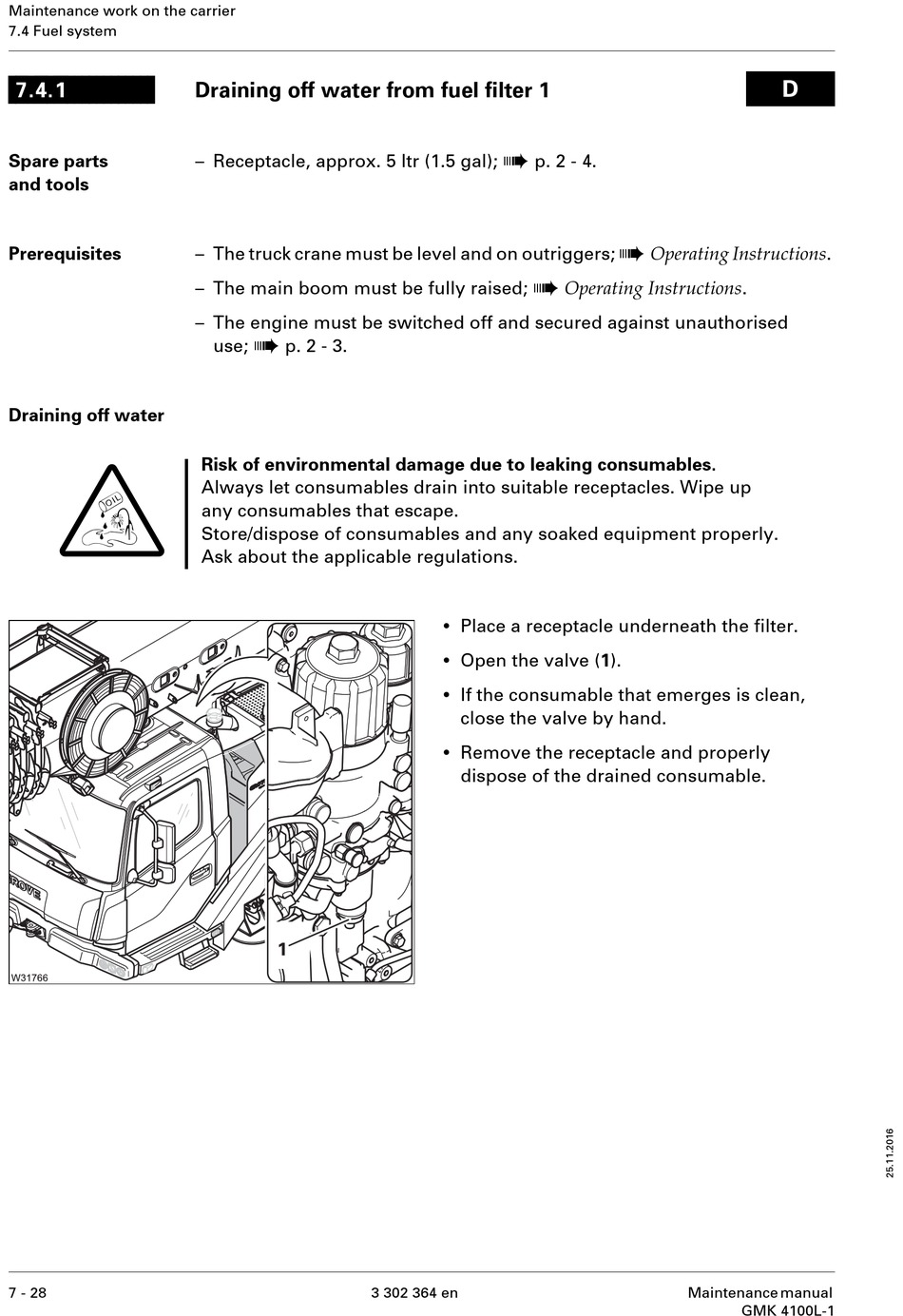

Draining off water from fuel filter 1

– Receptacle, approx. 5 ltr (1.5 gal);
– The truck crane must be level and on outriggers;
– The main boom must be fully raised;
– The engine must be switched off and secured against unauthorised
à
use; p. 2 - 3.
Risk of environmental damage due to leaking consumables.
Always let consumables drain into suitable receptacles. Wipe up
any consumables that escape.
Store/dispose of consumables and any soaked equipment properly.
Ask about the applicable regulations.
à
p. 2 - 4.
à
•
Place a receptacle underneath the filter.
•
Open the valve (1).
•
If the consumable that emerges is clean,
close the valve by hand.
•
Remove the receptacle and properly
dispose of the drained consumable.
3 302 364 en
à
Operating Instructions .
Operating Instructions .
Maintenance manual
D
GMK 4100L-1
