7.15
7.15.1
Grease, spare
parts, tools
Prerequisites
Checking the fill-
ing level
Maintenance manual
GMK7450

Central lubrication system

The central lubrication system supplies the steering lever on the first, sec-
ond and third axle lines.

Checking the filling level

Lubricating Designation
grease to DIN 51502
Grease KP - 1K - 50
– Filling pump from the tool set.
– The parking brake must be applied.
Specifications
Classification
DIN 51825
•

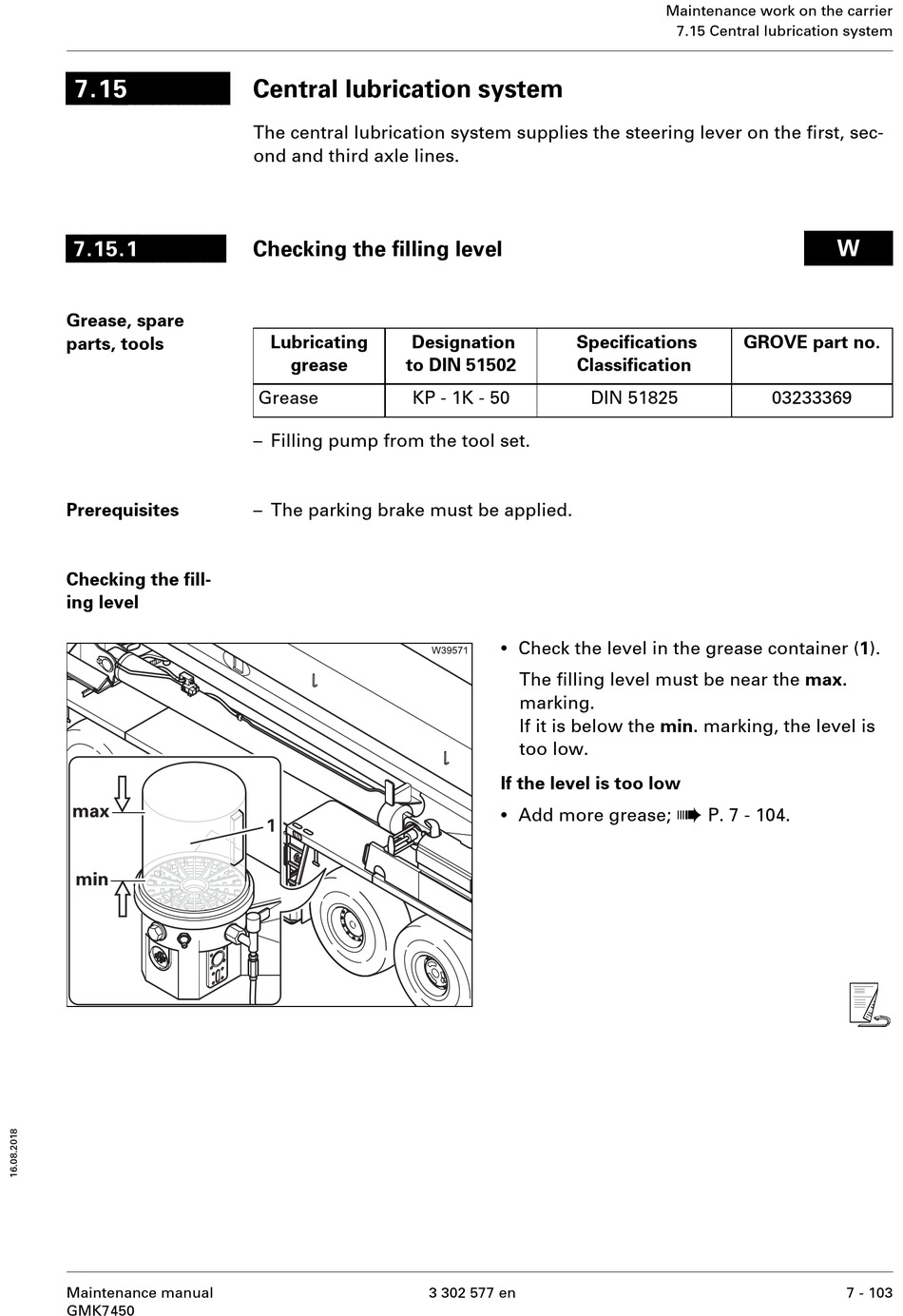

Check the level in the grease container (1).
The filling level must be near the max.
marking.
If it is below the min. marking, the level is
too low.
If the level is too low
•
Add more grease;
3 302 577 en
Maintenance work on the carrier
7.15 Central lubrication system
GROVE part no.
03233369
à
P. 7 - 104.
W
s
7 - 103
