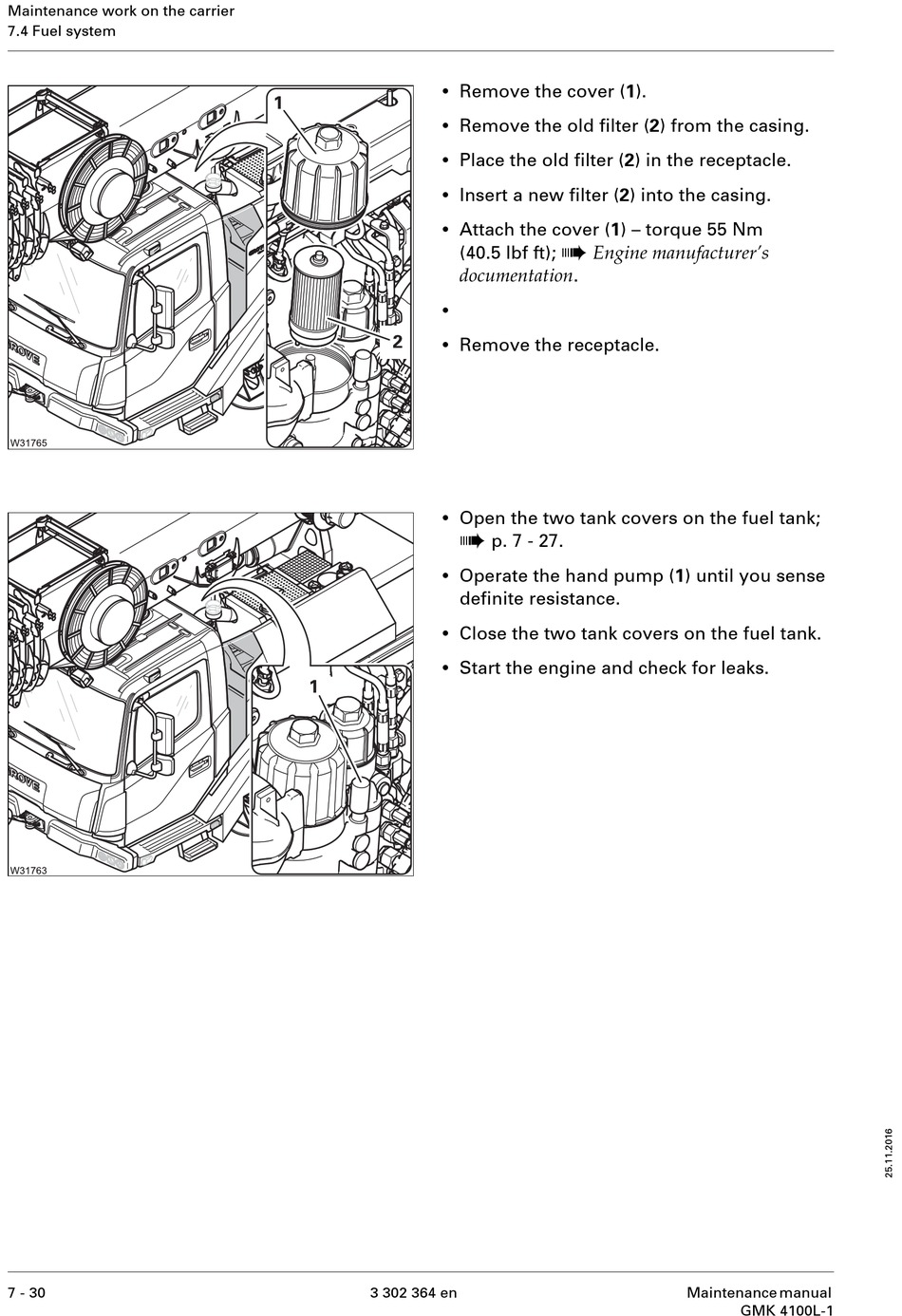

Manitowoc Grove GMK 4100L-1 Maintenance Manual page 118

Maintenance work on the carrier
7.4 Fuel system
7 - 30
•
Remove the cover (1).
•
Remove the old filter (2) from the casing.
•
Place the old filter (2) in the receptacle.
•
Insert a new filter (2) into the casing.
•
Attach the cover (1) – torque 55 Nm
(40.5 lbf ft);
documentation .
•
•
Remove the receptacle.
•
Open the two tank covers on the fuel tank;
à
p. 7 - 27.
•
Operate the hand pump (1) until you sense
definite resistance.
•
Close the two tank covers on the fuel tank.
•
Start the engine and check for leaks.
3 302 364 en
à
Engine manufacturer's
Maintenance manual
GMK 4100L-1
