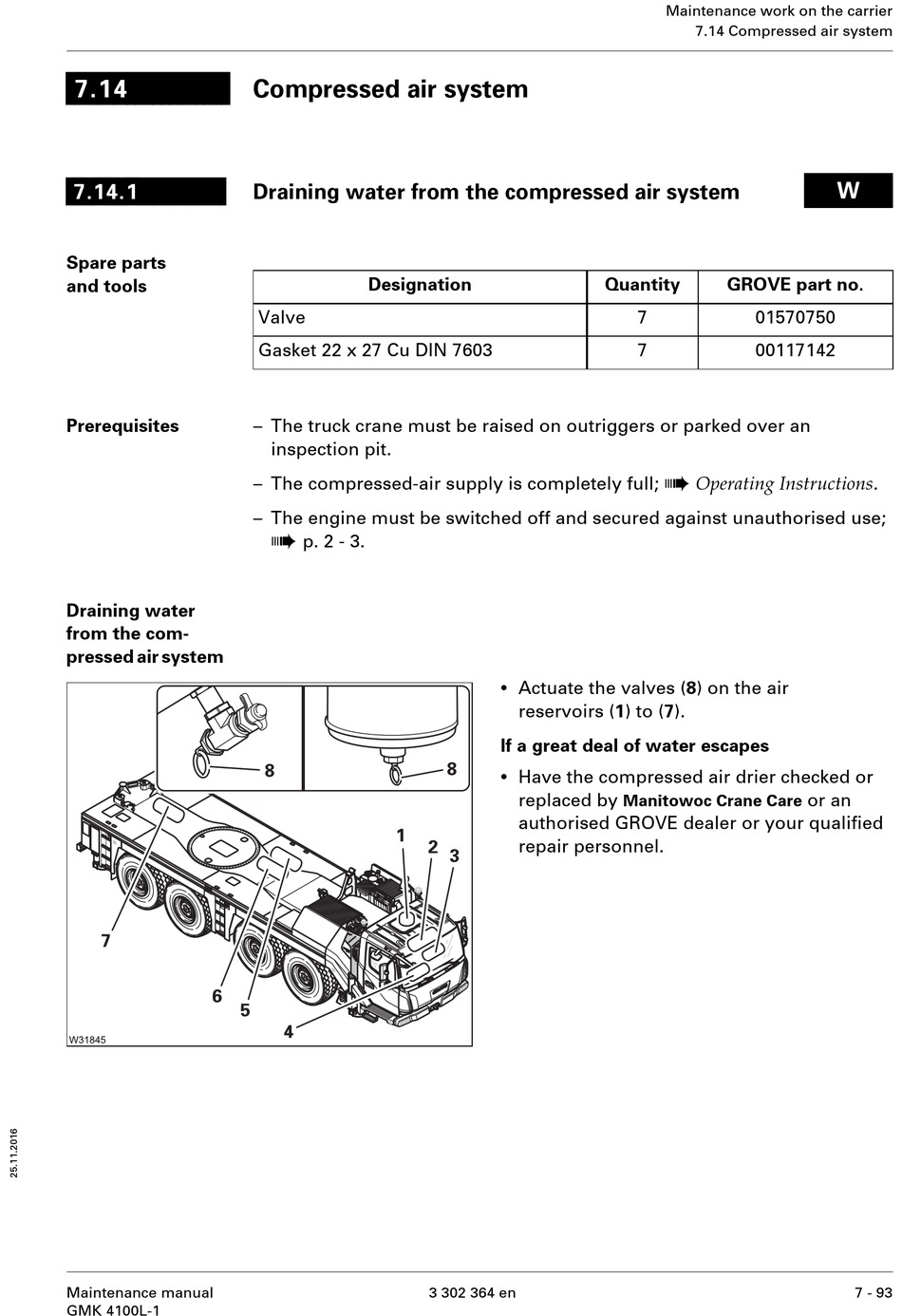

7.14
7.14.1
Spare parts
and tools
Prerequisites
Draining water
from the com-
pressed air system
Maintenance manual
GMK 4100L-1

Compressed air system

Draining water from the compressed air system

Designation
Valve
Gasket 22 x 27 Cu DIN 7603
– The truck crane must be raised on outriggers or parked over an
inspection pit.
– The compressed-air supply is completely full;
– The engine must be switched off and secured against unauthorised use;
à
p. 2 - 3.
•
Actuate the valves (8) on the air
reservoirs (1) to (7).
If a great deal of water escapes
•
Have the compressed air drier checked or
replaced by
authorised GROVE dealer or your qualified
repair personnel.
3 302 364 en
Maintenance work on the carrier
7.14 Compressed air system
Quantity GROVE part no.
7 01570750
7 00117142
à
Operating Instructions .
Manitowoc Crane Care
W
or an
