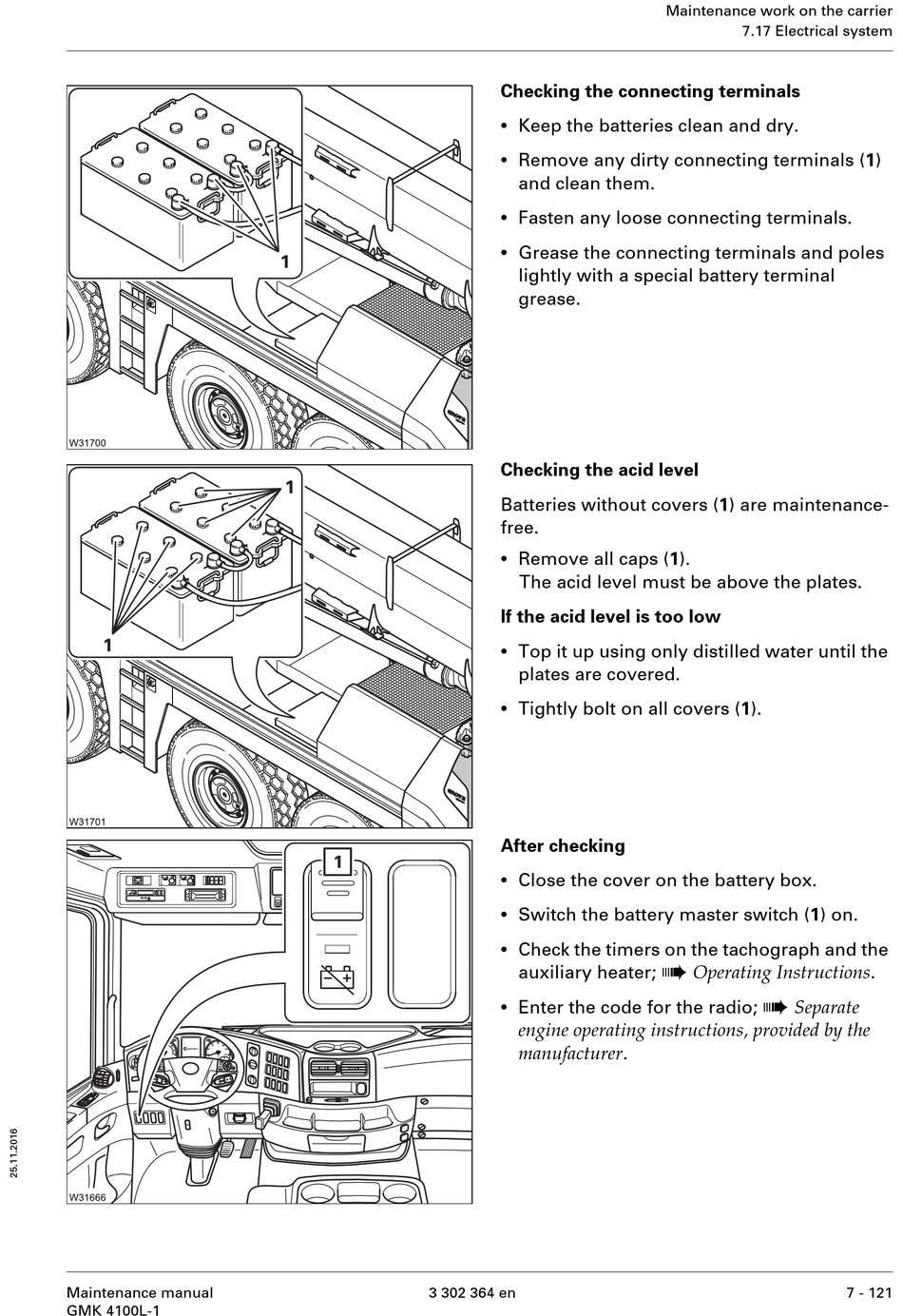

Manitowoc Grove GMK 4100L-1 Maintenance Manual page 209

Maintenance manual
GMK 4100L-1
Checking the connecting terminals
•
Keep the batteries clean and dry.
•
Remove any dirty connecting terminals (1)
and clean them.
•
Fasten any loose connecting terminals.
•
Grease the connecting terminals and poles
lightly with a special battery terminal
grease.
Checking the acid level
Batteries without covers (1) are maintenance-
free.
•
Remove all caps (1).
The acid level must be above the plates.
If the acid level is too low
•
Top it up using only distilled water until the
plates are covered.
•
Tightly bolt on all covers (1).
After checking
•
Close the cover on the battery box.
•
Switch the battery master switch (1) on.
•
Check the timers on the tachograph and the
auxiliary heater;
•
Enter the code for the radio;
engine operating instructions, provided by the
manufacturer .
3 302 364 en
Maintenance work on the carrier
7.17 Electrical system
à
Operating Instructions .
à
Separate
7 - 121
