Lubricating The Gear Teeth - Manitowoc Grove GMK 4100L-1 Maintenance Manual

8.5.2
Grease
H
Prerequisites
Lubricating
G
Maintenance manual
GMK 4100L-1

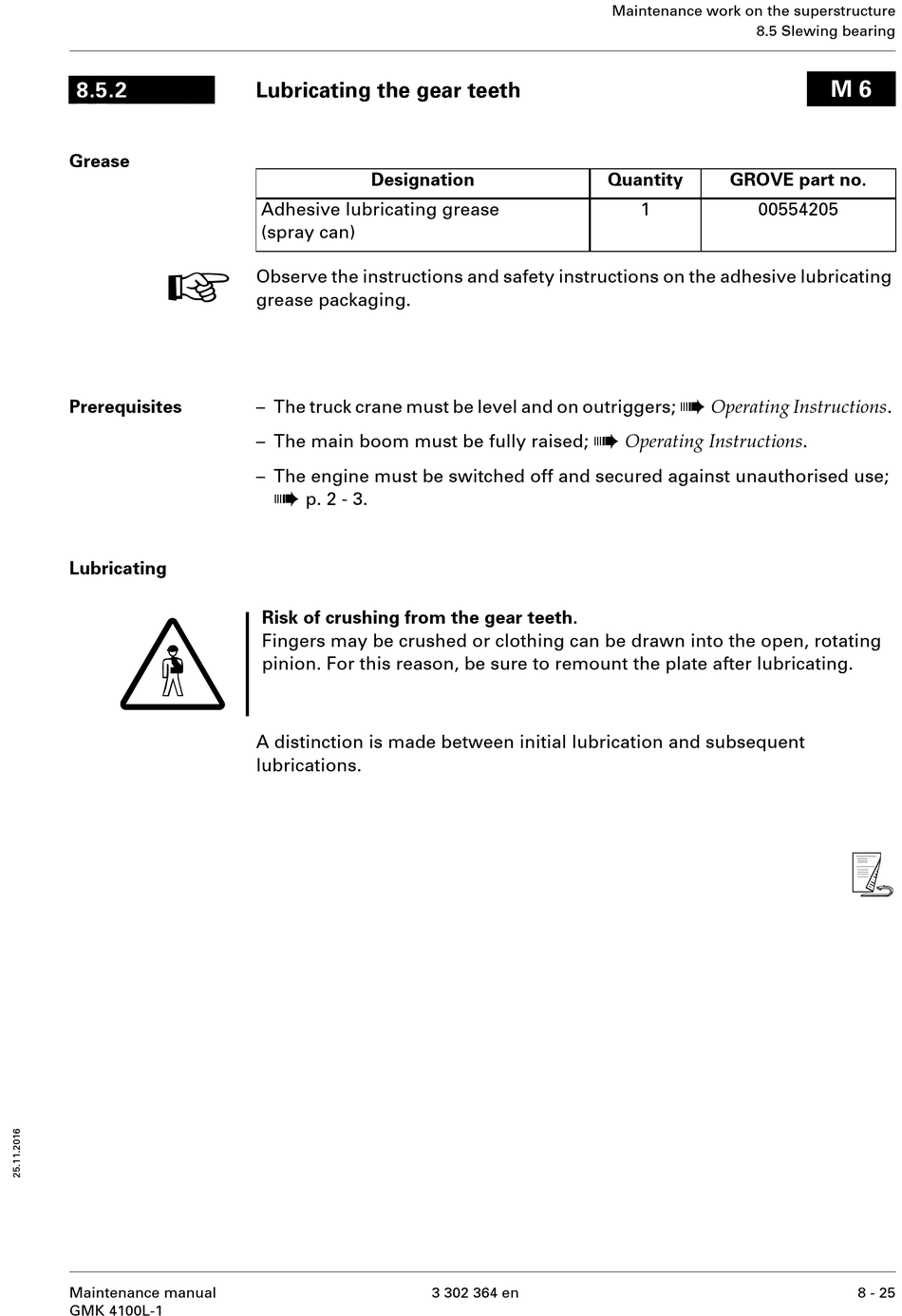

Lubricating the gear teeth

Designation
Adhesive lubricating grease
(spray can)
Observe the instructions and safety instructions on the adhesive lubricating
grease packaging.
– The truck crane must be level and on outriggers;
– The main boom must be fully raised;
– The engine must be switched off and secured against unauthorised use;
à
p. 2 - 3.
Risk of crushing from the gear teeth.
Fingers may be crushed or clothing can be drawn into the open, rotating
pinion. For this reason, be sure to remount the plate after lubricating.
A distinction is made between initial lubrication and subsequent
lubrications.
à
3 302 364 en
Maintenance work on the superstructure
8.5 Slewing bearing
Quantity GROVE part no.
1 00554205
à
Operating Instructions .
Operating Instructions .
M 6
s
8 - 25
