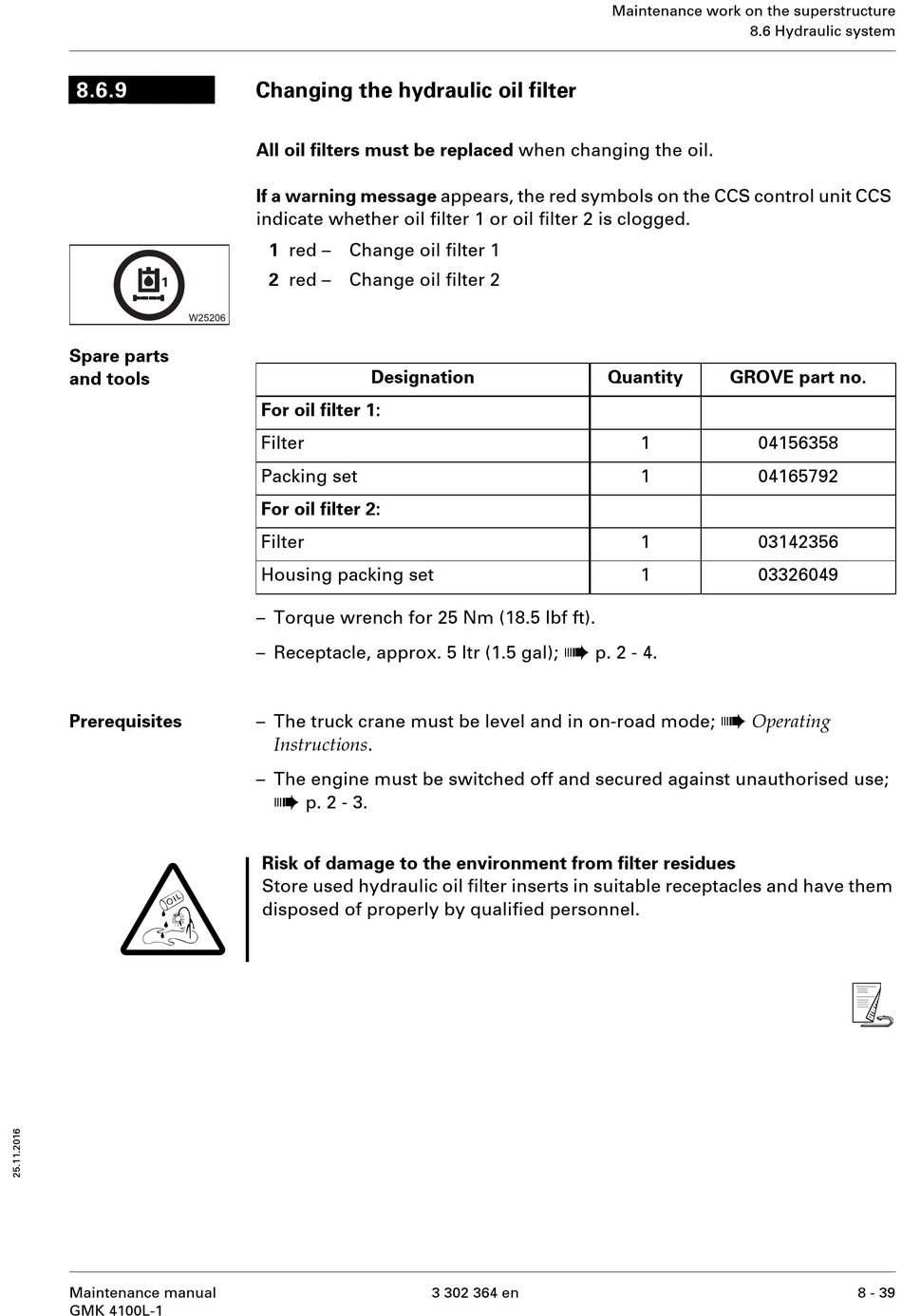

Changing the hydraulic oil filter

All oil filters must be replaced when changing the oil.
If a warning message appears, the red symbols on the CCS control unit CCS
indicate whether oil filter 1 or oil filter 2 is clogged.
1 red – Change oil filter 1
2 red – Change oil filter 2
Designation
For oil filter 1:
Filter
Packing set
For oil filter 2:
Filter
Housing packing set
– Torque wrench for 25 Nm (18.5 lbf ft).
– Receptacle, approx. 5 ltr (1.5 gal);
– The truck crane must be level and in on-road mode;
Instructions .
– The engine must be switched off and secured against unauthorised use;
à
p. 2 - 3.
Risk of damage to the environment from filter residues
Store used hydraulic oil filter inserts in suitable receptacles and have them
disposed of properly by qualified personnel.
à
p. 2 - 4.
3 302 364 en
Maintenance work on the superstructure
8.6 Hydraulic system
Quantity GROVE part no.
1 04156358
1 04165792
1 03142356
1 03326049
