7.5
Overview
Maintenance manual
GMK 4100L-1

Exhaust system with exhaust emission control

To comply with the exhaust emission regulations, the truck crane may only
be run with the exhaust system with SCR catalytic converter (SCR =
Selective Catalytic Reduction).
The exhaust gas is treated using a DEF system. To do this, AdBlue (DEF)
(Diesel Exhaust Fluid) from the DEF tank is injected into the exhaust system.
The motor output is automatically sharply reduced when there is not
enough AdBlue solution available. Driving with an empty AdBlue tank will
invalidate the truck crane's licence for use on public roads;
à
Instructions , Engine manufacturer's documentation .

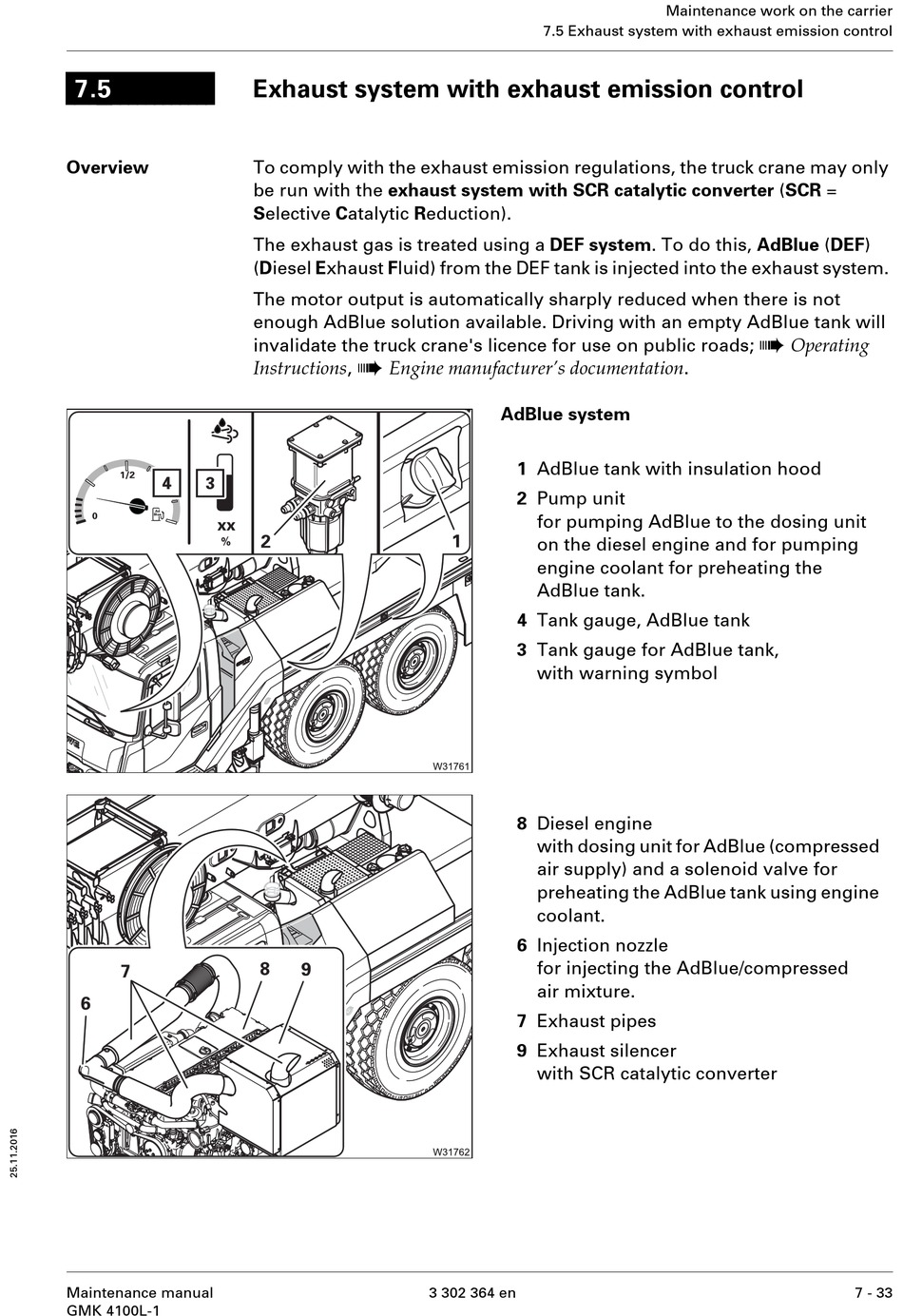

7.5 Exhaust system with exhaust emission control
AdBlue system
1 AdBlue tank with insulation hood
2 Pump unit
for pumping AdBlue to the dosing unit
on the diesel engine and for pumping
engine coolant for preheating the
AdBlue tank.
4 Tank gauge, AdBlue tank
3 Tank gauge for AdBlue tank,
with warning symbol
8 Diesel engine
with dosing unit for AdBlue (compressed
air supply) and a solenoid valve for
preheating the AdBlue tank using engine
coolant.
6 Injection nozzle
for injecting the AdBlue/compressed
air mixture.
7 Exhaust pipes
9 Exhaust silencer
with SCR catalytic converter
3 302 364 en
Maintenance work on the carrier
à
Operating
7 - 33
