7.2
CCS
Maintenance
submenu
Maintenance manual
GMK 4100L-1

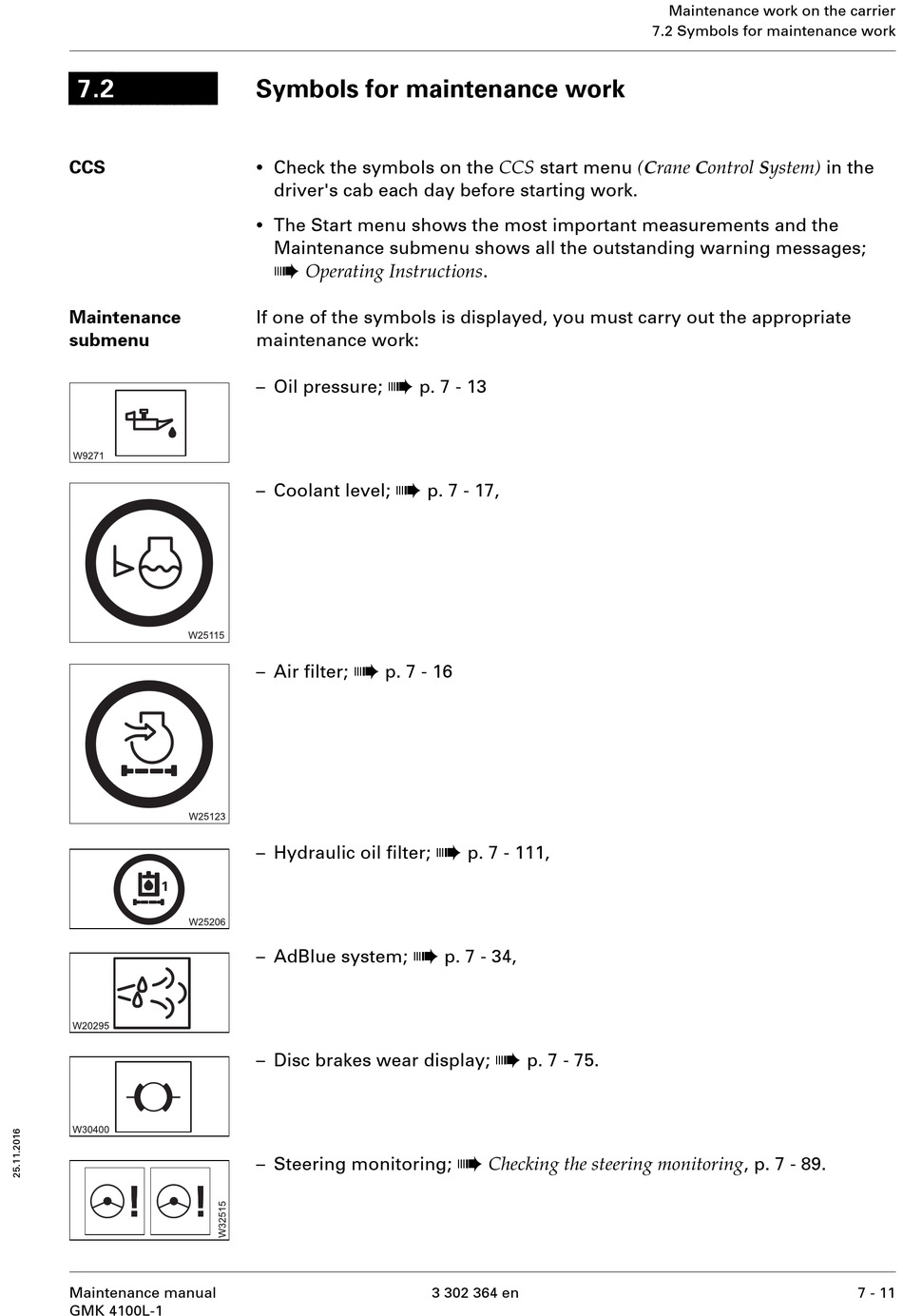

Symbols for maintenance work

•
Check the symbols on the CCS start menu (Crane Control System) in the
driver's cab each day before starting work.
•
The Start menu shows the most important measurements and the
Maintenance submenu shows all the outstanding warning messages;
à
Operating Instructions .
If one of the symbols is displayed, you must carry out the appropriate
maintenance work:
à
– Oil pressure; p. 7 - 13
à
– Coolant level;
à
– Air filter; p. 7 - 16
– Hydraulic oil filter;
à
– AdBlue system;
– Disc brakes wear display;
– Steering monitoring;
p. 7 - 17,
à
p. 7 - 111,
p. 7 - 34,
à
p. 7 - 75.
à
Checking the steering monitoring , p. 7 - 89.
3 302 364 en
Maintenance work on the carrier
7.2 Symbols for maintenance work
7 - 11
