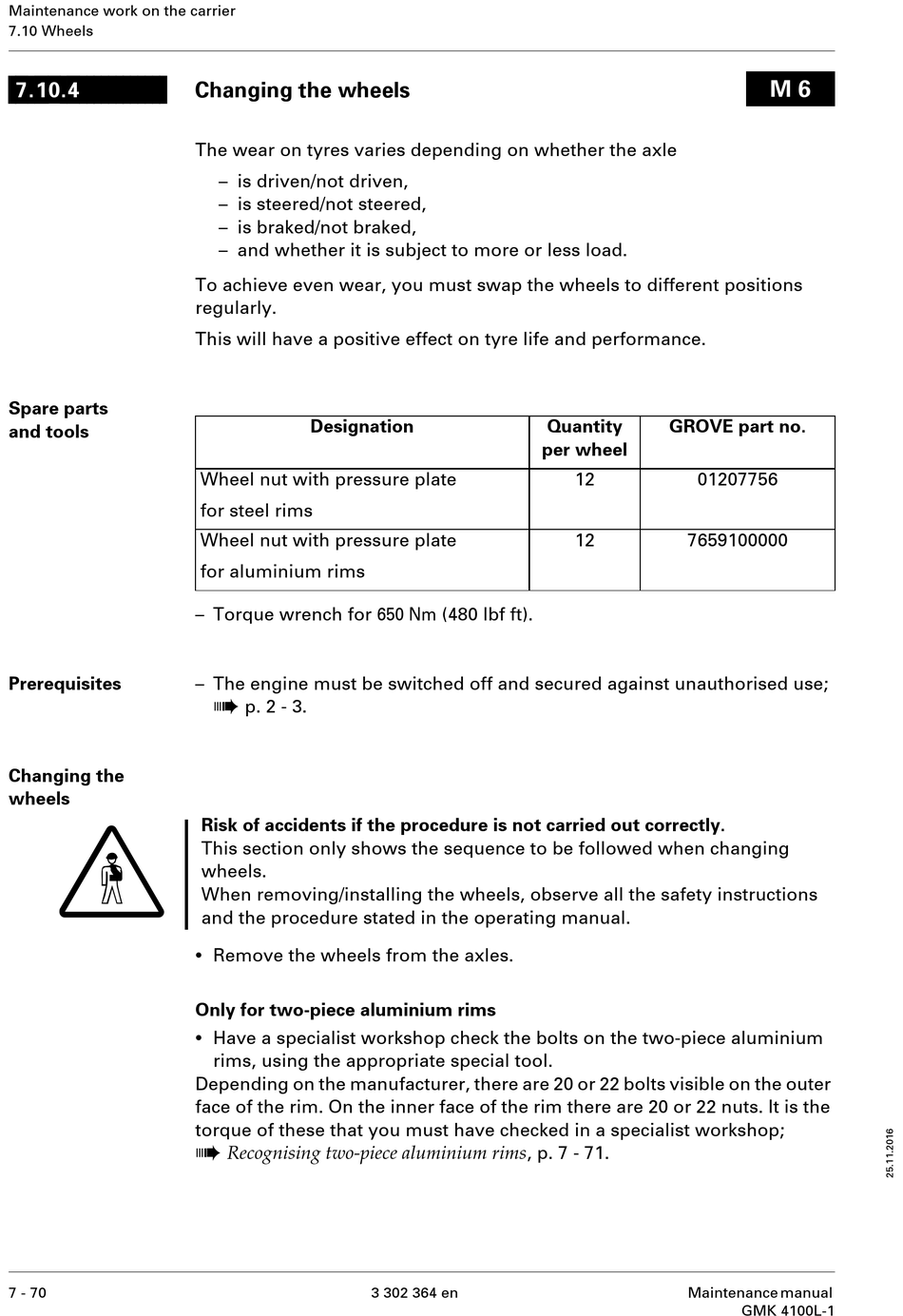

Maintenance work on the carrier
7.10 Wheels
7.10.4
Spare parts
and tools
Prerequisites
Changing the
wheels
G
7 - 70

Changing the wheels

The wear on tyres varies depending on whether the axle
– is driven/not driven,
– is steered/not steered,
– is braked/not braked,
– and whether it is subject to more or less load.
To achieve even wear, you must swap the wheels to different positions
regularly.
This will have a positive effect on tyre life and performance.
Designation
Wheel nut with pressure plate
for steel rims
Wheel nut with pressure plate
for aluminium rims
– Torque wrench for 650 Nm (480 lbf ft).
– The engine must be switched off and secured against unauthorised use;
à
p. 2 - 3.
Risk of accidents if the procedure is not carried out correctly.
This section only shows the sequence to be followed when changing
wheels.
When removing/installing the wheels, observe all the safety instructions
and the procedure stated in the operating manual.
•
Remove the wheels from the axles.
Only for two-piece aluminium rims
•
Have a specialist workshop check the bolts on the two-piece aluminium
rims, using the appropriate special tool.
Depending on the manufacturer, there are 20 or 22 bolts visible on the outer
face of the rim. On the inner face of the rim there are 20 or 22 nuts. It is the
torque of these that you must have checked in a specialist workshop;
à
Recognising two-piece aluminium rims , p. 7 - 71.
3 302 364 en
Quantity GROVE part no.
per wheel
12 01207756
12 7659100000
Maintenance manual
M 6
GMK 4100L-1
