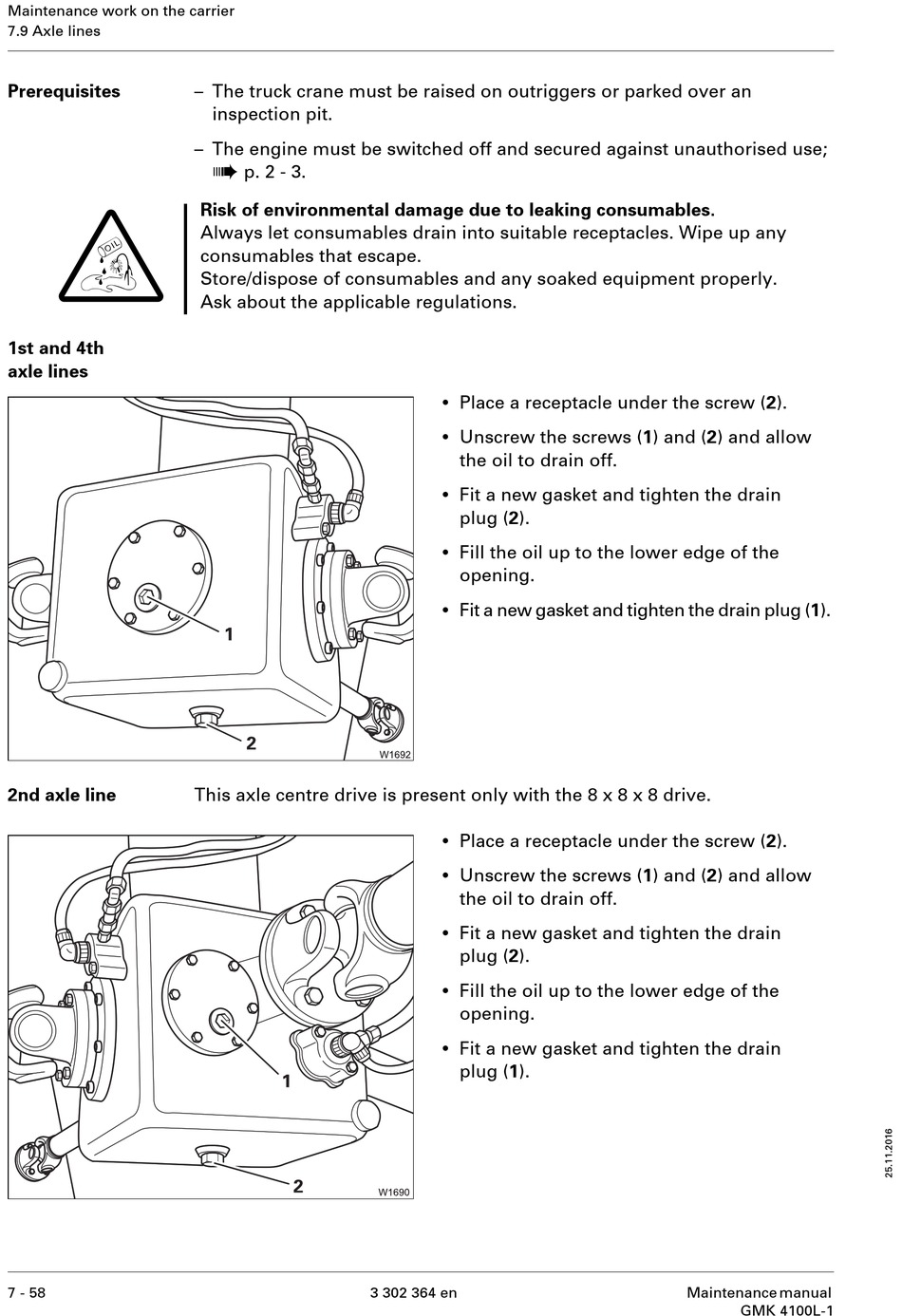

Manitowoc Grove GMK 4100L-1 Maintenance Manual page 146

Maintenance work on the carrier
7.9 Axle lines
Prerequisites
O
1st and 4th
axle lines
2nd axle line
7 - 58
– The truck crane must be raised on outriggers or parked over an
inspection pit.
– The engine must be switched off and secured against unauthorised use;
à
p. 2 - 3.
Risk of environmental damage due to leaking consumables.
Always let consumables drain into suitable receptacles. Wipe up any
consumables that escape.
Store/dispose of consumables and any soaked equipment properly.
Ask about the applicable regulations.
This axle centre drive is present only with the 8 x 8 x 8 drive.
•
Place a receptacle under the screw (2).
•
Unscrew the screws (1) and (2) and allow
the oil to drain off.
•
Fit a new gasket and tighten the drain
plug (2).
•
Fill the oil up to the lower edge of the
opening.
•
Fit a new gasket and tighten the drain plug (1).
•
Place a receptacle under the screw (2).
•
Unscrew the screws (1) and (2) and allow
the oil to drain off.
•
Fit a new gasket and tighten the drain
plug (2).
•
Fill the oil up to the lower edge of the
opening.
•
Fit a new gasket and tighten the drain
plug (1).
3 302 364 en Maintenance manual
GMK 4100L-1
