Lubricating The Slewing Angle Sensor - Manitowoc Grove GMK 4100L-1 Maintenance Manual

8.9.2
Grease, spare
parts, tools
Prerequisites
S
Lubricating
Maintenance manual
GMK 4100L-1

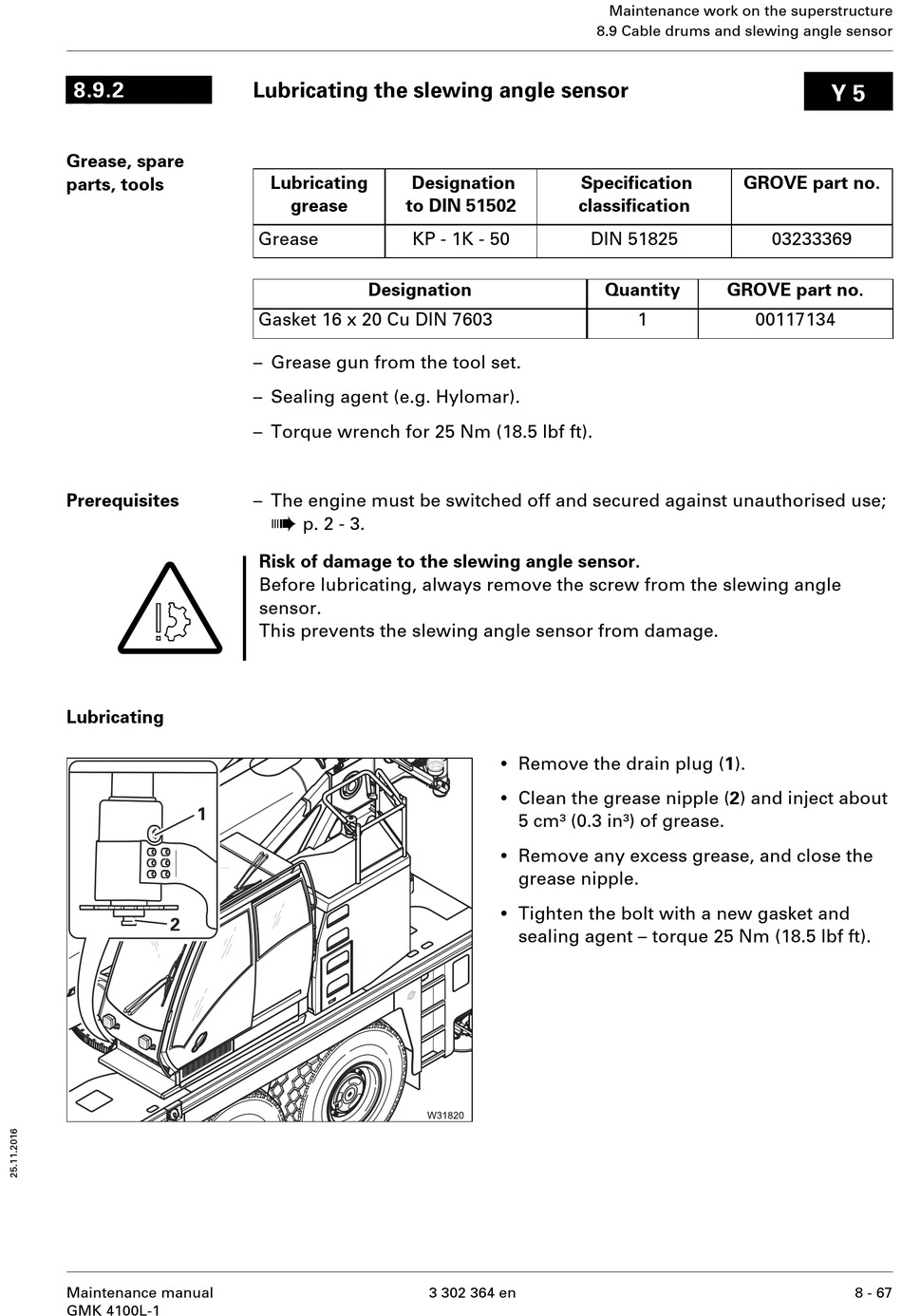

Lubricating the slewing angle sensor

Lubricating Designation
grease to DIN 51502
Grease KP - 1K - 50
Designation
Gasket 16 x 20 Cu DIN 7603
– Grease gun from the tool set.
– Sealing agent (e.g. Hylomar).
– Torque wrench for 25 Nm (18.5 lbf ft).
– The engine must be switched off and secured against unauthorised use;
à
p. 2 - 3.
Risk of damage to the slewing angle sensor.
Before lubricating, always remove the screw from the slewing angle
sensor.
This prevents the slewing angle sensor from damage.
8.9 Cable drums and slewing angle sensor
Specification
classification
DIN 51825
•
Remove the drain plug (1).
•
Clean the grease nipple (2) and inject about
5 cm³ (0.3 in³) of grease.
•
Remove any excess grease, and close the
grease nipple.
•
Tighten the bolt with a new gasket and
sealing agent – torque 25 Nm (18.5 lbf ft).
3 302 364 en
Maintenance work on the superstructure
GROVE part no.
03233369
Quantity GROVE part no.
1 00117134
Y 5
8 - 67
