Changing The Ventilation Filter - Manitowoc Grove GMK 4100L-1 Maintenance Manual

Maintenance work on the superstructure
8.6 Hydraulic system
8.6.6
Spare parts
and tools
Prerequisites
O
8 - 36

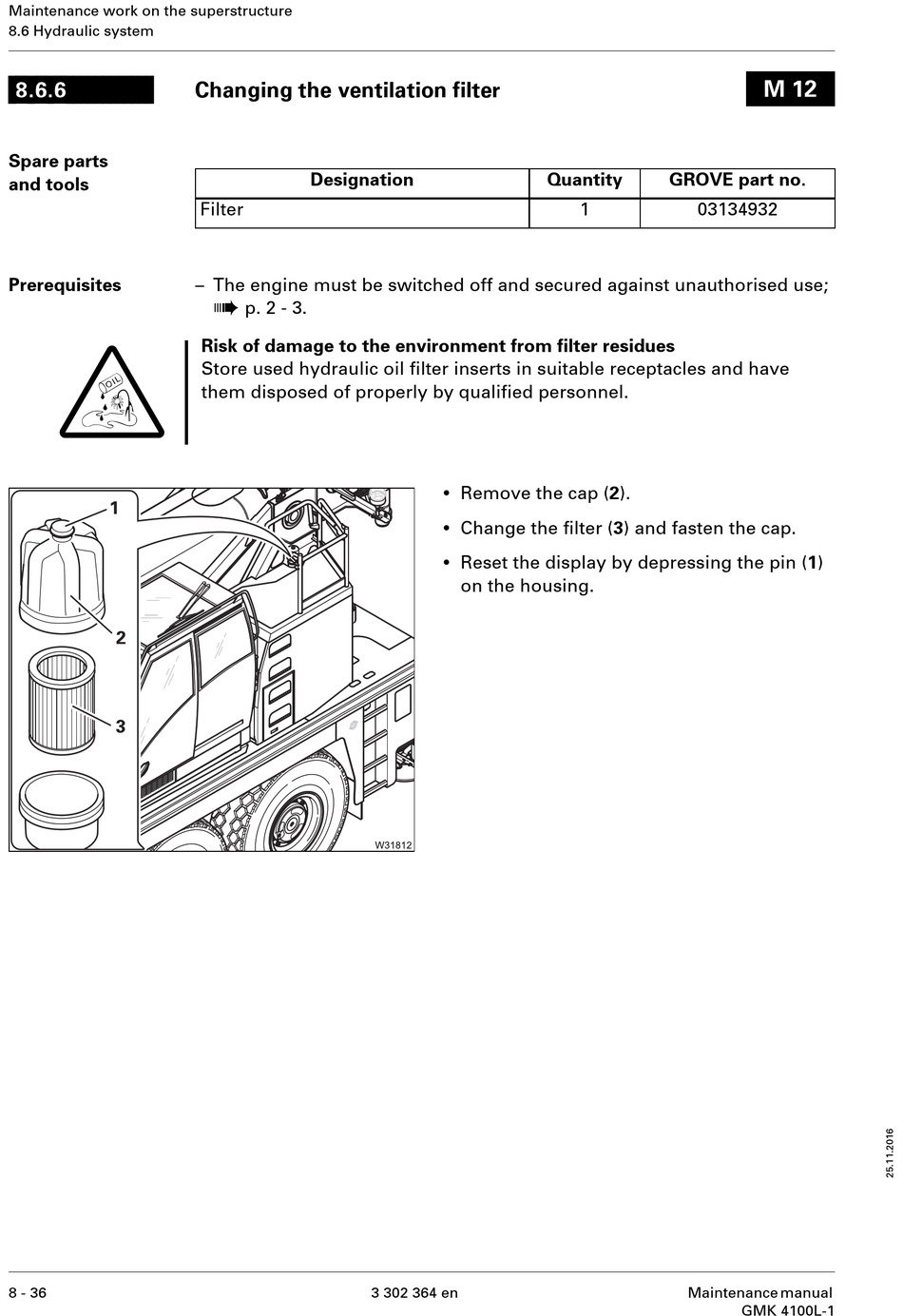

Changing the ventilation filter

Designation
Filter
– The engine must be switched off and secured against unauthorised use;
à
p. 2 - 3.
Risk of damage to the environment from filter residues
Store used hydraulic oil filter inserts in suitable receptacles and have
them disposed of properly by qualified personnel.
•
Remove the cap (2).
•
Change the filter (3) and fasten the cap.
•
Reset the display by depressing the pin (1)
on the housing.
3 302 364 en
Quantity GROVE part no.
1 03134932
Maintenance manual
M 12
GMK 4100L-1
