Maintenance manual
GMK5250L

Bleeding the central lubrication system

If the grease container is empty or contains bubbles, you must bleed the
central lubrication system.

Triggering intermediate lubrication

Intermediate lubrication should be activated:
– after high pressure cleaning,
– to check the lubrication system at all lubricating points.

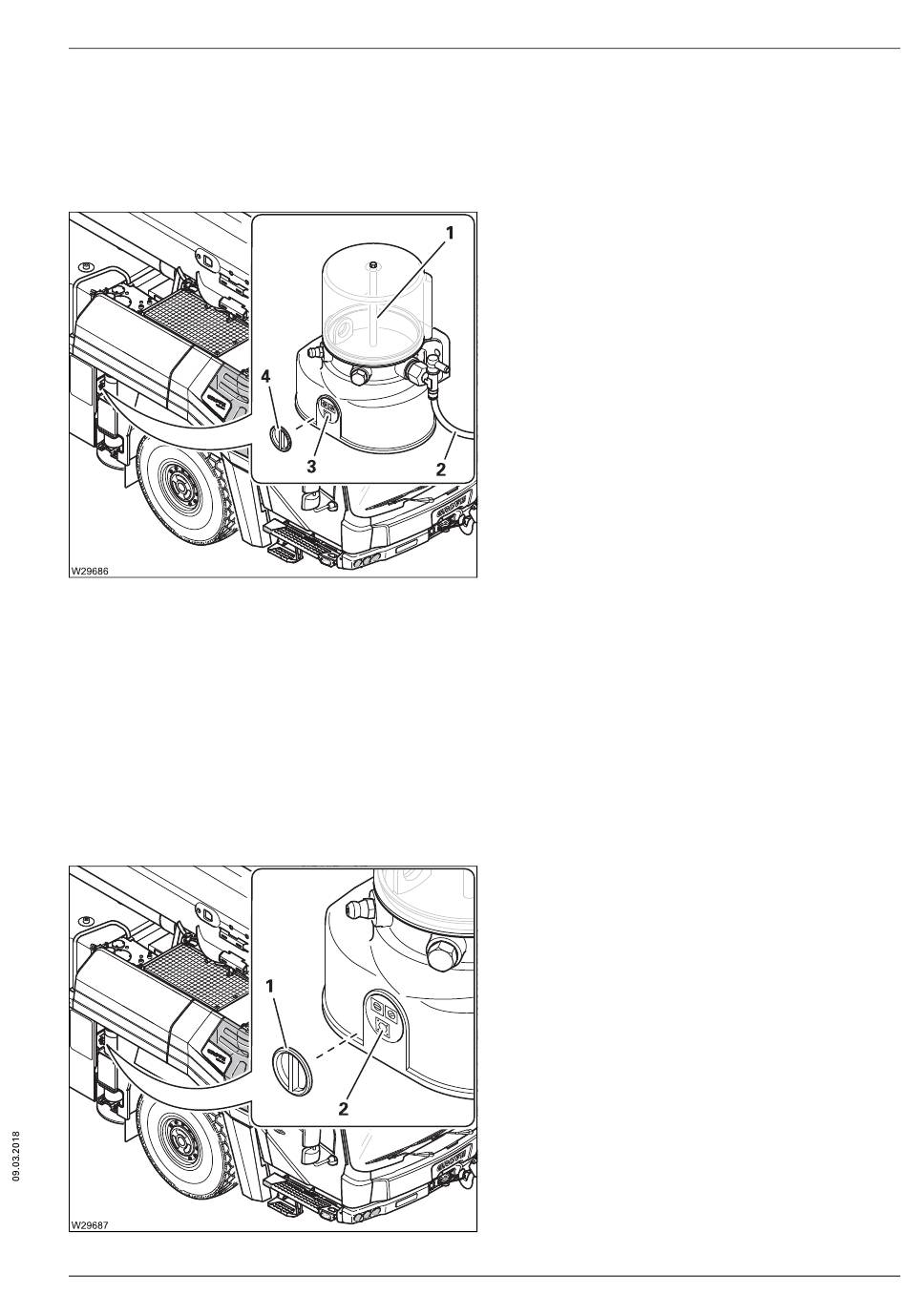

The grease container (1) is full.
•
Loosen the lubricating pipe at the connec-
tion (2).
•
Switch on the ignition.
•
Remove the cap (4).
•
Press the button (3) for approx. 2 seconds.
Repeat the procedure until the grease flow-
ing from the connection (2) no longer con-
tains any bubbles.
•
Bolt the cover (4) on.
•
Fasten the lubricating pipe at connection (2).
•
Remove any grease that emerges.
•
Switch on the ignition.
•
Remove the cap (1).
•
Press the button (2) for approx. 2 seconds
once.
An intermediate lubrication cycle will be trig-
gered which lasts approx. 3 minutes. Check
whether grease is applied to all lubricating
points (steering arms on the 1
axle lines).
•
Bolt the cover (1) on.
•
Turn off the ignition and remove any excess
grease.
3 302 744 en
Maintenance work on the carrier
7.16 Central lubrication system
st th
, 4 and 5
th
7 - 121
