Triggering Intermediate Lubrication - Manitowoc GROVE GMK4090 Maintenance Manual

Maintenance work on the carrier
7.16 Central lubrication system
7.16.3
7 - 112

Triggering intermediate lubrication

Intermediate lubrication should be activated:
– after high pressure cleaning,
– to check the lubrication system at all lubricating points.
•
Switch on the ignition.
•

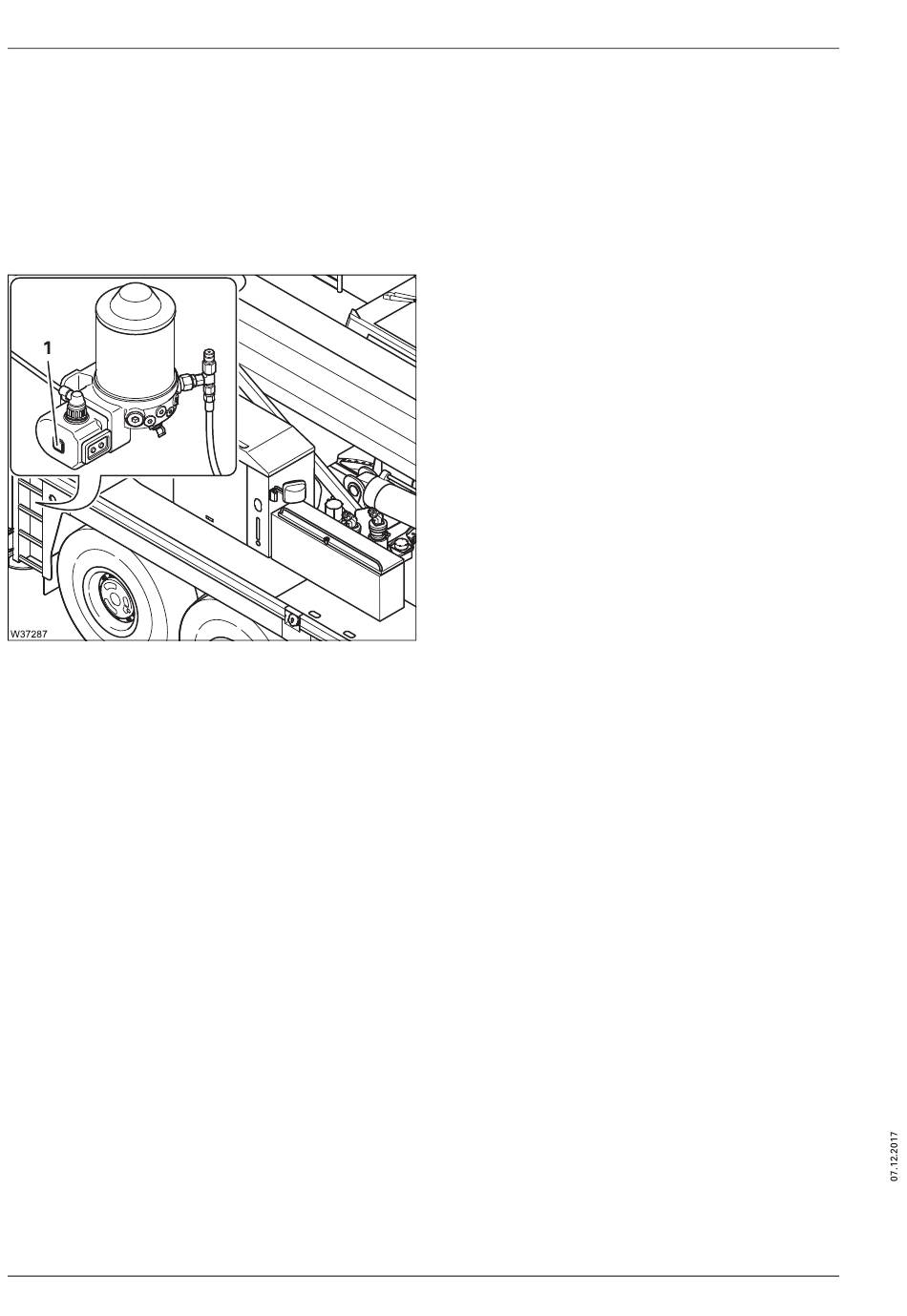

Press the button (1) once.
An intermediate lubrication cycle will be trig-
gered which lasts about two minutes. Check
that grease is escaping at all lubricating points
(steering arms on the 1st, 2nd, 3rd, and 4th
axle lines).
•
Switch off the ignition and remove any
excess grease.
3 302 649 en Maintenance manual
GMK4090
