Accessories
10.3 Mounting frame
①
Bolts for mounting onto the electrical cabinet panel

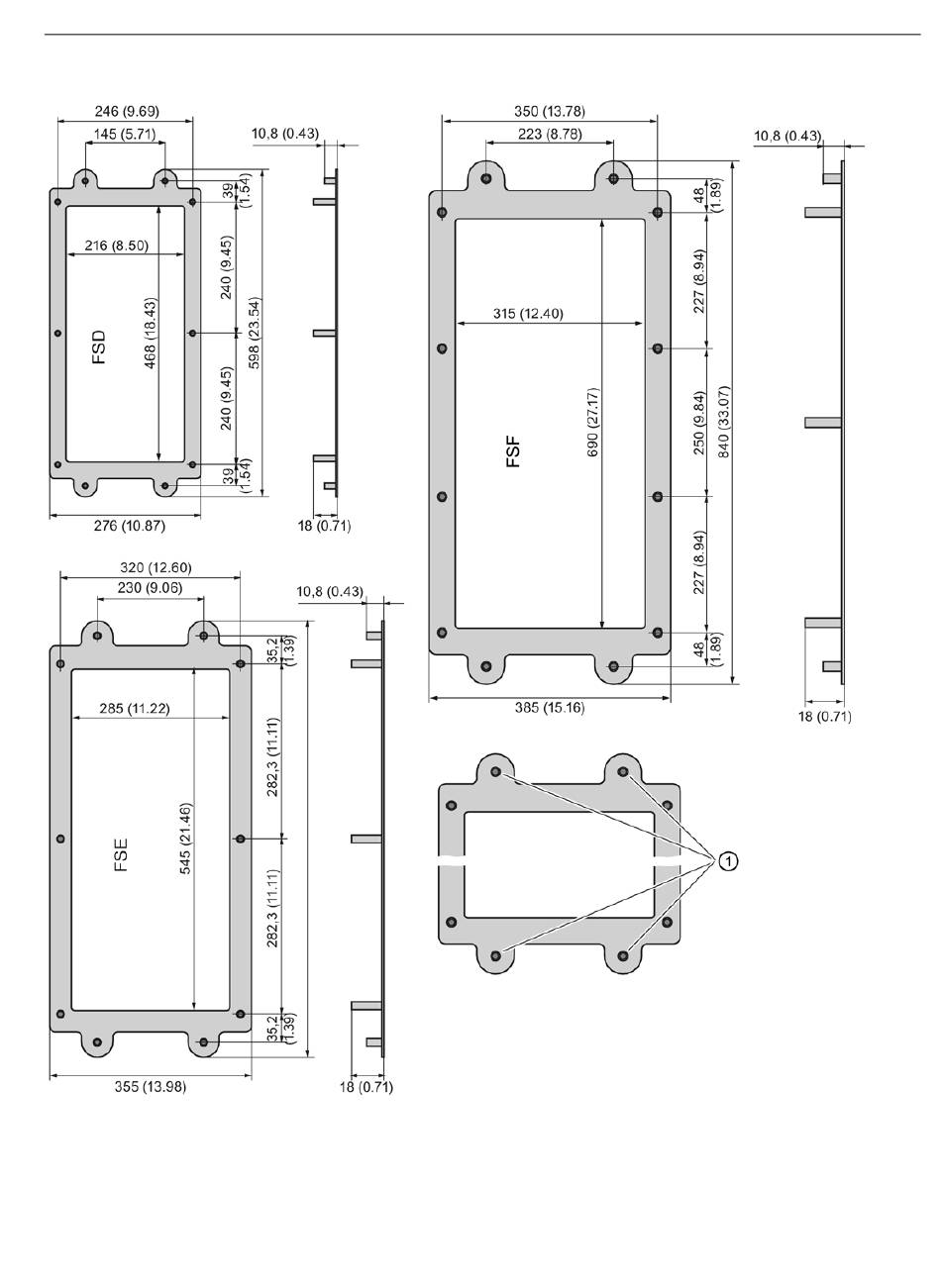

Figure 10-15 Dimension drawing of mounting frame, frame sizes FSD to FSF, all data in mm and (inches)
AC Drive
361
Manual, 06/2019, 6SL3097-5AL00-0BP1
