Motor-side power components
7.2 Chassis
dV/dt filter compact plus Voltage Peak Limiter, type 2

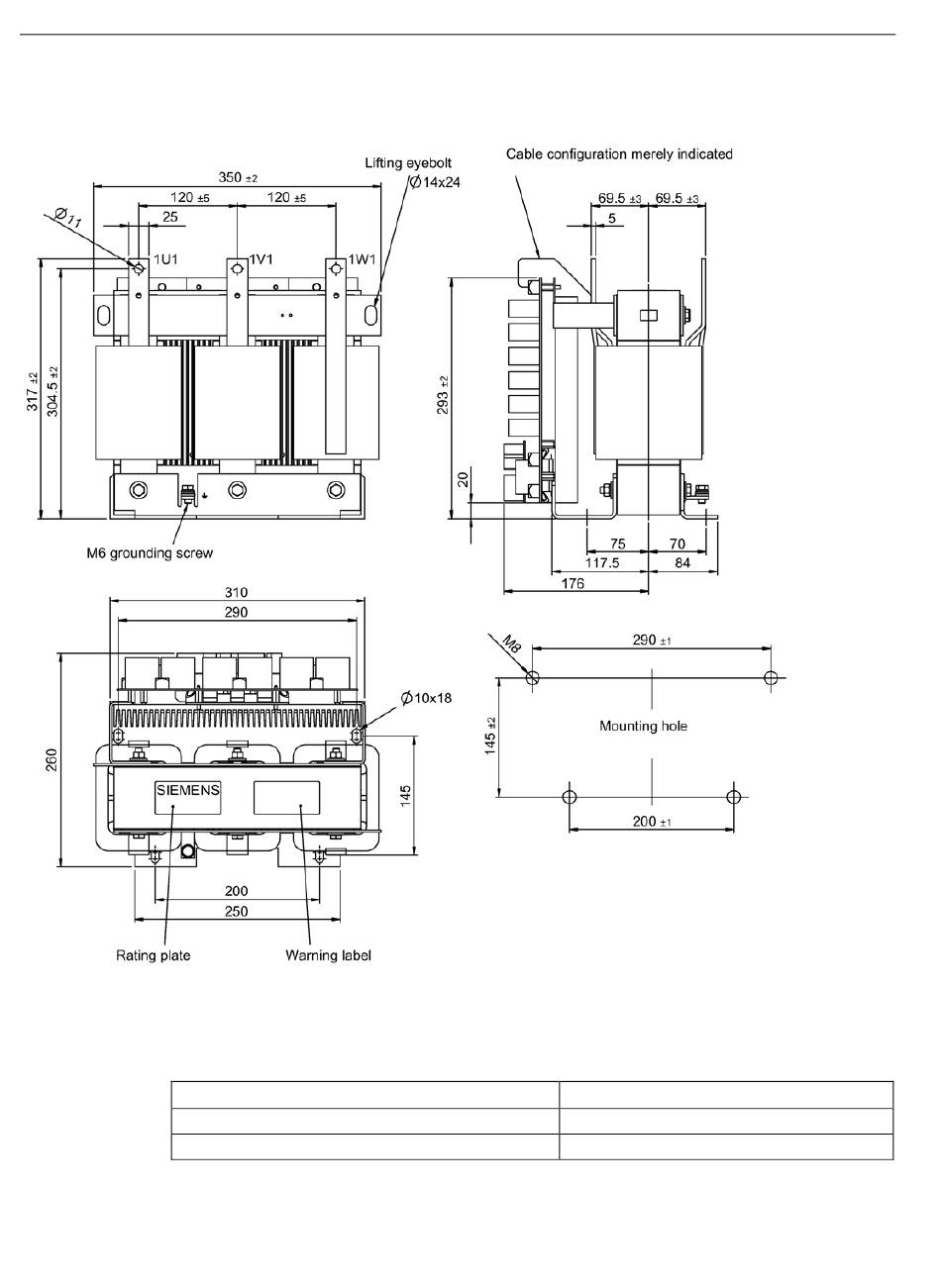

Figure 7-19
Dimension drawing of dV/dt filter compact plus Voltage Peak Limiter, type 2
Table 7- 20
dV/dt filter compact plus Voltage Peak Limiter
6SL3000-2DE32-6EA0
6SL3000-2DE35-0EA0
220
Assignment of the dV/dt filter compact plus Voltage Peak Limiter to the dimension
drawings
Dimension drawing type
Type 1
Type 2
Manual, 06/2019, 6SL3097-5AL00-0BP1
AC Drive
