HT67F2350/HT67F2360
HT67F2370/HT67F2390
Advanced A/D Flash MCU with LCD & EEPROM
80 79 78 77 76 75 74 73 72 71 70 69 68 67 66 65 6463 62 61
1
PB0/STCK2/C0X/SEG32
2
PB1/PTCK3/SEG31
3
PA0/SEG30/ICPDA/OCDSDA
PA2/SEG29/ICPCK/OCDSCK 4
5
PB4/C1X/SEG28
PB3/PTP2I/PTP2/SEG27 6
PA1/INT0/SCS/SEG26 7
8
PA3/INT1/SDO/SEG25
PA4/INT2/SDI/SDA/SEG24 9
PA5/INT3/SCK/SCL/SEG23 10
11
PA6/INT0/RX0/SEG22
12
PA7/INT1/TX0/SEG21
13
PH0/PTP4I/PTP4/SEG20
PH1/PTP5I/PTP5/SEG19 14
15
PH6/PTP6I/PTP6/SEG18
16
PH7/PTP7I/PTP7/SEG17
17
PB2/PTP3I/PTCK2/PTP3/SEG16
18
PF0/SCS/SEG15
19
PF1/SDO/SEG14
PF2/SDI/SDA/SEG13 20
21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 3738 39 40
Rev. 1.60
HT67F2360/HT67V2360

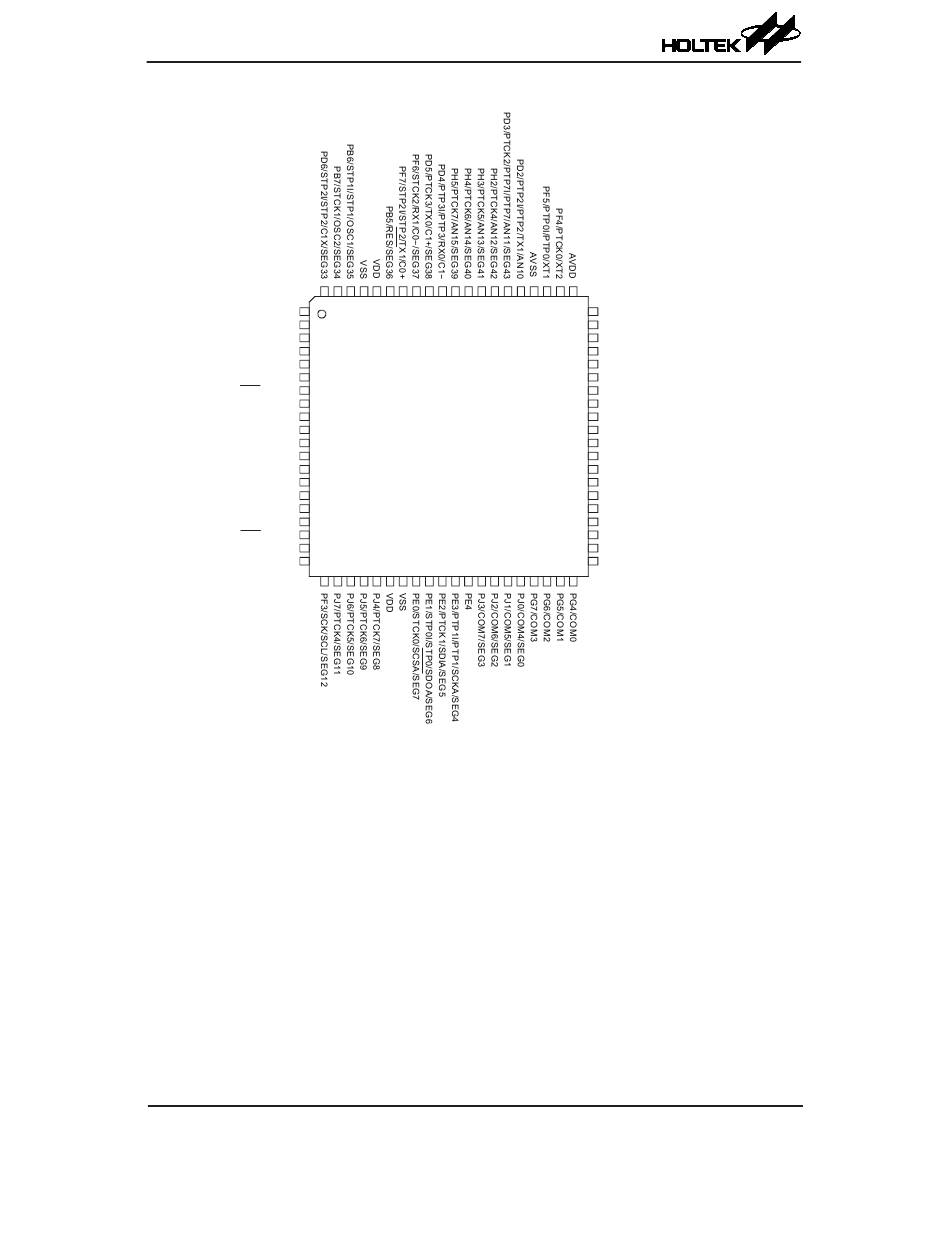

80 LQFP-A
11
PD1/STCK1/RX1/AN9/SEG44
60
59
PD0/INT2/STP1I/STP1/AN8/SEG45
58 PC7/INT3/STCK0/PTP6I/PTP6/AN7/SEG46
57 PC6/STP0I/STP0/AN6/SEG47
56 PC5/PTCK1/PTP5I/PTP5/AN5/SEG48
55 PC4/PTP1I/PTP1/AN4/SEG49
PC3/PTCK0/PTP4I/PTP4/AN3/SEG50
54
PC2/PTP0I/PTP0/AN2/SEG51
53
PC1/C0X/VREF/AN1
52
PC0/VREFI/AN0/SEG52
51
PLCD
50
VMAX
49
V1
48
47 PE7/V2/SEG53
46 PE6/C1/SEG54
PE5/C2/SEG55
45
PG0/COM0
44
PG1/COM1
43
PG2/COM2
42
41 PG3/COM3
